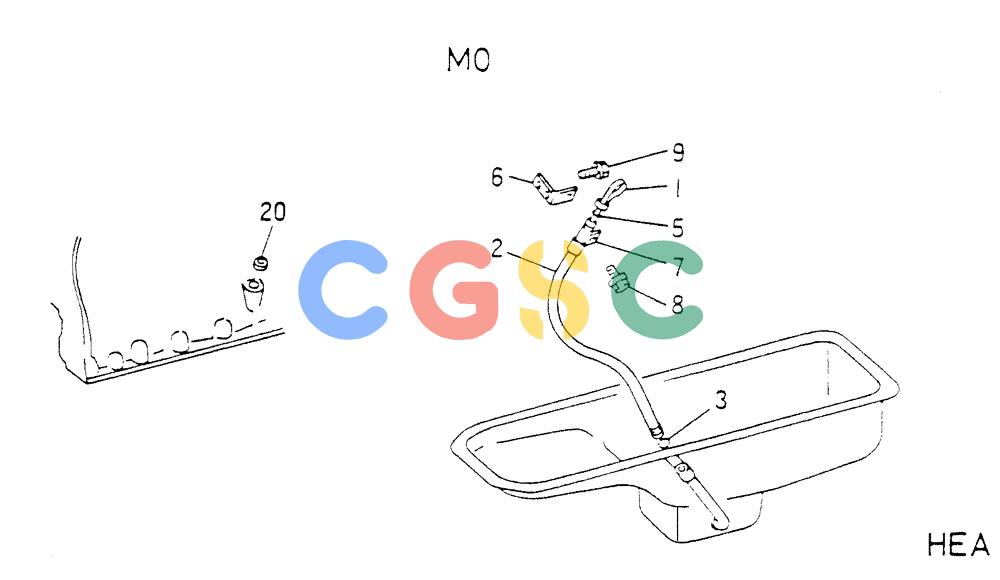

神钢零件查询(6D14-T) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (01-043) - OIL FILLER & OIL LEVEL GAUGE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
639 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME064436 | [1] | OIL PRESSURE GAUGE | KOBGAUGE,OIL LEVEL |
| 2. | VAME047227 | [1] | OIL GUIDE GUIDE,OIL LEVEL | OIL GUIDE GUIDE,OIL LEVEL |
| 3. | VAMF520007 | [1] | O-RING | KOBO-RING 11 |
| 5. | VAMF520005 | [1] | O-RING | KOBO-RING 10 Superseded by part number: 132399A1 |
| 6. | VAME047228 | [1] | STAY,OIL LEVEL GAUGE | |
| 7. | VAMH021015 | [1] | CLAMP | KOBCLIP Superseded by part number: 132398A1 |
| 8. | VAMF140005 | [1] | BOLT | KOBBOLT,FLANGE 6X16 |
| 9. | VAMF140003 | [2] | BOLT | KOBBOLT,FLANGE 6X12 |
| 20. | VAMH037755 | [1] | CAP,SEALING 13 | |
