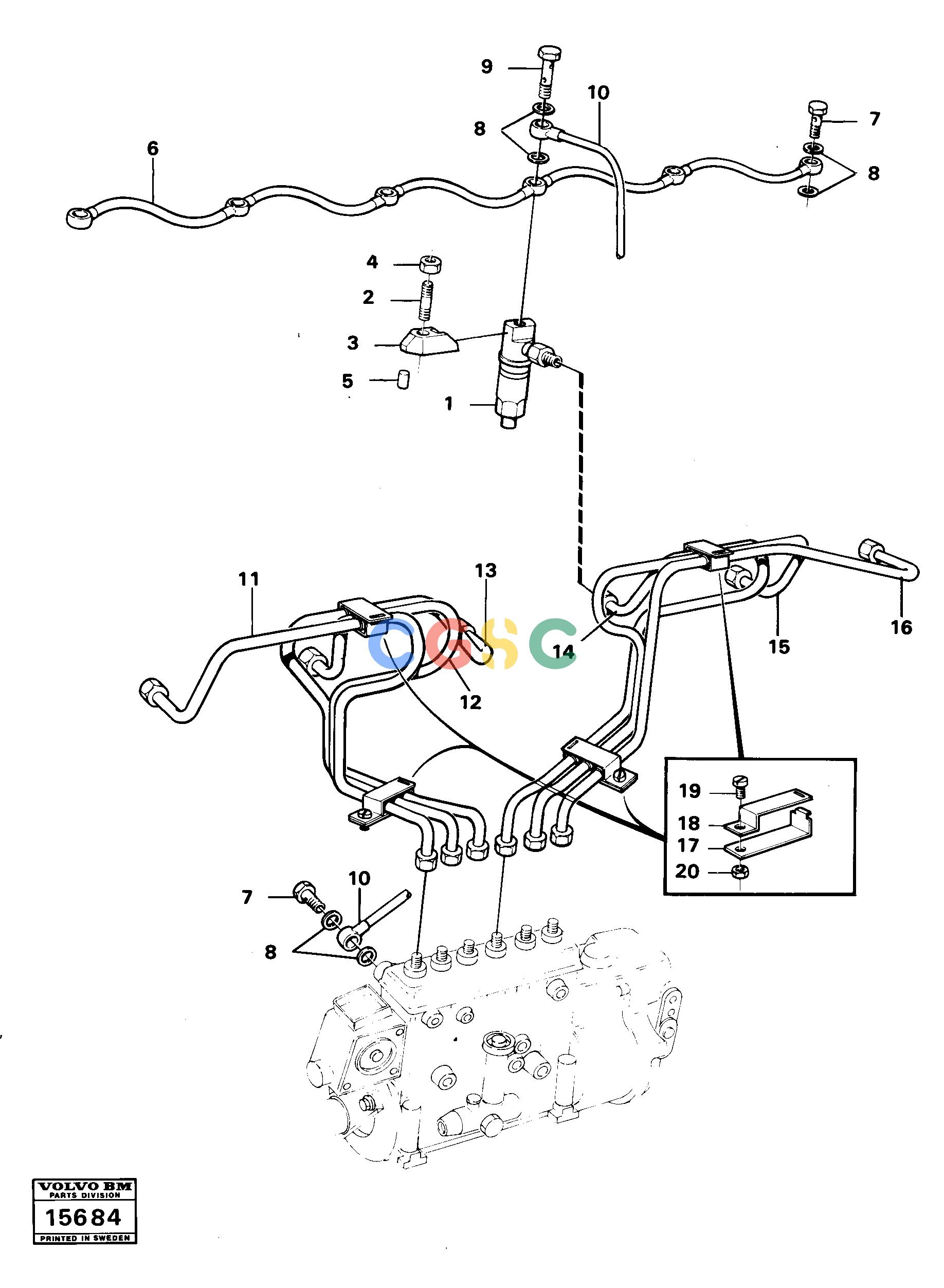

沃尔沃零件查询5350 Fuel pipes-injector5350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
167 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE466401
|
[6] |
Pin
|
|
| 6. |
VOE466896
|
[1] |
Leak-off line
|
|
| 7. |
VOE7074033
|
[6] |
Hollow screw
|
|
| 8. |
VOE947620
|
[14] |
Gasket
|
|
| 9. |
VOE7074034
|
[1] |
Hollow screw
|
|
| 1. |
VOE466891
|
[6] |
Injector
|
|
| 10. |
VOE11030618
|
[1] |
Leak-off Line
|
|
| 11. |
VOE466411
|
[1] |
Delivery pipe
|
MO -130567
|
| |
VOE471151
|
[1] |
Delivery pipe
|
MO 130554,130568-
|
| 12. |
VOE466412
|
[1] |
Delivery pipe
|
MO -130567
|
| |
VOE471152
|
[1] |
Delivery pipe
|
MO 130554,130568-
|
| 13. |
VOE466413
|
[1] |
Delivery pipe
|
MO -130567
|
| |
VOE471153
|
[1] |
Delivery pipe
|
MO 130554,130568-
|
| 14. |
VOE466414
|
[1] |
Delivery pipe
|
MO -130567
|
| |
VOE471154
|
[1] |
Delivery pipe
|
MO 130554,130568-
|
| 15. |
VOE466415
|
[1] |
Delivery pipe
|
MO -130567
|
| |
VOE471155
|
[1] |
Delivery pipe
|
MO 130554,130568-
|
| 16. |
VOE466416
|
[1] |
Delivery pipe
|
MO -130567
|
| |
VOE471156
|
[1] |
Delivery pipe
|
MO 130554,130568-
|
| 17. |
VOE8194352
|
[4] |
Clamp
|
|
| 18. |
VOE8194352
|
[4] |
Clamp
|
|
| 19. |
VOE956092
|
[4] |
Cross recessed screw
|
|
| 2. |
VOE466400
|
[6] |
Stud
|
|
| 20. |
VOE13955781
|
[4] |
Nut
|
|
| 3. |
VOE469797
|
[6] |
Nozzle retainer
|
|
| 4. |
VOE13971068
|
[6] |
Hexagon nut
|
|
