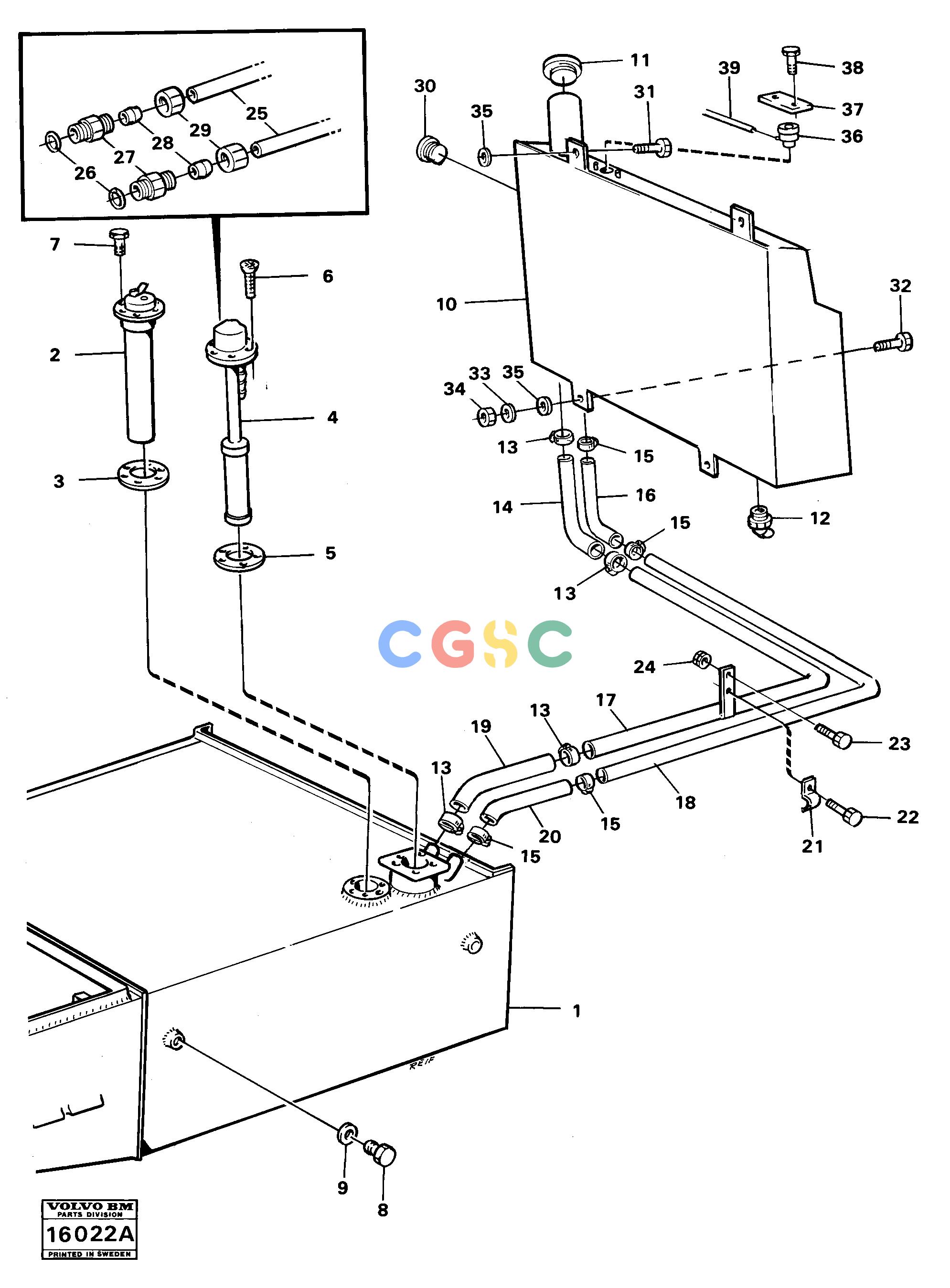

沃尔沃零件查询5350 Fuel tank5350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
261 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE7089865
|
[0001] |
Gasket
|
|
| 6. |
VOE956186
|
[0005] |
Cross recessed sunk screw
|
|
| 7. |
VOE946934
|
[0006] |
Flange screw
|
SER NO -1194
|
| |
VOE955892
|
[0006] |
Plain washer
|
SER NO 1195-
|
| |
VOE13955271
|
[0006] |
Screw
|
SER NO 1195-
|
| 8. |
VOE960631
|
[0001] |
Plug
|
|
| 9. |
VOE948883
|
[0001] |
Gasket
|
|
| 1. |
|
[0001] |
Fender
|
SEE GROUP 71
|
| 10. |
VOE4821512
|
[0001] |
Fuel tank
|
CAB -1195
|
| |
VOE4864308
|
[0001] |
Fuel tank
|
CAB 1196-1616
|
| |
VOE11053471
|
[0001] |
Fuel tank
|
CAB 1800-
|
| 11. |
VOE4821033
|
[0001] |
Cover
|
|
| 12. |
VOE7087502
|
[0001] |
Drain Cock
|
|
| 13. |
VOE943475
|
[0004] |
Hose clamp
|
SER NO -1616
|
| |
VOE13943474
|
[0004] |
Hose clamp
|
SER NO -CAB 1800-
|
| 14. |
VOE4737852
|
[REQ] |
Hose
|
L=220 SER NO -1616
|
| |
VOE14016472
|
[REQ] |
Oil hose
|
L=500 CAB 1800-
|
| 15. |
VOE943471
|
[0004] |
Hose clamp
|
SER NO -1616
|
| |
VOE943479
|
[0004] |
Hose clamp
|
TILLV NR.-CAB 1800-
|
| 16. |
VOE941522
|
[REQ] |
Hose
|
L=300 SER NO -1616
|
| |
VOE4940771
|
[REQ] |
Rubber hose
|
L=150 CAB 1800-
|
| 17. |
VOE4737719
|
[0001] |
Tube
|
CAB -1616
|
| 18. |
VOE4737675
|
[0001] |
Tube
|
CAB -1616
|
| 19. |
VOE4737852
|
[REQ] |
Hose
|
L=360 SER NO -1616
|
| |
VOE14016472
|
[REQ] |
Oil hose
|
L=590 SER NO 1800-
|
| 2. |
VOE4740537
|
[0001] |
Tank unit
|
|
| 20. |
VOE941522
|
[REQ] |
Hose
|
L=380 SER NO -1616
|
| |
VOE4940771
|
[REQ] |
Rubber hose
|
L=510 TILLV NR1800-
|
| 21. |
VOE952628
|
[0002] |
Clamp
|
CAB -1616
|
| |
VOE941788
|
[0002] |
Clamp
|
CAB 1800-
|
| 22. |
VOE945970
|
[0002] |
Hexagon screw
|
CAB -1616
|
| 23. |
VOE946934
|
[0002] |
Flange screw
|
CAB -1616
|
| 24. |
VOE13949278
|
[0002] |
Flange lock nut
|
CAB -1616
|
| 25. |
VOE4737702
|
[0002] |
Fuel hose
|
|
| 26. |
VOE957178
|
[0002] |
Gasket
|
|
| 27. |
VOE941754
|
[0002] |
Nipple
|
|
| 28. |
VOE980781
|
[0002] |
Ferrule
|
|
| 29. |
VOE956983
|
[0002] |
Fitting nut
|
|
| 3. |
VOE4708245
|
[0001] |
Gasket
|
|
| 30. |
VOE11063114
|
[0001] |
Level Inspection Glass
|
|
| 31. |
VOE13970956
|
[0002] |
Hexagon screw
|
CAB -1105
|
| |
VOE13970958
|
[0002] |
Hexagon screw
|
CAB 1106-
|
| 32. |
VOE946441
|
[0002] |
Flange screw
|
CAB -1105
|
| |
VOE60113094
|
[0002] |
Flange screw
|
CAB 1106-
|
| 33. |
VOE976945
|
[0002] |
Washer
|
|
| 34. |
VOE13971098
|
[0002] |
Flange nut
|
|
| 35. |
VOE13948093
|
[0004] |
Washer
|
|
| 36. |
VOE1578699
|
[0001] |
Cap
|
CAB 1196-1616
|
| |
VOE4940398
|
[0001] |
Cover
|
CAB 1800-
|
| 37. |
VOE4864306
|
[0001] |
Cover Plate
|
CAB 1196-1616
|
| 38. |
VOE13947760
|
[0002] |
Screw
|
CAB 1196-
|
| 39. |
VOE192034
|
[0600] |
Rubber hose
|
CAB 1196-
|
| 4. |
VOE1502874
|
[0001] |
Strainer
|
|
