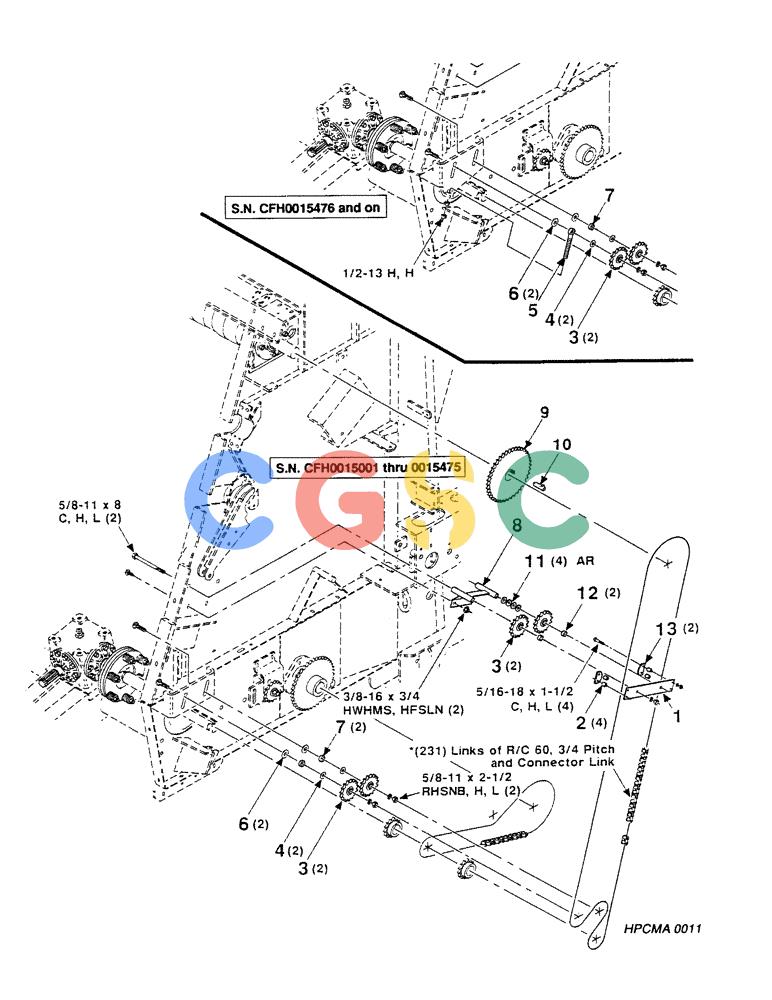

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (064) - DRIVE, UPPER, ROLLER ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
371 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700116044
|
[1] |
SUPPORT
|
HFI
|
| 2. |
6827794
|
[4] |
SPACER
|
CAS
|
| 3. |
541857R92
|
[4] |
SPROCKET,15T
|
IH
- Idler, 15-Tooth
|
| 4. |
705582
|
[2] |
WASHER
|
CAS
5/8 Hardened Plain Washer Superseded by part number: 396-21066, 396-21066, NLS
|
| 5. |
700119665
|
[1] |
BOLT
|
IH
Drawbolt (S.N. CFH0015476 and on)
|
| 6. |
705566
|
[2] |
WASHER
|
IH
3/4 Hardened Plain Washer
|
| 7. |
6229256
|
[1] |
SPACER
|
IH
|
| 8. |
700116054
|
[1] |
SUPPORT
|
HFI
- Idler
|
| 9. |
6867659
|
[1] |
SPROCKET ASSY.
|
CAS
Sprocket - 60B, 40-Tooth
|
| 10. |
861088
|
[1] |
BUCKET TOOTH KEY
|
IH
1/2 x 2 Gib Key
|
| 11. |
52175
|
[1] |
BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L
|
CAS
5/8 x 18 Gauge Machinery Bushing
|
| 12. |
6529705
|
[2] |
BUSHING
|
CAS
Spacer
|
| 13. |
700116041
|
[2] |
GUIDE
|
HFI
|
| . . |
7701717
|
[4] |
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5
|
CAS
5/16-18 x 1-1/2 C Superseded by part number: 88275
|
| . . |
873836
|
[2] |
BOLT
|
CAS
5/8-11 x 8 C Superseded by part number: 280743
|
| . . |
7870181
|
[2] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5
|
CAS
5/8-11 x 2-1/2 RHSNB Superseded by part number: 280742
|
| . . |
7883374
|
[2] |
SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8-16 x 3/4 HWHMS Superseded by part number: 255918
|
