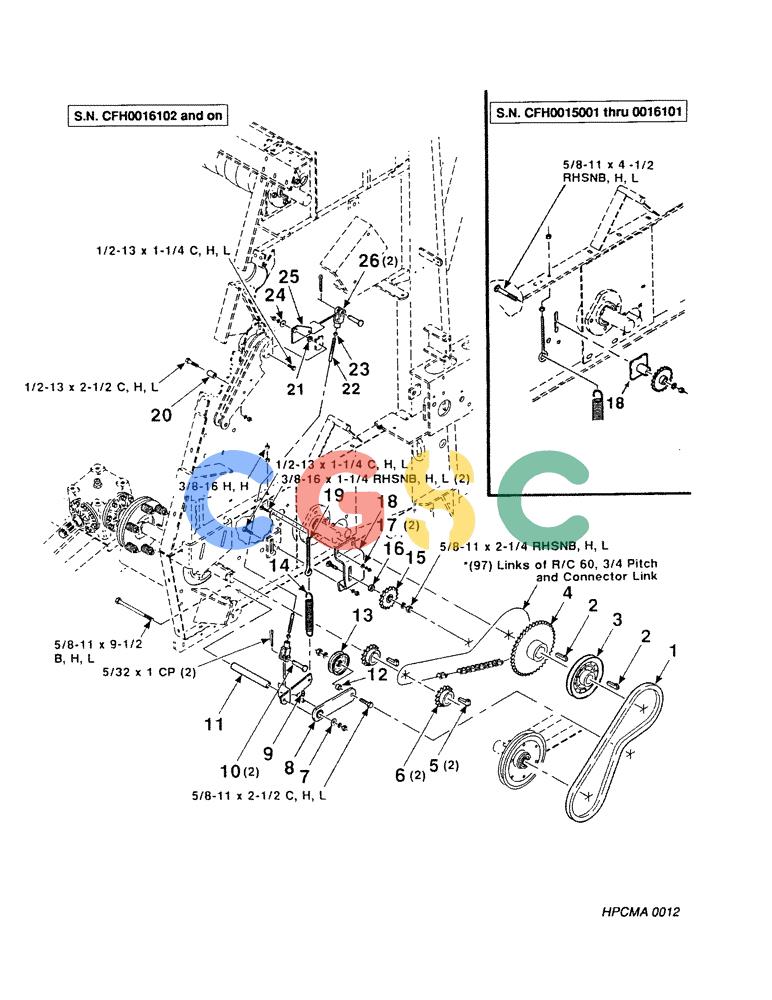

| 1. |
57596
|
[1] |
BELT
|
L
V-Belt
|
| 2. |
861088
|
[2] |
BUCKET TOOTH KEY
|
IH
1/2 x 2 Gib Key
|
| 3. |
700116042
|
[1] |
SHEAVE
|
CAS
|
| 4. |
6867659
|
[1] |
SPROCKET ASSY.
|
CAS
Sprocket - 60-P, 40-Tooth
|
| 5. |
61572
|
[2] |
BUCKET TOOTH KEY
|
IH
3/8 x 1-3/4 Gib Key
|
| 6. |
7850720
|
[2] |
PINION
|
L
Sprocket - 60-P, 14-Tooth
|
| 7. |
705582
|
[1] |
WASHER
|
CAS
5/8 Hardened Plain Washer Superseded by part number: 396-21066, 396-21066, NLS
|
| 8. |
700116045
|
[1] |
LEVER
|
HFI
- Idler
|
| 9. |
77032
|
[1] |
FITTING
|
CAS
1/4-28 Straight Zerk Superseded by part number: 88775
|
| 10. |
63685
|
[2] |
BELT, TRANSMISSION
|
NNA
1/2 x 1-1/2 Clevis Pin Superseded by part number: 427-8150
|
| 11. |
700116050
|
[1] |
PIVOT ASSY.,25.4 mm OD, 204 mm Length
|
HFI
Tube Pivot
|
| 12. |
254409
|
[1] |
SPACER
|
HFI
|
| 13. |
662958R91
|
[1] |
PULLEY
|
IH
- Idler
|
| 14. |
858167
|
[1] |
SPRING
|
L
|
| 15. |
87726
|
[1] |
NUT
|
NNA
Sprocket - Idler, 60-P, 15-Tooth Superseded by part number: 541857R92
|
| 16. |
6229256
|
[1] |
SPACER
|
IH
(S.N. CFH0016102 and on)
|
| 17. |
705533
|
[2] |
WASHER
|
NNA
3/8 Hardened Plain Washer Superseded by part number: 496-11041, 496-11041, 80702
|
| 18. |
700116039
|
[1] |
SUPPORT
|
CAS
Mounting - Idler (S.N. CFH0015001 thru 0016101)
|
| . . |
700126768
|
[1] |
MOUNTING PARTS
|
HFI
Mounting Idler (S.N. CFH0016102 and on)
|
| 19. |
51200285
|
[1] |
SCREW
|
CAS
3/8-16 Drawbolt
|
| 20. |
6234710
|
[1] |
SPACER
|
CAS
|
| 21. |
6582696
|
[1] |
SPACER
|
CAS
Bushing
|
| 22. |
700116052
|
[1] |
ROD,THREADED
|
IH
Rod
|
| 23. |
704304
|
[1] |
NUT
|
CAS
3/8-24 Hex Nut Superseded by part number: 86509310
|
| 24. |
700709605
|
[1] |
WASHER,1/2"
|
CAS
1/2 Wide Plain Washer Superseded by part number: 80700
|
| 25. |
700116051
|
[1] |
PLATE
|
HFI
|
| 26. |
766691
|
[2] |
SPARE PART
|
NNA
Superseded by part number: 51200163, 51200163, NLS
|
| . . |
7701188
|
[1] |
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
1/2-13 x 1-1/4 C Superseded by part number: 87670
|
| . . |
70922526
|
[1] |
SCREW
|
CMI
1/2-13 x 2-1/2 C Superseded by part number: 20987
|
| . . |
7701659
|
[1] |
BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5
|
CAS
5/8-11 x 2-1/2 C Superseded by part number: 280233
|
| . . |
7773484
|
[1] |
BOLT,Hex, 5/8" - 11 x 9 1/2", Gr 5
|
CAS
5/8-11 x 9-1/2 B Superseded by part number: 413-10152
|
| . . |
700054
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
3/8-16 x 1-1/4 RHSNB Superseded by part number: 86508773
|
| . . |
7870173
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5
|
CAS
5/8-11 x 2-1/4 RHSNB Superseded by part number: 111-622
|
| . . |
7870249
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5
|
CAS
5/8-11 x 4-1/2 RHSNB Superseded by part number: 9602207
|
