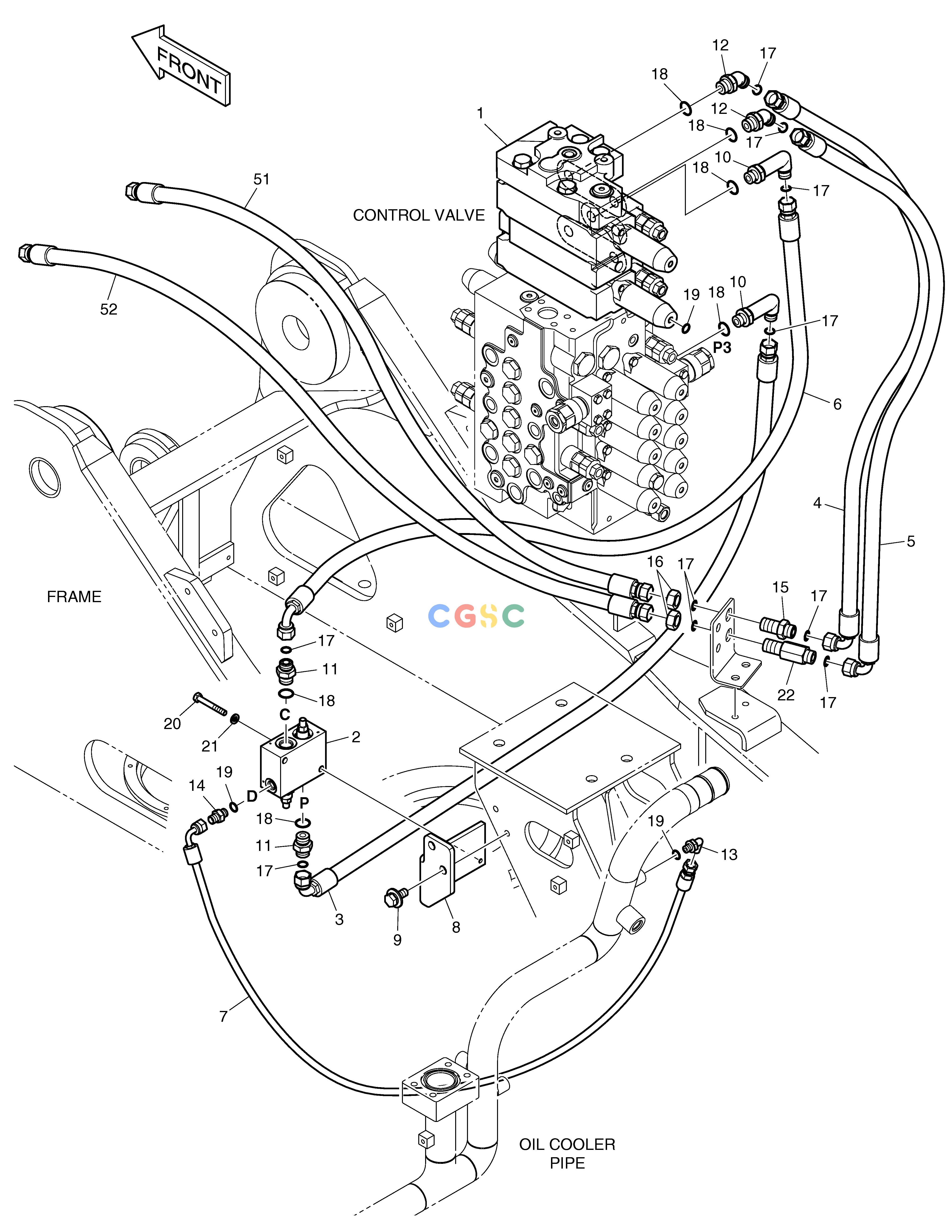

斗山零件查询MAIN PIPING - ROTATING (ARTI OR DOZER) DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
754 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1016148B
|
[-] |
MAIN PIPING;PERO & (DO OR ARTI)
|
|
| 1. |
K1013539A
|
[1] |
CONTROL VALVE(ARTI-ROTATING)
|
|
| 10. |
2181-2815D11
|
[2] |
ELBOW
|
|
| 11. |
2181-4133D3
|
[2] |
ADAPTER
|
|
| 12. |
2181-2816D4
|
[2] |
ELBOW
|
|
| 13. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 14. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 15. |
181-00128D3
|
[1] |
ADAPTER
|
|
| 16. |
121-00010D5
|
[2] |
NUT
|
|
| 17. |
S8030081
|
[10] |
O-RING
|
|
| 18. |
S8000181
|
[6] |
O-RING
|
|
| 19. |
S8000111
|
[3] |
O-RING
|
|
| 2. |
426-00028
|
[1] |
VALVE;PACKAGE
|
|
| 20. |
S0556566
|
[2] |
BOLT
|
|
| 21. |
S5102503
|
[2] |
. WASHER
|
|
| 22. |
DS2415014
|
[1] |
ADAPTER
|
|
| 3. |
DS2013924
|
[1] |
HOSE
|
|
| 4. |
DS2013919
|
[1] |
HOSE
|
|
| 5. |
DS2013919
|
[1] |
HOSE
|
|
| 51. |
DS2011292
|
[1] |
HOSE
|
|
| 52. |
DS2011311
|
[1] |
HOSE
|
|
| 6. |
DS2013925
|
[1] |
HOSE
|
|
| 7. |
DS2093146
|
[1] |
HOSE
|
|
| 8. |
K1027378A
|
[1] |
BRACKET
|
|
| 9. |
DS0025018
|
[2] |
BOLT
|
|
