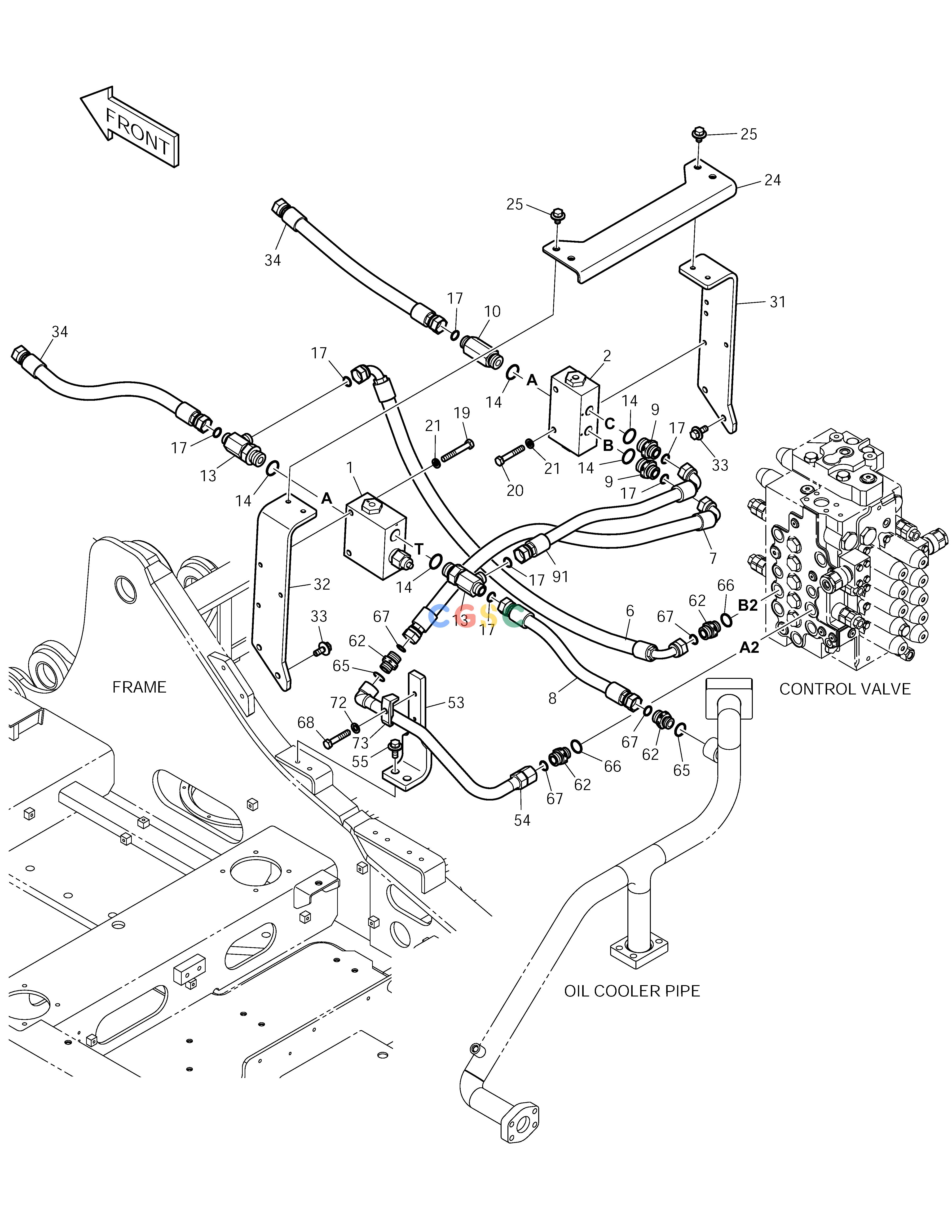

斗山零件查询MAIN PIPING - TWO WAY DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
750 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1027395A
|
[-] |
MAIN PIPING;PE3C
|
|
| 1. |
426-00248A
|
[1] |
VALVE;SELECT
|
|
| 10. |
DS2232121
|
[1] |
ADAPTER
|
|
| 13. |
2181-2293D2
|
[2] |
TEE
|
|
| 14. |
S8000291
|
[5] |
O-RING
|
|
| 17. |
S8030121
|
[7] |
O-RING
|
|
| 19. |
S0561466
|
[2] |
BOLT
|
|
| 2. |
426-00249A
|
[1] |
VALVE;SELECT
|
|
| 20. |
S0561266
|
[2] |
BOLT
|
|
| 21. |
S5102703
|
[4] |
WASHER
|
|
| 24. |
K1016101
|
[1] |
BRACKET
|
|
| 25. |
DS0025019
|
[4] |
BOLT
|
|
| 31. |
K1027077
|
[1] |
BRACKET
|
|
| 32. |
K1027078
|
[1] |
BRACKET
|
|
| 33. |
DS0025020
|
[4] |
BOLT
|
|
| 34. |
DS2011687
|
[2] |
HOSE
|
|
| 53. |
K1013578
|
[1] |
BRACKET
|
|
| 54. |
K1016390A
|
[1] |
PIPE
|
|
| 55. |
DS0025020
|
[2] |
BOLT
|
|
| 6. |
DS2023325
|
[1] |
HOSE 1 3/16"-670L
|
|
| 62. |
2181-2627D1
|
[4] |
ADAPTER
|
|
| 65. |
S8000231
|
[2] |
O-RING
|
|
| 66. |
S8000241
|
[2] |
O-RING
|
|
| 67. |
S8030121
|
[4] |
O-RING
|
|
| 68. |
S0561066
|
[1] |
BOLT
|
|
| 7. |
DS2013914
|
[1] |
HOSE
|
|
| 72. |
S5010713
|
[1] |
WASHER;PLAIN
|
|
| 73. |
2124-1026D2
|
[1] |
CLAMP
|
|
| 8. |
DS2011538
|
[1] |
HOSE
|
|
| 9. |
2181-2627D15
|
[2] |
ADAPTER
|
|
| 91. |
DS2013915
|
[1] |
HOSE
|
|
