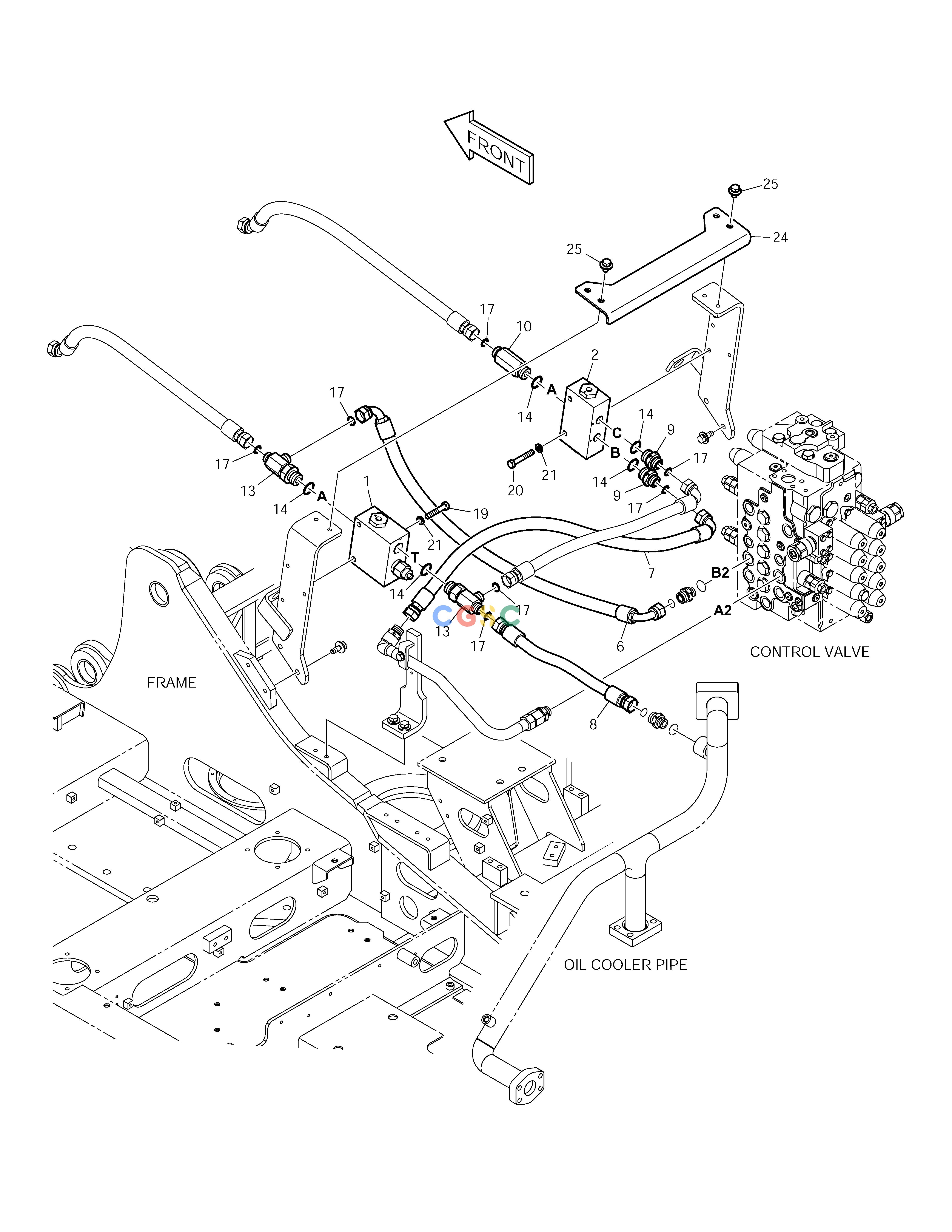

斗山零件查询MAIN PIPING - TWO WAY (ARTI) DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
858 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1027396A
|
[-] |
MAIN PIPING;PE3C(ARTI)
|
|
| 1. |
426-00248A
|
[1] |
VALVE;SELECT
|
|
| 10. |
DS2232121
|
[1] |
ADAPTER
|
|
| 13. |
2181-2293D2
|
[2] |
TEE
|
|
| 14. |
S8000291
|
[5] |
O-RING
|
|
| 17. |
S8030121
|
[7] |
O-RING
|
|
| 19. |
S0561466
|
[2] |
BOLT
|
|
| 2. |
426-00249A
|
[1] |
VALVE;SELECT
|
|
| 20. |
S0561266
|
[2] |
BOLT
|
|
| 21. |
S5102703
|
[4] |
WASHER
|
|
| 24. |
K1016101
|
[1] |
BRACKET
|
|
| 25. |
DS0025019
|
[4] |
BOLT
|
|
| 6. |
DS2023325
|
[1] |
HOSE 1 3/16"-670L
|
|
| 7. |
DS2013914
|
[1] |
HOSE
|
|
| 8. |
DS2011606
|
[1] |
HOSE
|
|
| 9. |
2181-2627D15
|
[2] |
ADAPTER
|
|
