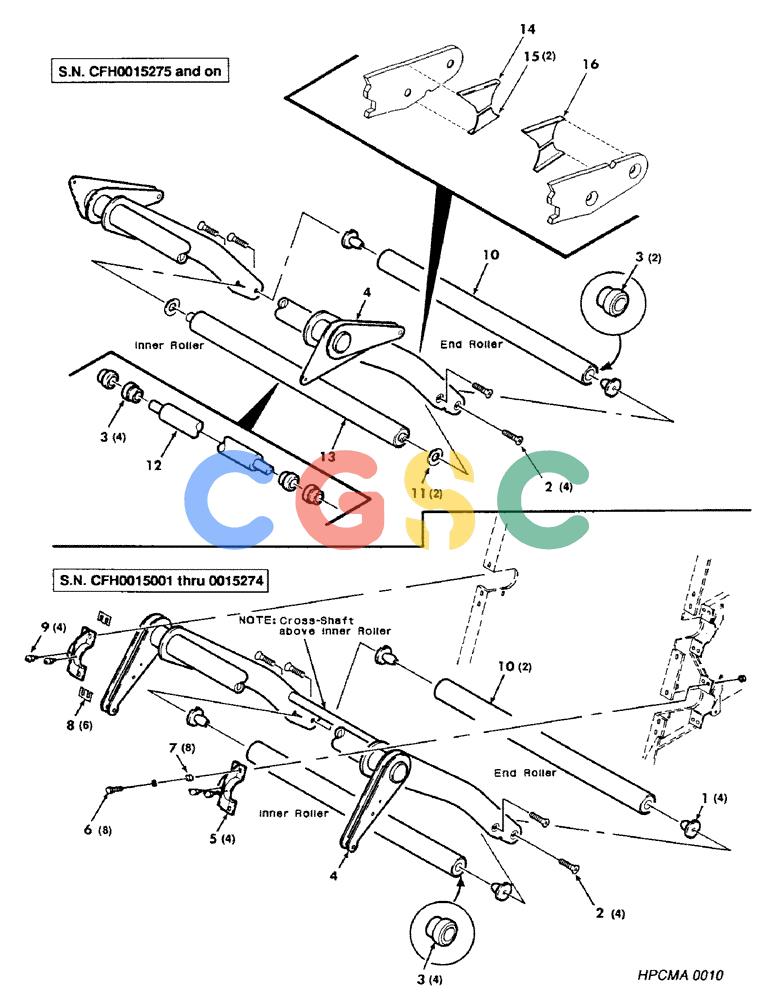

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (070) - BALE TENSION ROLLERS ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
311 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700100927
|
[2] |
HUB
|
L
- Roller
|
| 2. |
700707981
|
[4] |
SCREW,FLAT, 3/4" - 10 x 1-3/4"
|
L
3/4-10 x 1-3/4 HSFCHCS
|
| 3. |
8050825
|
[6] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
- Cylindrical Superseded by part number: F82059
|
| 4. |
700114361
|
[1] |
ARM/LIFTING DEVICE
|
HFI
Arm - Tension, Lower (S.N. CFH0015001 thru 0015220)
|
| 4. |
700118706
|
[1] |
ARM
|
HFI
- Tension, Lower (S.N. CFH0015221 thru 0015274)
|
| 4. |
700118996
|
[1] |
ARM
|
HFI
- Tension, Lower (S.N. CFH0015275 and on)
|
| 5. |
700107957
|
[2] |
CLAMP
|
HFI
- Half
|
| 6. |
61-34424
|
[8] |
HEX SOC SCREW,7/16"-14 x 1 1/2"
|
CAS
7/16-14 x 1-1/2 HSHCS Superseded by part number: 280281
|
| 7. |
6520233
|
[8] |
BUSHING
|
HFI
|
| 8. |
700118536
|
[6] |
SHIM
|
HFI
|
| 9. |
77040
|
[4] |
FITTING
|
CAS
1/4-28 x 45 Degree Zerk Superseded by part number: 219-90, 219-90, 87569
|
| 10. |
700107934
|
[1] |
ROLL
|
IH
er - Idler (Includes Bearings)
|
| 11. |
700118652
|
[2] |
WASHER
|
CAS
- Special
|
| 12. |
700118709
|
[1] |
SHAFT
|
HFI
- Center
|
| 13. |
700118707
|
[1] |
ROLL
|
IH
er Assembly (With Shaft and Bearings)
|
| 14. |
700119973
|
[1] |
LARGE PLATE
|
CAS
Plate - Wear, Upper, Right
|
| 15. |
700122464
|
[2] |
LARGE PLATE
|
CAS
Plate - Wear, Lower
|
| 16. |
700119972
|
[1] |
LARGE PLATE
|
CAS
Plate - Wear, Upper, Left
|
