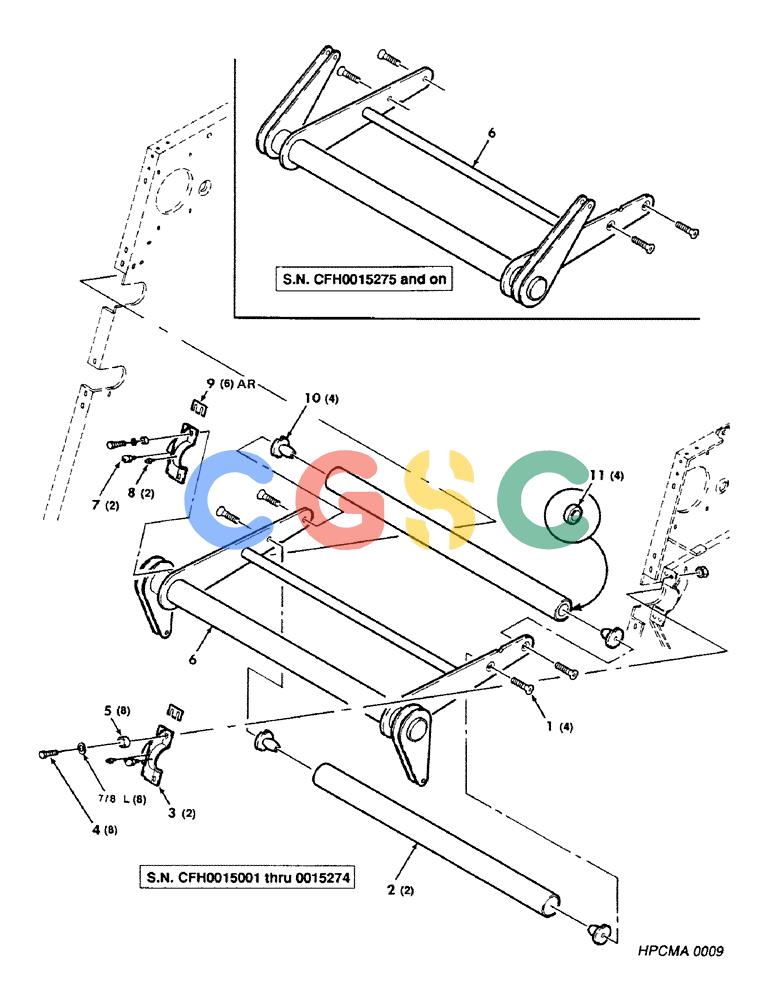

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (068) - BELT TENSION ROLLERS ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
1006 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700707981
|
[4] |
SCREW,FLAT, 3/4" - 10 x 1-3/4"
|
L
3/4-10 x 1-3/4 HSFCHCS
|
| 2. |
700107934
|
[2] |
ROLL
|
IH
er - Idler (Includes Bearings)
|
| 3. |
700107957
|
[2] |
CLAMP
|
HFI
- Half
|
| 4. |
61-34424
|
[8] |
HEX SOC SCREW,7/16"-14 x 1 1/2"
|
CAS
7/16-14 x 1-1/2 HSHCS Superseded by part number: 280281
|
| 5. |
6520233
|
[8] |
BUSHING
|
HFI
|
| 6. |
700114366
|
[1] |
ARM ASSY.
|
HFI
Arm - Tension, Upper (S.N. CFH0015001 thru 0015274)
|
| 6. |
700118995
|
[1] |
ARM
|
CAS
- Tension, Upper (S.N. CFH0015275 and on)
|
| 7. |
87569
|
[2] |
LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive
|
PA
1/4-28 x 45 Degree Zerk
|
| 8. |
77032
|
[2] |
FITTING
|
CAS
1/4-28 Zerk Superseded by part number: 88775
|
| 9. |
700118536
|
[6] |
SHIM
|
HFI
|
| 10. |
700100927
|
[4] |
HUB
|
L
- Roller
|
| 11. |
8050825
|
[4] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
- Cylindrical Superseded by part number: F82059
|
