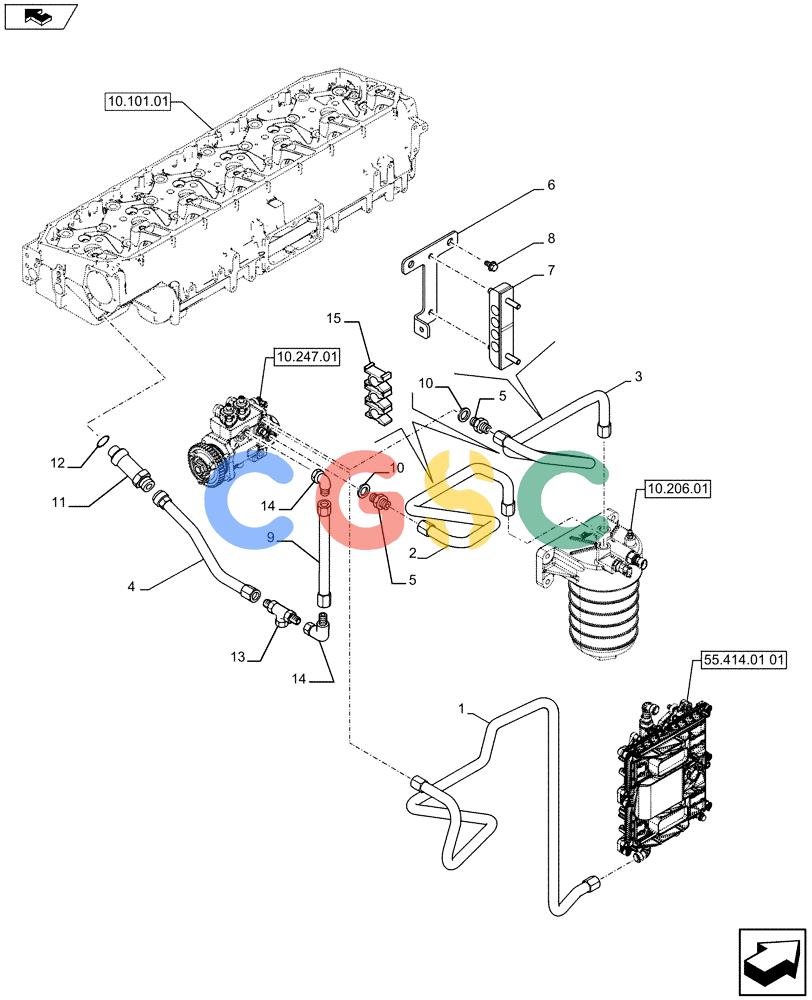

纽荷兰零件查询(F3DFA613B E003) - ENGINE 504384985 - 84250911 W/BRAKE (10.218.04) - FUEL LINES & RELATED PARTS (504386745) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
930 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504388449 | [1] | from Pump to Control Unit line | PIPE |
| 2. | 504388455 | [1] | from Pump to Filter line | PIPE |
| 3. | 504388465 | [1] | from Filter to Pump line | PIPE |
| 4. | 504388514 | [1] | | PIPE |
| 5. | 504081274 | [2] | HYD CONNECTOR | TORM18X1.5-M18X1.5 |
| 6. | 504382029 | [1] | | BRACKET, SUPPORTING |
| 7. | 504358736 | [1] | | LOCK |
| 8. | 2852323 | [2] | SCREW | TOR Superseded by part number: 16597925 |
| 9. | 504375711 | [1] | | PIPE |
| 10. | 4858609 | [2] | O-RING | TTF |
| 11. | 500310076 | [1] | FITTING | TOR |
| 12. | 99489019 | [2] | SEALING WASHER | TOR Superseded by part number: 5801560870 |
| 13. | 16506019 | [1] | | TEE |
| 14. | 16504114 | [2] | ELBOW | ZED |
