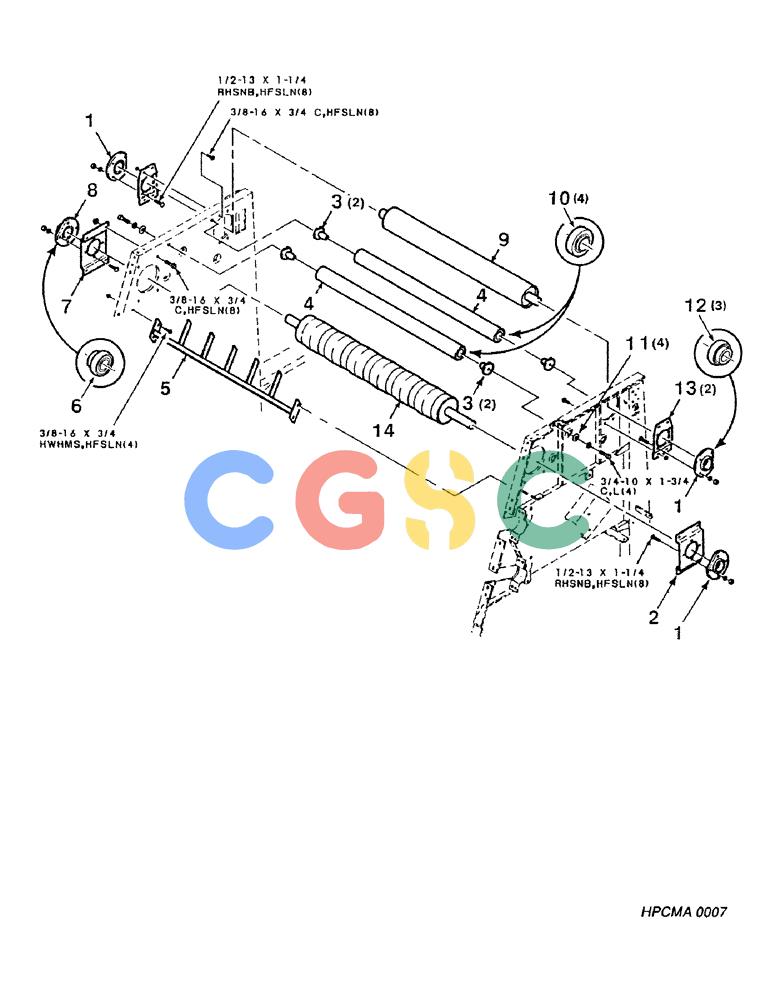

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (074) - ROLLERS, UPPER, AND FORMING BELTS GUIDE ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
671 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700109753
|
[3] |
BEARING ASSY,97 mm ID x 108 mm OD x 33 mm
|
CAS
Bearing Assembly - Flange (Includes Bearing)
|
| 2. |
700107963
|
[2] |
SUPPORT
|
HFI
- Roller, Left
|
| 3. |
700100927
|
[4] |
HUB
|
L
- Roller
|
| 4. |
700116217
|
[2] |
ROLL
|
IH
Assembly - Idler (Includes Bearings)
|
| 5. |
700107929
|
[1] |
GUIDE
|
HFI
- Belt
|
| 6. |
51318
|
[1] |
BEARING
|
IH
- Spherical Superseded by part number: 668718R92, 47577169
|
| 7. |
700107964
|
[1] |
SUPPORT
|
HFI
- Roller, Right
|
| 8. |
700110467
|
[1] |
BEARING ASSY,44.45 mm ID x 92.44 mm OD x 29 mm
|
L
Bearing Assembly - Flange (Includes Bearing)
|
| 9. |
700114370
|
[1] |
ROLLER
|
CAS
- Upper Rear
|
| 10. |
8050825
|
[4] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
- Cylindrical Superseded by part number: F82059
|
| 11. |
705566
|
[4] |
WASHER
|
IH
3/4 Hardened Plain Washer
|
| 12. |
712158
|
[3] |
SPHERICAL BEARING,2" ID x 100 mm OD
|
L
Bearing - Spherical Superseded by part number: 47577203
|
| 13. |
700114406
|
[2] |
PLATE
|
HFI
Support - Roller
|
| 14. |
700707163
|
[1] |
ROLL
|
CAS
er - Rubber
|
| . . |
7701196
|
[4] |
BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5
|
CAS
3/4-10 x 1-3/4 C Superseded by part number: 88725
|
| . . |
703199
|
[16] |
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
|
CAS
3/8-16 x 3/4 C
|
| . . |
68619
|
[16] |
BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5
|
CAS
1/2-13 x 1-1/4 RHSNB Superseded by part number: 87868
|
| . . |
7883374
|
[4] |
SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8-16 x 3/4 HWHMS Superseded by part number: 255918
|
