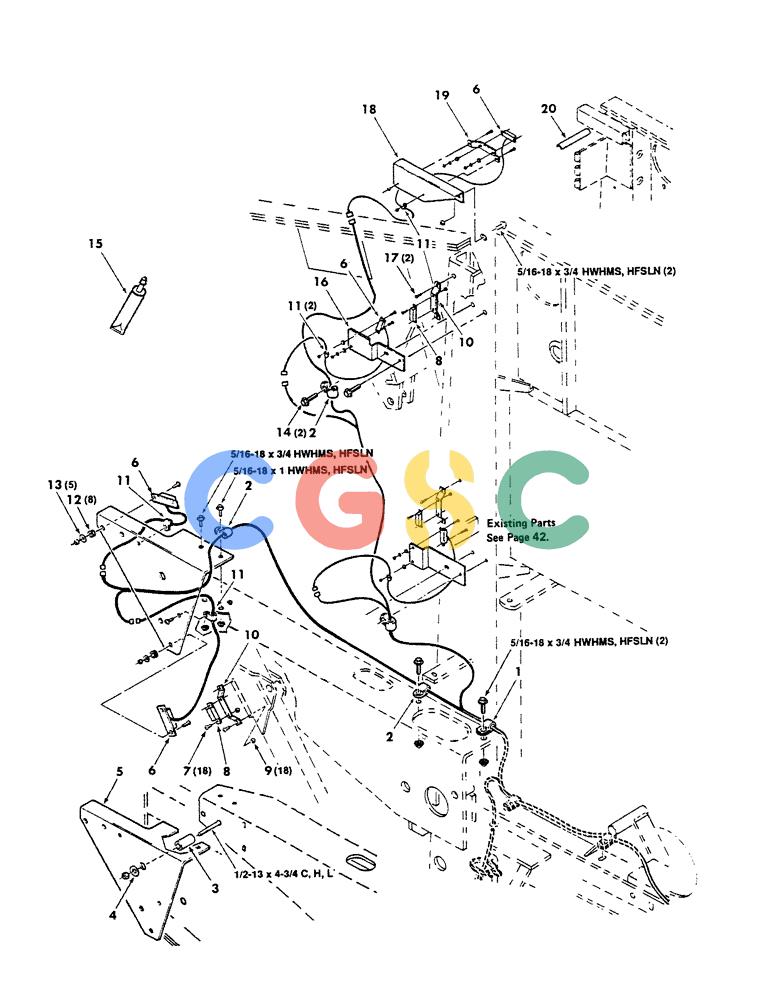

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (134) - KICKER EJECTOR, ELECTRICAL CONTROL ASSEMBLY, REAR, S.N. CFH0015767 AND ON Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
903 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
751487
|
[1] |
CLAMP
|
CAS
- Line Superseded by part number: 86632595
|
| 2. |
700708090
|
[3] |
CLAMP
|
L
- Line Superseded by part number: 86637978
|
| 3. |
6181002
|
[1] |
SPACER
|
CAS
|
| 4. |
705541
|
[1] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
1/2 Hardened Plain Washer
|
| 5. |
700122476
|
[1] |
SUPPORT
|
HFI
Shield - Support, Switch
|
| 6. |
700710208
|
[4] |
ROTARY SWITCH
|
L
Switch Assembly
|
| 7. |
700710188
|
[18] |
SCREW
|
CAS
No. 6-32 x 3/4 CRPHMS
|
| 8. |
700709996
|
[2] |
SWITCH
|
IH
Actuator - Magnet
|
| 9. |
700710189
|
[18] |
LOCK NUT
|
CAS
No. 6-32 LHSN
|
| 10. |
700122574
|
[2] |
SUPPORT
|
CAS
- Actuator
|
| 11. |
700710448
|
[4] |
CLAMP
|
CAS
Superseded by part number: 237910
|
| 12. |
700710199
|
[8] |
GROMMET
|
CAS
- Rubber
|
| 13. |
700710187
|
[5] |
WASHER
|
CAS
No. 6 Wide Plain Washer Stainless Steel
|
| 14. |
701953
|
[2] |
SELF-TAP SCREW
|
CAS
5/16-18 x 3/4 HWHTCTS Superseded by part number: 172463
|
| 15. |
700710331
|
[1] |
SCREW
|
CAS
Silicone - Dielectric Compound Superseded by part number: 345-92
|
| 16. |
700122569
|
[1] |
SUPPORT
|
HFI
- Switch Superseded by part number: 700128332
|
| 17. |
64667
|
[2] |
FLEXIBLE HOSE
|
CAS
- Pop Superseded by part number: 51200829, 51200829, NLS
|
| 18. |
700122568
|
[1] |
SUPPORT
|
HFI
- Switch
|
| 19. |
700122573
|
[1] |
SUPPORT
|
HFI
- Switch
|
| 20. |
700120657
|
[1] |
ORNAMENTAL STRIP
|
HFI
Grommet
|
| . . |
7701600
|
[1] |
BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5
|
CAS
1/2-13 x 4-3/4 C Superseded by part number: 86505992
|
| . . |
7883325
|
[5] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M
|
CAS
5/16-18 x 3/4 HWHMS Superseded by part number: 121-115
|
| . . |
7883333
|
[1] |
BOLT,Hex, 5/16" - 18 x 1", Gr 120M
|
CAS
5/16-18 x 1 HWHMS Superseded by part number: 121-108
|
