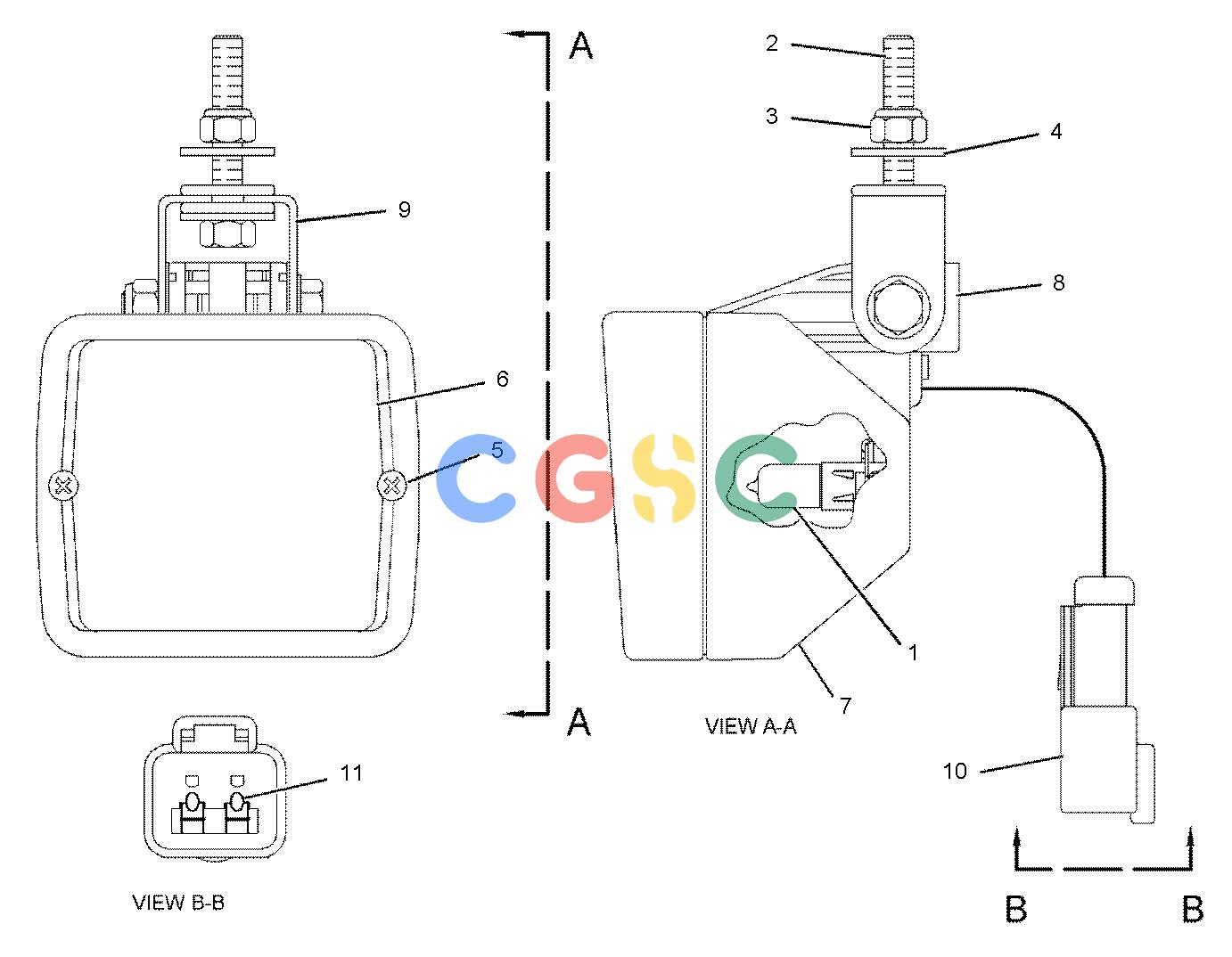

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 351-9918 | [1] | LAMP-HALOGEN(24-VOLT, 70-WATT) | |
| 2. | 9X-4244M | [2] | SCREW-SPECIAL(M4X1.79X25-MM) | |
| 3. | 175-4291 | [1] | BRACKET AS | |
| 4. | 202-6614 | [1] | LENS AS(FLOODLIGHT) | |
| 5. | 175-4292 | [1] | BODY AS | |
| 6. | 164-7556 | [1] | BRACKET(LAMP RETAINING) | |
| 7. | 247-4285 | [1] | BOLT(M8X1.25X50-MM) | |
| 8. | 6V-9189M | [1] | LOCKNUT(M8X1.25-THD) | |
| 9. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| M | METRIC PART | |||
