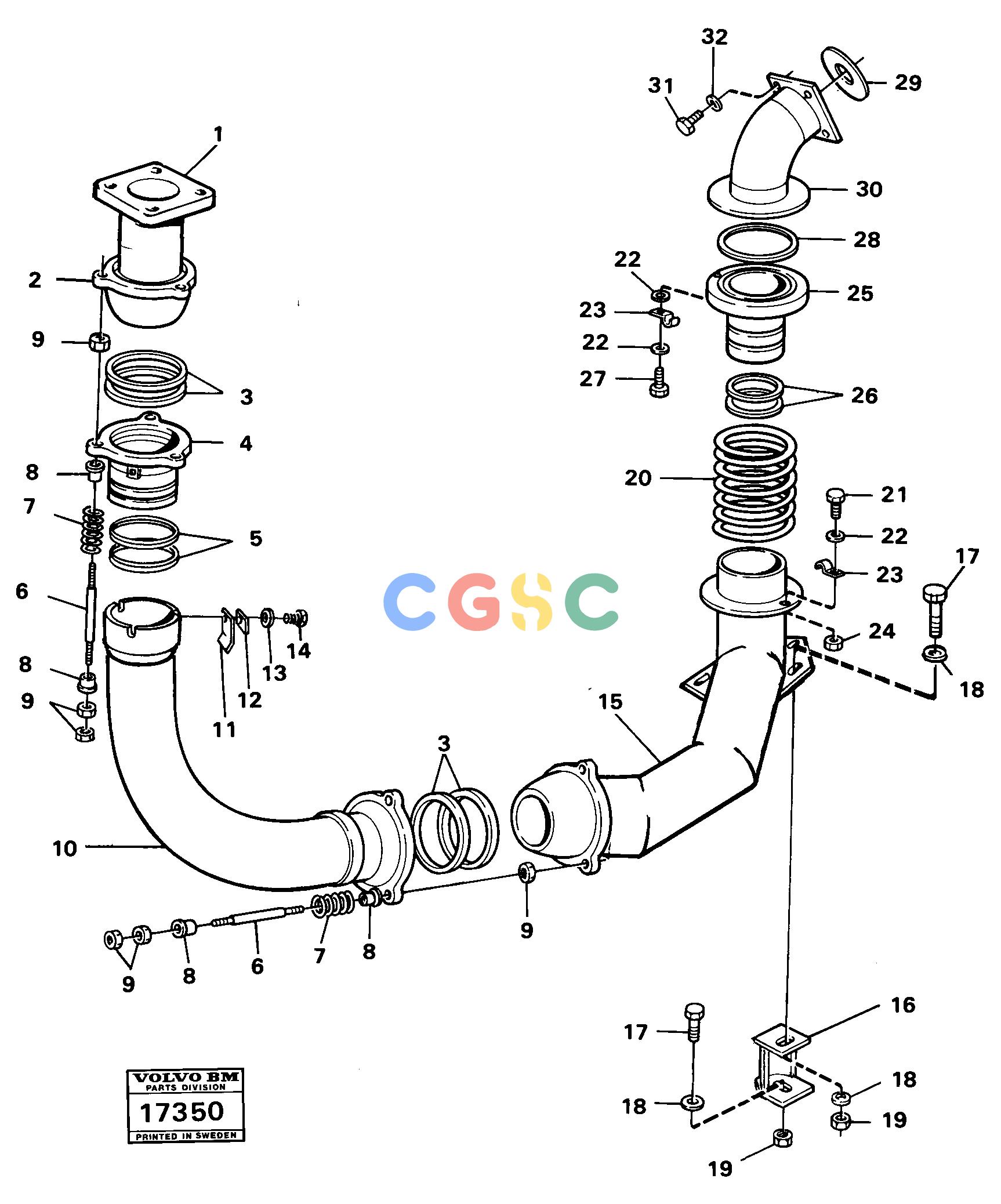

沃尔沃零件查询5350 Exhaust-heating 99672 Tillv Nr 1800-5350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
298 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4823343
|
[0002] |
Gasket
|
|
| 6. |
VOE11064911
|
[0006] |
Stud
|
|
| 7. |
VOE4940623
|
[0006] |
Compression spring
|
|
| 8. |
VOE4940622
|
[0012] |
Sleeve
|
|
| 9. |
VOE13971072
|
[0018] |
Hexagon nut
|
|
| 1. |
VOE4940624
|
[0001] |
Exhaust pipe
|
|
| 10. |
VOE4940616
|
[0001] |
Exhaust hose
|
|
| 11. |
VOE4940630
|
[0003] |
Leaf spring
|
|
| 12. |
VOE4940841
|
[0003] |
Washer
|
|
| 13. |
VOE13955894
|
[0003] |
Washer
|
|
| 14. |
VOE13955294
|
[0003] |
Screw
|
|
| 15. |
VOE4940854
|
[0001] |
Exhaust pipe
|
|
| 16. |
VOE4940625
|
[0003] |
Anchorage
|
|
| 17. |
VOE13970972
|
[0006] |
Hexagon screw
|
|
| 18. |
VOE13960145
|
[0009] |
Washer
|
|
| 19. |
VOE971099
|
[0006] |
Flange lock nut
|
|
| 2. |
VOE4821615
|
[0001] |
Ring
|
|
| 20. |
VOE4940851
|
[0001] |
Compression spring
|
|
| 21. |
VOE13963547
|
[0001] |
Screw
|
|
| 22. |
VOE13940090
|
[0003] |
Washer
|
|
| 23. |
VOE951190
|
[0002] |
Clamp
|
|
| 24. |
VOE13963104
|
[0001] |
Lock nut
|
|
| 25. |
VOE4940857
|
[0001] |
Connector
|
|
| 26. |
VOE4823343
|
[0002] |
Gasket
|
|
| 27. |
VOE963545
|
[0001] |
Hexagon screw
|
|
| 28. |
VOE6626643
|
[0001] |
Gasket
|
|
| 29. |
VOE4770880
|
[0001] |
Gasket
|
|
| 3. |
VOE4823343
|
[0004] |
Gasket
|
|
| 30. |
VOE4940367
|
[0001] |
Exhaust pipe
|
|
| 31. |
VOE13971019
|
[0004] |
Screw
|
|
| 32. |
VOE976945
|
[0004] |
Washer
|
|
| 4. |
VOE4940615
|
[0001] |
Exhaust pipe
|
|
