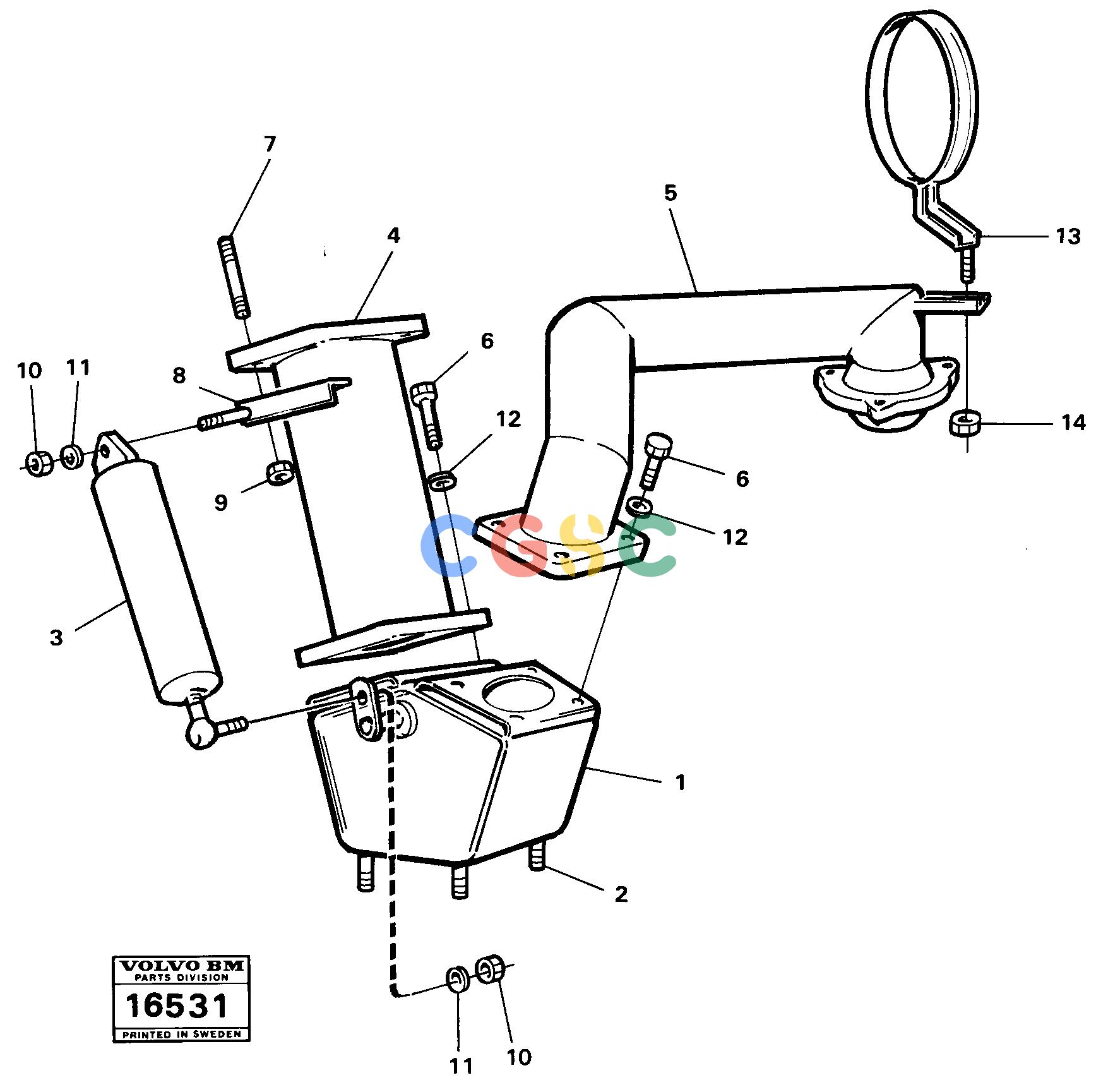

沃尔沃零件查询5350 Waste-gas heated body, valve 98698 Tillv Nr -11005350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
411 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4823341
|
[0001] |
Exhaust pipe
|
|
| 6. |
VOE13971019
|
[0008] |
Screw
|
|
| 7. |
VOE11064911
|
[0003] |
Stud
|
|
| 8. |
VOE4823051
|
[0001] |
Bracket
|
|
| 9. |
VOE971099
|
[0001] |
Flange lock nut
|
|
| 1. |
VOE4770830
|
[0001] |
Deflection valve
|
|
| 10. |
VOE13945408
|
[0001] |
Nut
|
|
| 11. |
VOE13960141
|
[0001] |
Washer
|
|
| 12. |
VOE976945
|
[0010] |
Washer
|
|
| 13. |
VOE4821171
|
[0001] |
Clamp
|
|
| 14. |
VOE13971098
|
[0001] |
Flange nut
|
|
| 2. |
VOE13971021
|
[0004] |
Screw
|
|
| 3. |
|
[0001] |
Pneumatic cylinder
|
|
| 4. |
VOE4823338
|
[0001] |
Exhaust pipe
|
|
