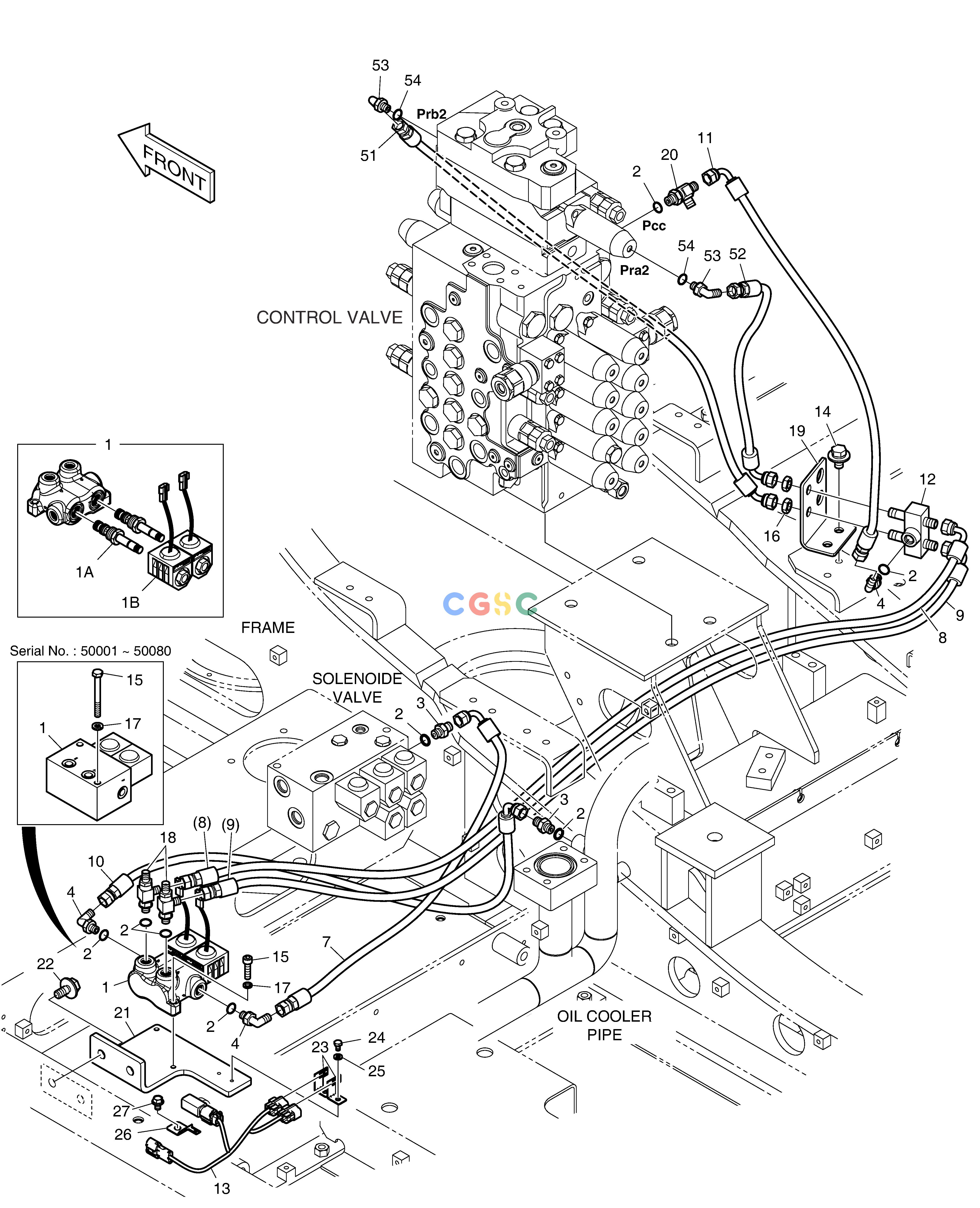

斗山零件查询PILOT PIPING(1) - ROTATING DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
843 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1017478C
|
[-] |
|
|
| 1. |
426-00247A
|
[1] |
VALVE;SOLENOID
|
|
| 1. |
426-00247B
|
[1] |
VALVE;SOLENOID
|
|
| 10. |
DS2093012
|
[1] |
HOSE
|
|
| 11. |
DS2093261
|
[1] |
HOSE
|
|
| 12. |
420-00476
|
[1] |
VALVE;SHUTTLE
|
|
| 13. |
K1000817
|
[1] |
HARNESS
|
|
| 14. |
DS0025019
|
[2] |
BOLT
|
|
| 15. |
S0556866
|
[2] |
BOLT
|
|
| 15. |
S2209266
|
[2] |
BOLT
|
|
| 16. |
121-00010D7
|
[2] |
NUT
|
|
| 17. |
S5102503
|
[2] |
. WASHER
|
|
| 17. |
S5110503
|
[2] |
WASHER
|
|
| 18. |
181-00779
|
[2] |
TEE
|
|
| 19. |
K1014174
|
[1] |
BRACKET
|
|
| 1A. |
K9007363
|
[2] |
SPOOL;SOLENOID
|
|
| 1B. |
1.519-00001
|
[2] |
COIL
|
|
| 2. |
S8000111
|
[8] |
O-RING
|
|
| 20. |
2181-1951D1
|
[1] |
TEE
|
|
| 21. |
K1027072
|
[1] |
BRACKET
|
|
| 22. |
DS0025018
|
[2] |
BOLT
|
|
| 23. |
2195-3500
|
[2] |
BRACKET
|
|
| 24. |
S0504366
|
[2] |
BOLT
|
|
| 25. |
S5102303
|
[2] |
. WASHER
|
|
| 26. |
2197-1661
|
[1] |
BRACKET
|
|
| 27. |
K1001029
|
[1] |
BOLT
|
|
| 3. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 4. |
2181-1702D4
|
[3] |
ELBOW
|
|
| 51. |
DS2092023
|
[1] |
HOSE
|
|
| 52. |
DS2093115
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 53. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 54. |
S8000111
|
[2] |
O-RING
|
|
| 7. |
DS2093080
|
[1] |
HOSE
|
|
| 8. |
DS2093420
|
[1] |
HOSE
|
|
| 9. |
DS2093101
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
