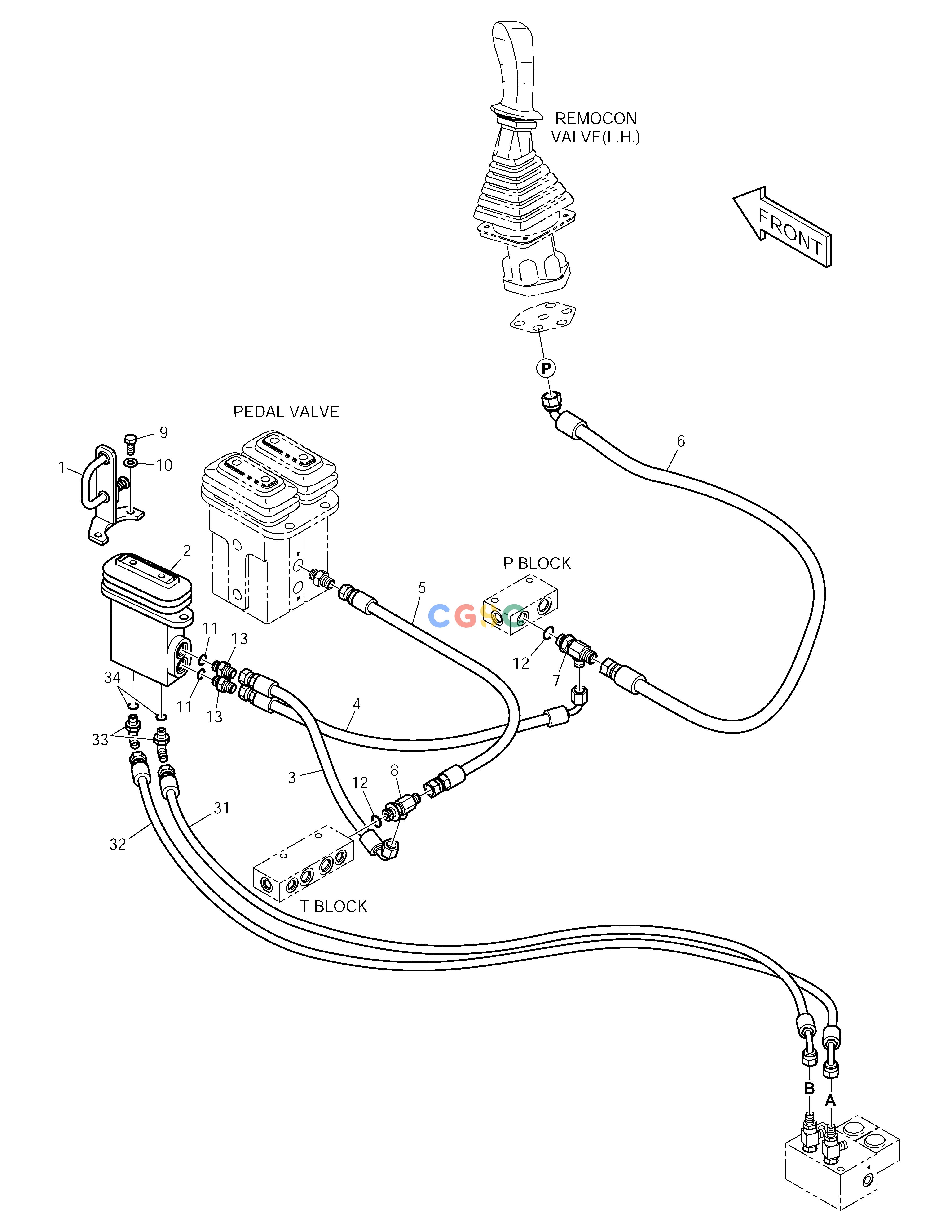

斗山零件查询PILOT PIPING(2) - ROTATING OR ARTI DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
920 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1024564E
|
[-] |
PILOT PIPING-ROTATING
|
|
| 1. |
K1001873A
|
[1] |
PLATE
|
|
| 10. |
S5102503
|
[2] |
. WASHER
|
|
| 11. |
S8000111
|
[2] |
O-RING
|
|
| 12. |
S8000141
|
[2] |
O-RING
|
|
| 13. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 2. |
K1017382
|
[1] |
VALVE;PEDAL
|
K1017382A
|
| 2. |
K1017382A
|
[1] |
PEDAL VALVE
|
|
| 3. |
DS2093130
|
[1] |
HOSE
|
|
| 31. |
DS2093114
|
[1] |
HOSE
|
|
| 32. |
DS2093394
|
[1] |
HOSE
|
|
| 33. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 34. |
S8000111
|
[2] |
O-RING
|
|
| 4. |
DS2093202
|
[1] |
HOSE
|
|
| 5. |
DS2094006
|
[1] |
HOSE
|
|
| 6. |
DS2095003
|
[1] |
HOSE
|
|
| 7. |
2181-1951D6
|
[1] |
TEE
|
|
| 8. |
2181-1951D7
|
[1] |
TEE
|
|
| 9. |
S0508866
|
[2] |
BOLT
|
|
