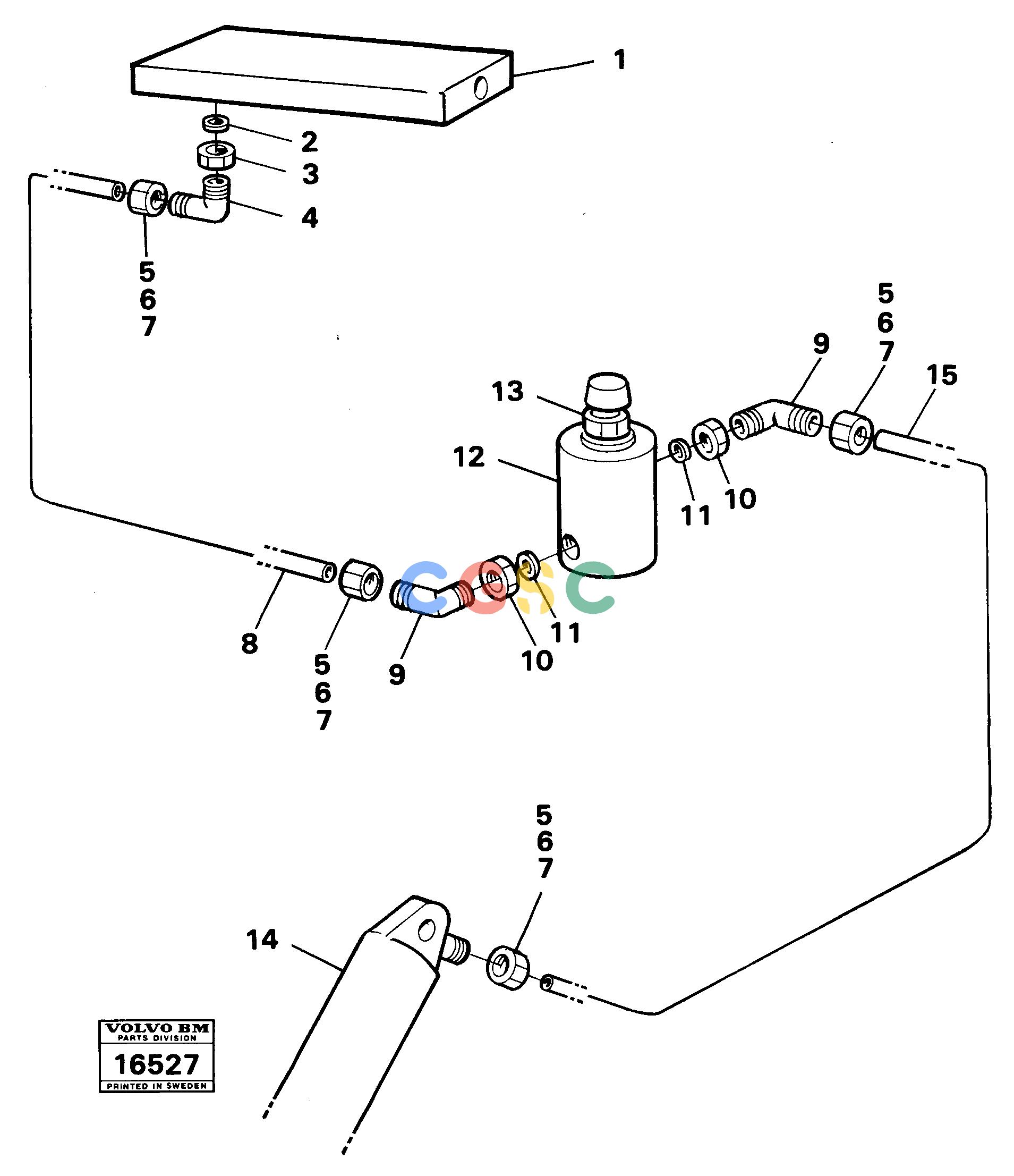

沃尔沃零件查询5350 Exhaust-heated body pneumatic system 986975350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
274 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE944717
|
[0004] |
Sleeve
|
|
| 6. |
VOE954364
|
[0004] |
Ferrule
|
|
| 7. |
VOE954356
|
[0004] |
Fitting nut
|
|
| 8. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=3450
|
| 9. |
VOE945916
|
[0002] |
Elbow nipple
|
|
| 1. |
|
[0001] |
Valve plate
|
SEE GROUP 51
|
| 10. |
VOE945893
|
[0002] |
Hexagon nut
|
|
| 11. |
VOE945897
|
[0002] |
Gasket
|
|
| 12. |
VOE6645268
|
[0001] |
Three-way valve
|
|
| 13. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=3600
|
| 14. |
|
[0001] |
Compr.-air cylinder
|
|
| 2. |
VOE13949657
|
[0001] |
O-ring
|
|
| 3. |
VOE945895
|
[0001] |
Hexagon nut
|
|
| 4. |
VOE946134
|
[0001] |
Elbow nipple
|
|
