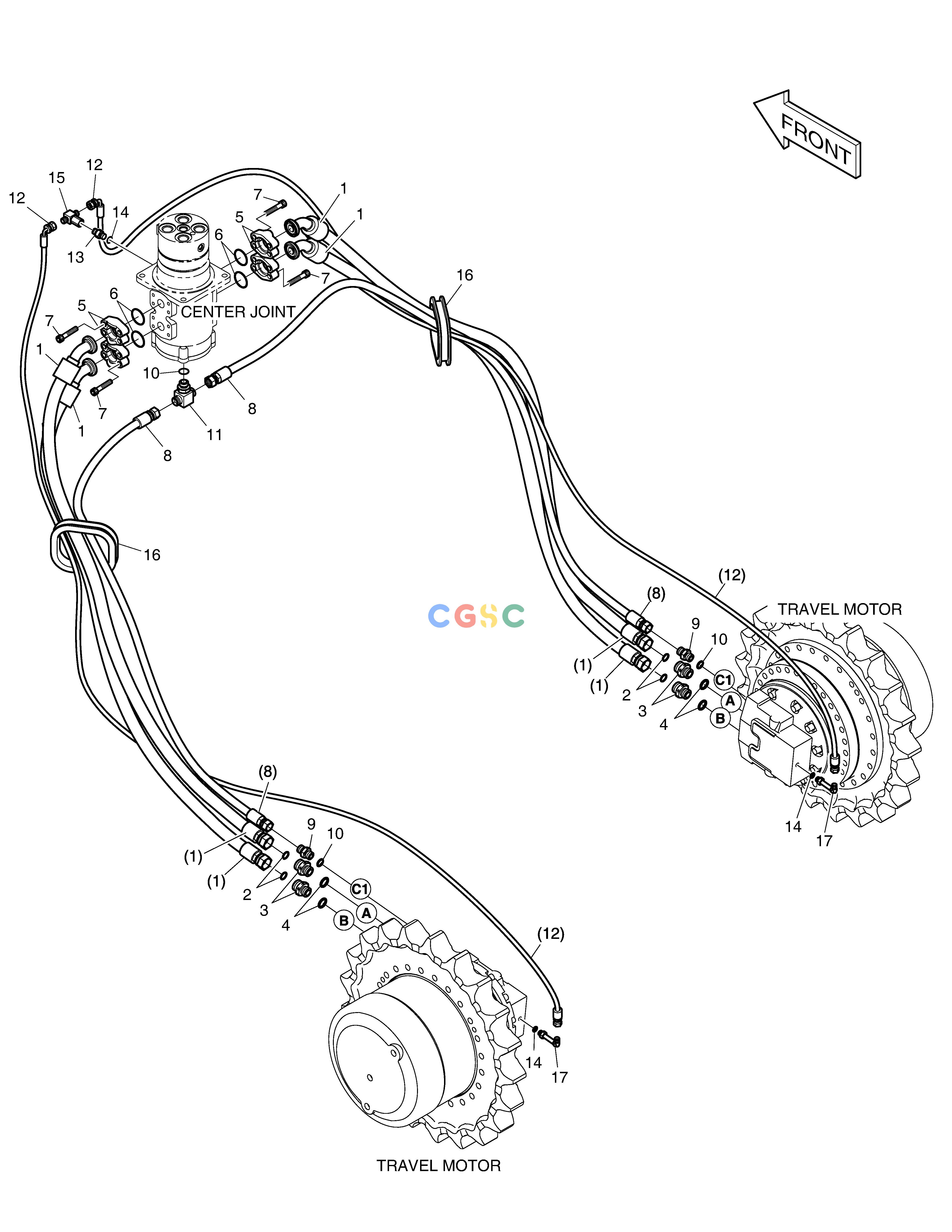

斗山零件查询PROPELLING PIPING - HLC TRACK DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
884 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
9400-1510
|
[-] |
|
|
| 1. |
9184-1074D7
|
[4] |
|
|
| 10. |
S8000181
|
[3] |
O-RING
|
|
| 11. |
2181-2281D10
|
[1] |
TEE
|
|
| 12. |
2184-1046D89
|
[2] |
HOSE PF1/4-2650
|
|
| 13. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 14. |
S8000111
|
[3] |
O-RING
|
|
| 15. |
2181-4125
|
[1] |
TEE
|
|
| 16. |
DS7604003
|
[2] |
BUSHING
|
|
| 17. |
2181-1702D56
|
[2] |
ELBOW
|
|
| 2. |
S8030121
|
[4] |
O-RING
|
|
| 3. |
2181-2627D1
|
[4] |
ADAPTER
|
|
| 4. |
S8000231
|
[4] |
O-RING
|
|
| 5. |
2181-9081
|
[8] |
FLANGE;SPLIT
|
|
| 6. |
2180-1026D19
|
[4] |
O-RING
|
|
| 7. |
S2215466
|
[16] |
BOLT
|
|
| 8. |
2184-1026D10
|
[2] |
HOSE (ST-ST)
|
|
| 9. |
2181-1126D6
|
[2] |
ADAPTER
|
|
