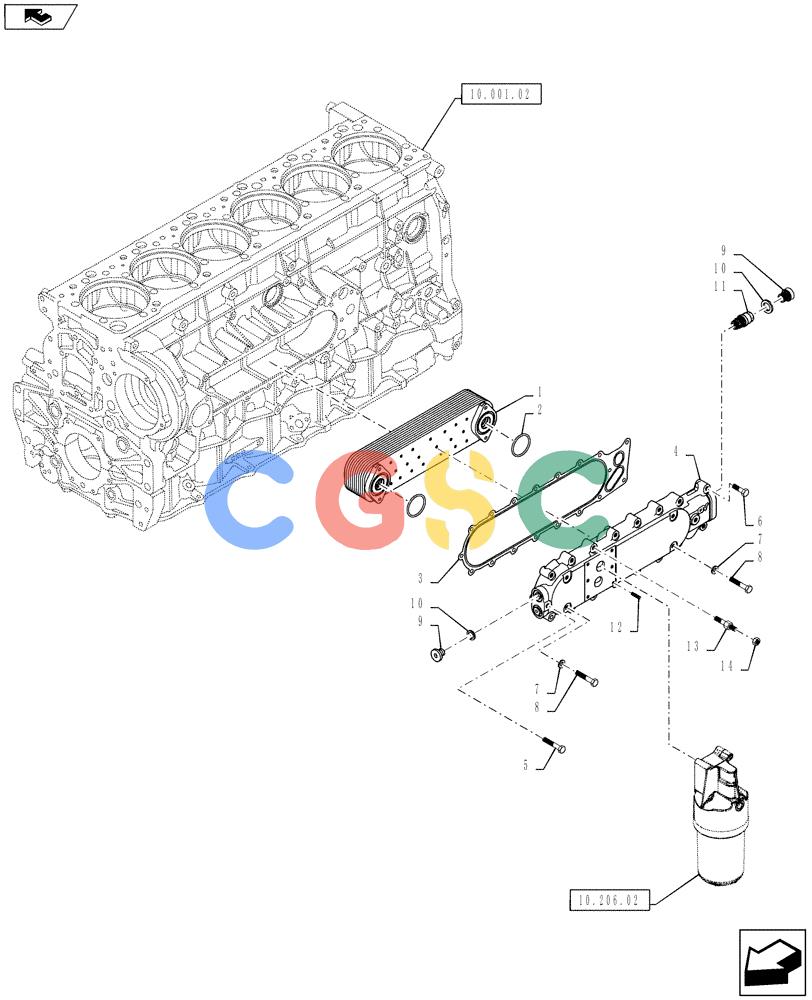

纽荷兰零件查询(F3DFA613B E003) - ENGINE 504384985 - 84250911 W/BRAKE (10.408.01) - HEAT EXCHANGER (5801379223) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
751 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5801379224 | [1] | | RADIATOR |
| 2. | 17289781 | [2] | O-RING | TOR |
| 3. | 504388425 | [1] | | GASKET |
| 5. | 16592325 | [2] | BOLT,M8 x 60mm | ASTM8 x 60 |
| 6. | 16586725 | [16] | BOLT,Hex, M8 x 1.25 x 40mm | TORM8 x 40 |
| 7. | 98474303 | [4] | WASHER,8mm ID x 14mm OD x 2.3mm Thk | TOR |
| 8. | 16586825 | [4] | BOLT,Hex, M8 x 1.25 x 45mm | TORM8 x 45 |
| 9. | 10278301 | [4] | PLUG,M28 x 1.5 x 11, Brass | BAS Superseded by part number: 10278311 |
| 10. | 99432291 | [4] | GASKET,28mm ID | TOR Superseded by part number: 5801560863 |
| 11. | 504142601 | [1] | VALVE | TOR |
| 12. | 99435557 | [1] | DOWEL,8.50mm Dia | TOR Superseded by part number: 2852481 |
| 14. | 2852389 | [2] | FLANGE NUT | TORHEXAGON |
