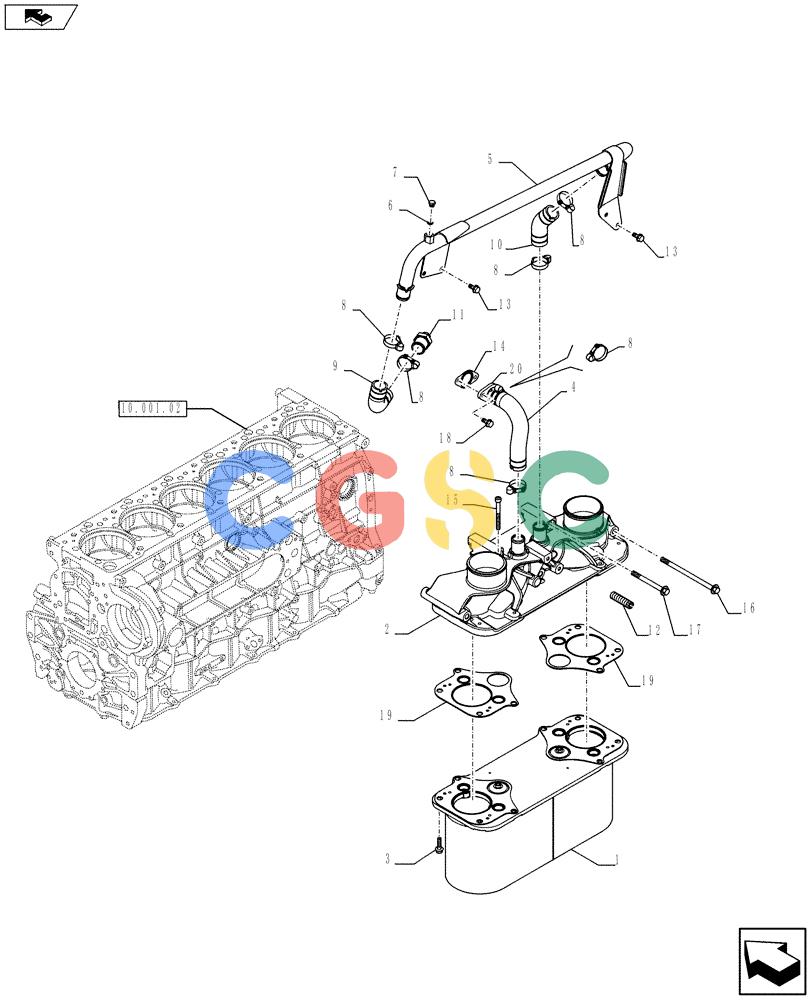

纽荷兰零件查询(F3DFA613B E003) - ENGINE 504384985 - 84250911 W/BRAKE (10.408.02) - HEAT EXCHANGER (504386770) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
785 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504388537 | [1] | | INTERCOOLER |
| 2. | 504388539 | [1] | | BRACKET |
| 3. | 16673735 | [8] | BOLT,Hex, M8 x 1.25 x 25mm | TORM8 x 25 Superseded by part number: 10278301 |
| 4. | 504388956 | [1] | | RUBBER SLEEVE |
| 5. | 504388691 | [1] | | TUBE |
| 6. | 99489017 | [1] | GASKET,9.9mm ID x 20mm OD x 2.5mm Thk | TOR |
| 7. | 11903211 | [1] | PLUG,M12 x 1.25 x 12, Cl5.8 | TOR |
| 8. | 71404506 | [6] | CLAMP,#30, 1.81"-2.06", T-Bolt | LEC |
| 9. | 504382458 | [1] | | RUBBER SLEEVE |
| 10. | 504382463 | [1] | | RUBBER SLEEVE |
| 11. | 504370687 | [1] | | UNION |
| 12. | 17257174 | [1] | | ROLL PIN |
| 13. | 2854311 | [4] | SCREW | TOR |
| 14. | 504381689 | [1] | | GASKET |
| 15. | 16691624 | [2] | SCREW | TORM8 x 80 |
| 16. | 18172634 | [3] | | BOLT,Hex, M10 x 160mm, Cl 10.9 |
| 17. | 16593125 | [2] | BOLT,M10 x 100mm | TOR |
| 19. | 504388683 | [2] | | GASKET |
| 20. | 504382437 | [1] | | TUBE |
