神钢零件查询(6D14-T) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (04-005) - ALTERNATOR GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
176 次

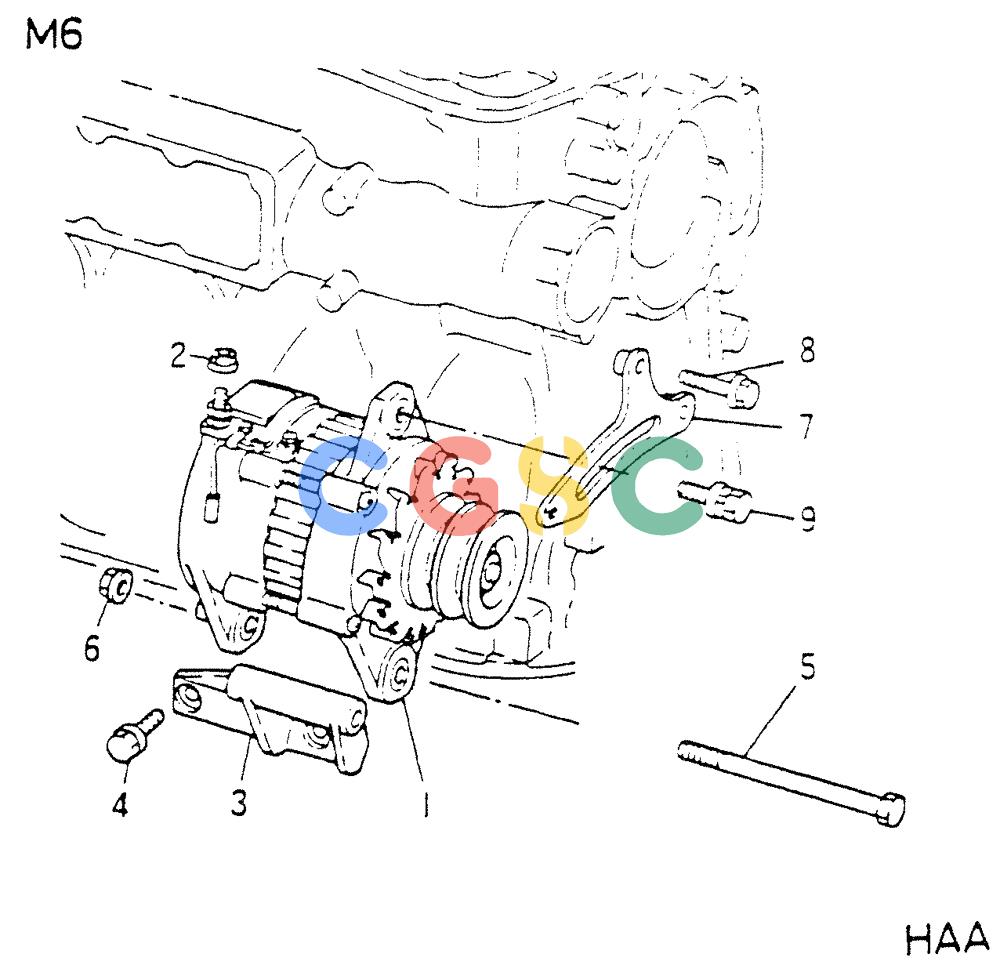

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME067617 | [1] | ALTERNATOR | KOBALTERNATOR ASSY.MEC 24V-40A |
| 2. | VAMF446181 | [1] | NUT,FLANGE 5 | |
| 3. | VAME037469 | [1] | U-BRACKET | KOBBRACKET,ALTERNATOR |
| 4. | VAMH000726 | [2] | BOLT | KOBBOLT,FLANGE 10X22 |
| 5. | VAMH000703 | [1] | BOLT | KOBBOLT 12X125 |
| 6. | VAMF434106 | [1] | NUT | KOBNUT,FLANGE 12 Superseded by part number: 135085A1 |
| 7. | VAME037645 | [1] | TOP ALTERNATOR BRACK PLATE,ADJUSTING | TOP ALTERNATOR BRACK PLATE,ADJUSTING |
| 8. | VAMF140234 | [2] | SPECIAL BOLT | KOBBOLT,FLANGE 8X45 |
| 9. | VAMH000372 | [1] | SCREW | KOBBOLT,W/WSR 12X30 Superseded by part number: 135147A1 |
