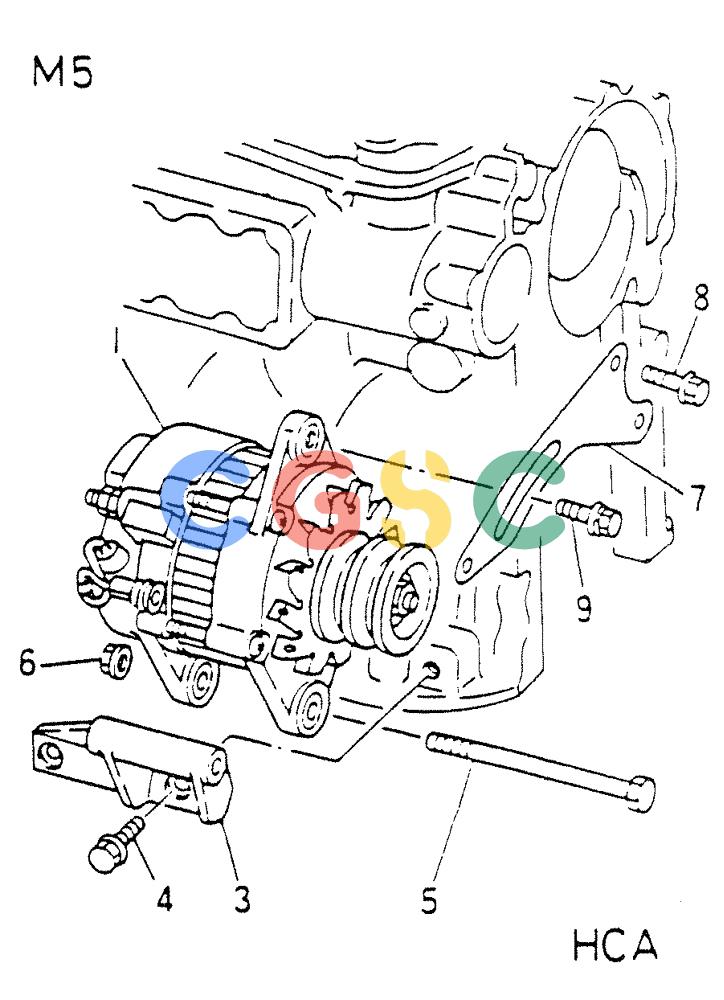

神钢零件查询(6D14-T) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (04-006) - ALTERNATOR GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
445 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME049171 | [1] | ALTERNATOR | KOBASSY,MEC 24V-80A |
| 3. | VAME037469 | [1] | U-BRACKET | KOBALTERNATOR |
| 4. | VAMH000726 | [1] | BOLT | KOBFLANGE 10X22 |
| 5. | VAMH000703 | [2] | BOLT | KOB12X125 |
| 6. | VAMF434106 | [1] | NUT | KOBFLANGE 12 Superseded by part number: 135085A1 |
| 7. | VAME037637 | [1] | PLATE,ADJUSTING | |
| 8. | VAMF140234 | [2] | SPECIAL BOLT | KOBFLANGE 8X45 |
| 9. | VAMH000372 | [1] | SCREW | KOBW/WSR 12X30 Superseded by part number: 135147A1 |
