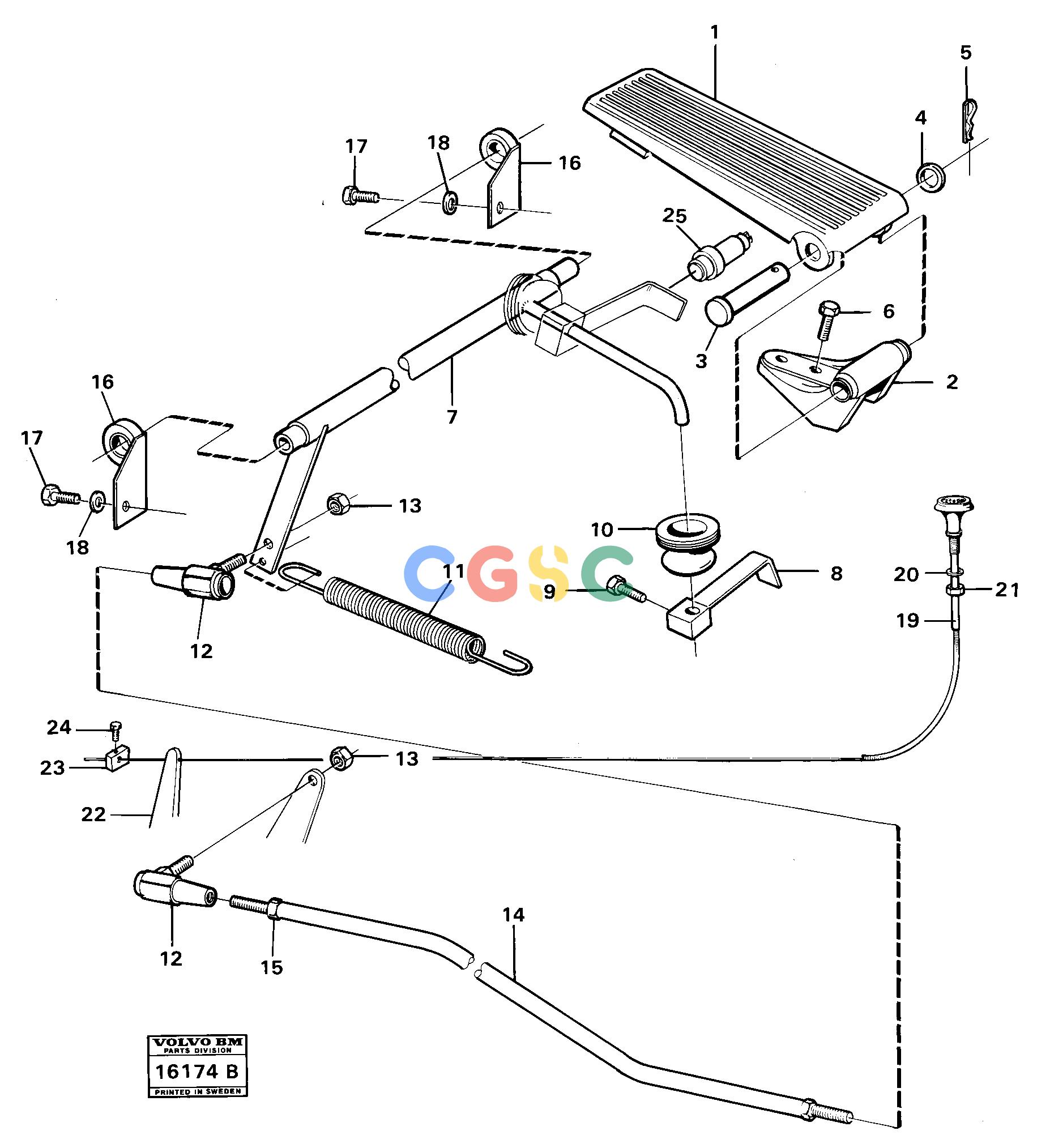

沃尔沃零件查询5350 Govornor controls tillv nr -16165350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
918 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13907860
|
[0001] |
Cotter Pin
|
|
| 6. |
VOE946934
|
[0002] |
Flange screw
|
|
| 7. |
VOE4737508
|
[0001] |
Control
|
|
| 8. |
|
[0001] |
Bracket
|
|
| |
|
|
None
|
SER NO - 1492
|
| 9. |
VOE13955271
|
[0001] |
Screw
|
SER NO -1492
|
| 1. |
VOE7324712
|
[0001] |
Pedal
|
|
| 10. |
VOE661967
|
[0001] |
Bellows
|
|
| 11. |
VOE11180052
|
[0001] |
Spring
|
|
| 12. |
VOE959079
|
[0002] |
Angle ball joint
|
|
| 13. |
VOE13949278
|
[0002] |
Flange lock nut
|
|
| 14. |
VOE4823585
|
[0001] |
Push Rod
|
|
| 15. |
VOE13955781
|
[0002] |
Nut
|
|
| 16. |
VOE6626850
|
[2] |
Brg Arrangement
|
|
| 17. |
VOE13970969
|
[2] |
Hexagon screw
|
|
| 18. |
VOE940280
|
[2] |
Spring washer
|
|
| 19. |
VOE15140105
|
[1] |
Wire control
|
|
| 2. |
VOE324714
|
[0001] |
Attaching bracket
|
|
| 20. |
VOE13940109
|
[1] |
Lock washer
|
|
| 21. |
VOE940140
|
[1] |
Hexagon nut
|
|
| 22. |
|
[1] |
Lever
|
SEE GROUP 23
|
| 23. |
VOE4773915
|
[1] |
Attaching Cube
|
|
| 24. |
VOE955246
|
[1] |
Hexagon screw
|
|
| 25. |
VOE11039223
|
[1] |
Induction sensor
|
LOCK UP
|
| |
|
|
None
|
SER NO - 1492
|
| 3. |
VOE191240
|
[0001] |
Bolt
|
|
| 4. |
VOE955896
|
[0001] |
Plain washer
|
|
