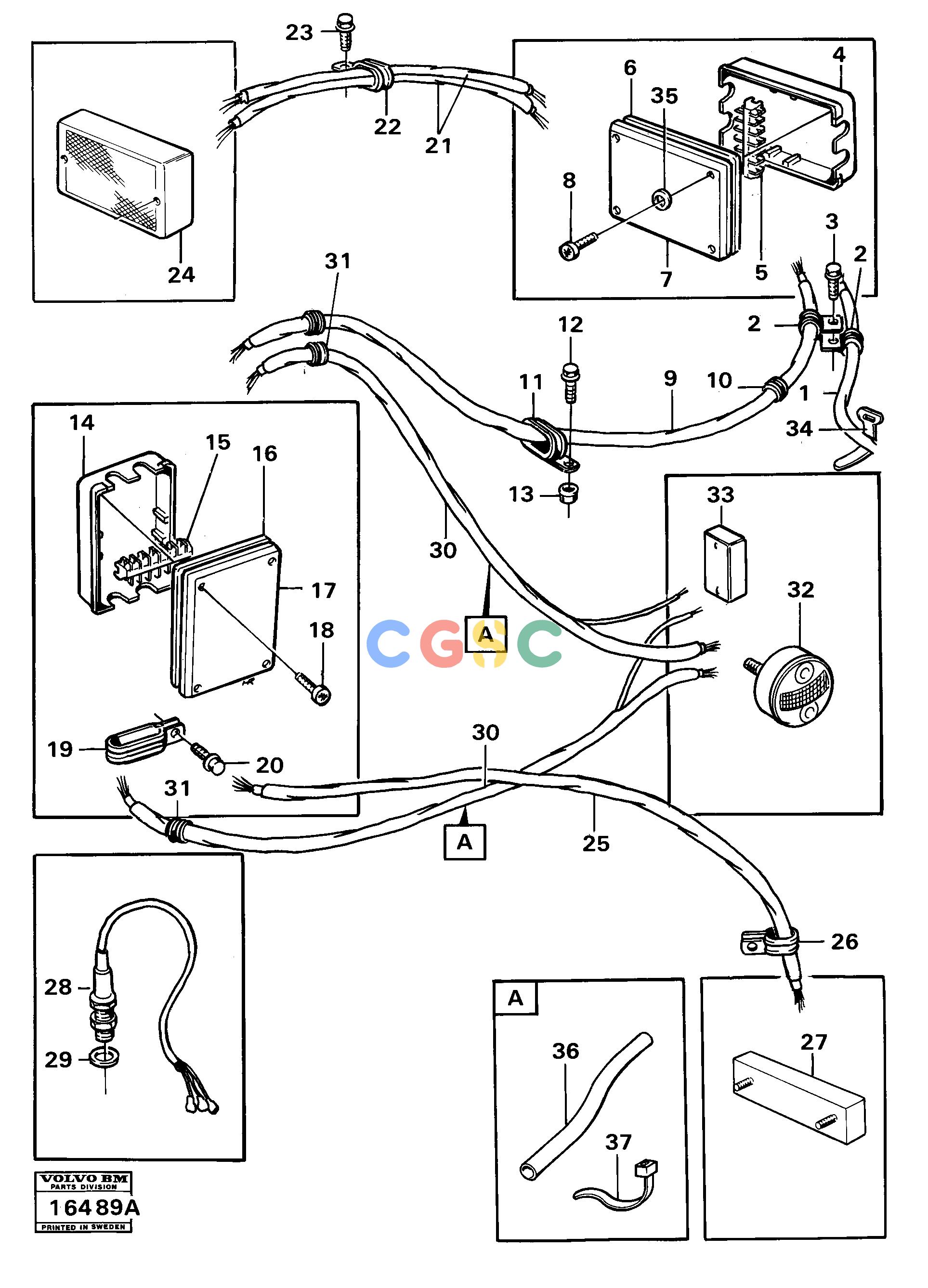

沃尔沃零件查询5350 Electrical system, trailer S/N -16165350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
958 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4737241
|
[0001] |
Clutch housing
|
|
| 5. |
VOE4821415
|
[0001] |
Appliance box
|
|
| 6. |
VOE356196
|
[0001] |
Seal
|
|
| 7. |
VOE1575675
|
[0001] |
Cap
|
|
| 8. |
VOE1575676
|
[0004] |
Lock screw
|
|
| 1. |
VOE4942086
|
[0001] |
Cable harness
|
|
| 9. |
VOE4821416
|
[0001] |
Cable harness
|
|
| |
|
|
None
|
|
| 10. |
VOE355878
|
[0002] |
Bushing
|
|
| 11. |
VOE952633
|
[0003] |
Clamp
|
|
| 12. |
VOE946934
|
[0003] |
Flange screw
|
|
| 13. |
VOE13949278
|
[0003] |
Flange lock nut
|
|
| 14. |
VOE4737241
|
[0001] |
Clutch housing
|
|
| 15. |
VOE4821415
|
[0001] |
Appliance box
|
|
| 16. |
VOE356196
|
[0001] |
Seal
|
|
| 17. |
VOE1575675
|
[0001] |
Cap
|
|
| 18. |
VOE1575676
|
[0004] |
Lock screw
|
|
| 2. |
VOE952627
|
[0002] |
Clamp
|
|
| 19. |
VOE952625
|
[0003] |
Clamp
|
D=9,5
|
| |
VOE952627
|
[0001] |
Clamp
|
D=12,7
|
| 20. |
VOE946934
|
[0002] |
Flange screw
|
|
| 21. |
|
[0002] |
Wire harness
|
|
| 22. |
VOE952623
|
[0002] |
Clamp
|
|
| 23. |
VOE946934
|
[0002] |
Flange screw
|
|
| 24. |
|
[0002] |
Side marking lamp
|
|
| 25. |
|
[0001] |
Wire harness
|
|
| 26. |
VOE952623
|
[0002] |
Clamp
|
|
| 27. |
|
[0002] |
Plate lamps
|
|
| 3. |
VOE946934
|
[0002] |
Flange screw
|
|
| 28. |
VOE11039223
|
[0001] |
Induction sensor
|
TIPP/DUMPING
|
| 29. |
VOE955901
|
[0001] |
Plain washer
|
|
| |
|
[0002] |
Wire harness
|
|
| |
|
|
Cable
|
SER NO - 1554
|
| |
VOE4823549
|
[0001] |
Cable harness
|
V SER NO 1555-
|
| |
VOE4823551
|
[0001] |
Cable harness
|
H SER NO 1555-
|
| 30. |
VOE943524
|
[0002] |
Wire
|
|
| 31. |
VOE355877
|
[0002] |
Bushing
|
|
| 32. |
|
[0002] |
Tail light
|
|
| 33. |
|
[0002] |
Side marking lamp
|
|
| 34. |
VOE4821292
|
[0005] |
Cable tie
|
SER NO 1269-
|
| 35. |
VOE955892
|
[0004] |
Plain washer
|
SER NO 1400-
|
| 4. |
VOE13949278
|
[0001] |
Flange lock nut
|
|
| 36. |
VOE952967
|
[0002] |
Hose
|
L=1000 SER NO 1555-
|
| 37. |
VOE4821292
|
[0005] |
Cable tie
|
SER NO 1555-
|
