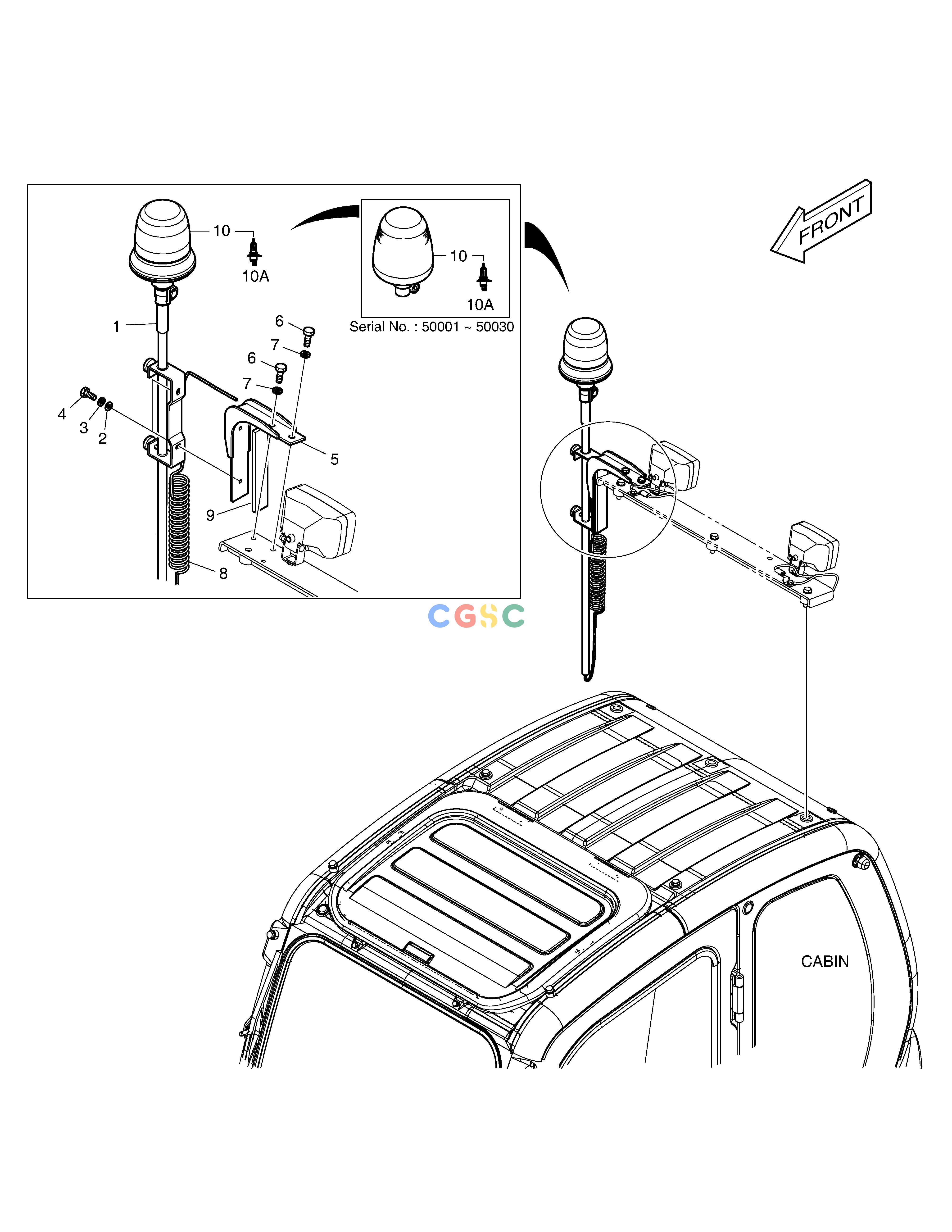

斗山零件查询ROTATING BEACON(TELESCOPIC) WITH LAMP DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
317 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00309C
|
[-] |
ROTATING BEACON
|
|
| 1. |
195-01805
|
[1] |
SUPPORT;BEACON
|
|
| 10. |
534-00062
|
[1] |
LAMP;ROTATING BEACON
|
K1038193
|
| 10. |
K1038193
|
[1] |
LAMP;ROTATING BEACON
|
|
| 10A. |
515-00013
|
[1] |
BULB;HALOGEN 24V 70W
|
|
| 10A. |
K9002793
|
[1] |
SHAFT ASS'Y
|
|
| 2. |
S5010513
|
[2] |
WASHER
|
|
| 3. |
S5102503
|
[2] |
. WASHER
|
|
| 4. |
S0508653
|
[2] |
BOLT
|
|
| 5. |
195-02925A
|
[1] |
BRACKET
|
|
| 6. |
S0512053
|
[2] |
BOLT
|
|
| 7. |
S5100503
|
[2] |
WASHER
|
|
| 8. |
K1010065
|
[1] |
HARNESS;JOINT
|
|
| 9. |
161-00404
|
[1] |
RUBBER
|
|
