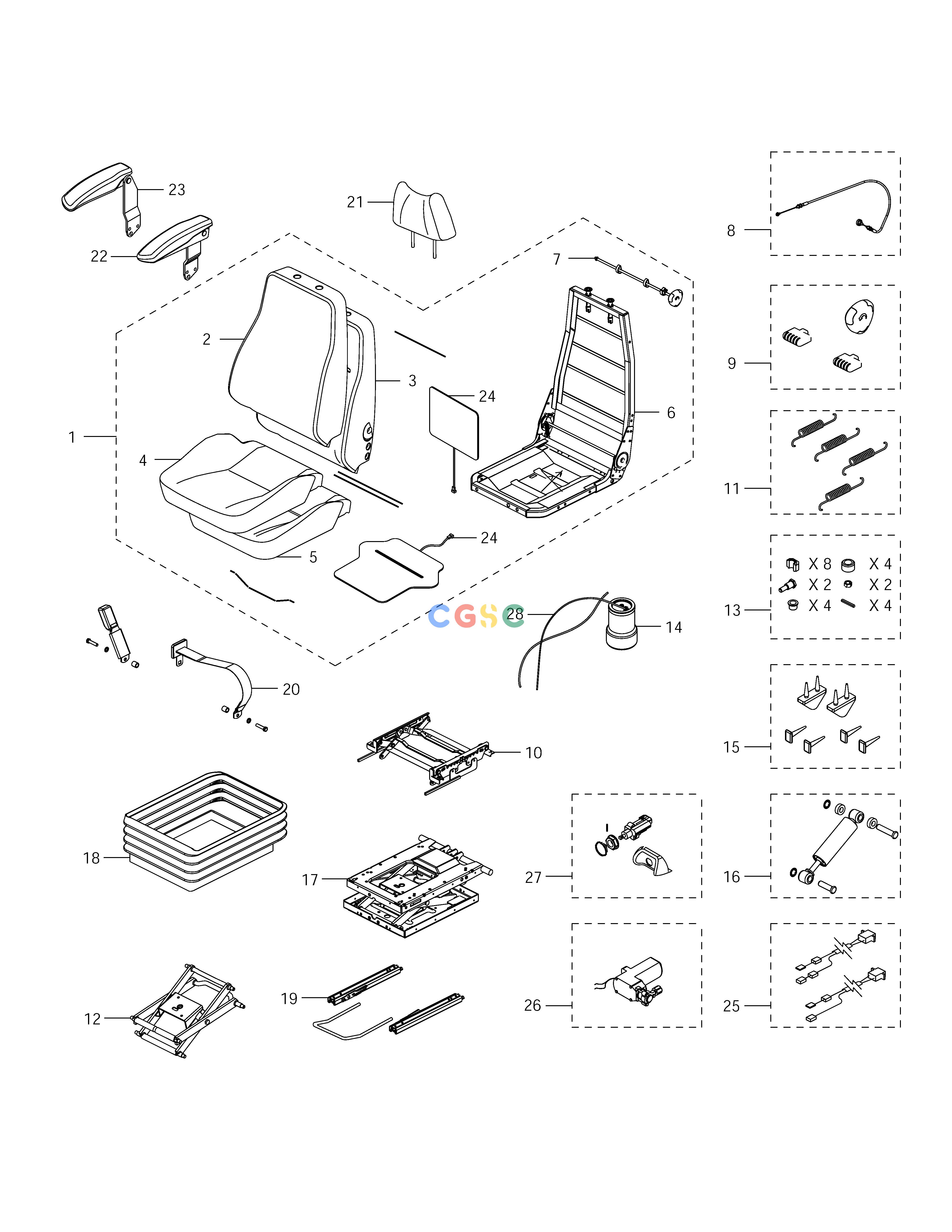

斗山零件查询SEAT - HEATER DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
504 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
901-00047
|
[1] |
SEAT ASS'Y
|
|
| 1. |
K9001200
|
[1] |
UPPER ASS'Y
|
|
| 10. |
K9001208
|
[1] |
HEIGHT RISER
|
|
| 11. |
K9001209
|
[1] |
HEIGHT RISER SPRING KIT
|
|
| 12. |
K9001673
|
[1] |
LEVER/CENTRE PIVOT KIT
|
|
| 13. |
K9001674
|
[1] |
BEARING KIT
|
|
| 14. |
K9001675
|
[1] |
AIR SPRING KIT
|
|
| 15. |
K9001213
|
[1] |
UPSTOP/BUMPSTOP KIT
|
|
| 16. |
K9001676
|
[1] |
DAMPER KIT
|
|
| 17. |
K9001677
|
[1] |
SUSPENSION ASS'Y
|
|
| 18. |
K9001678
|
[1] |
SUSPENSION COVER
|
|
| 19. |
K9001217
|
[1] |
SLIDING RAIL ASS'Y
|
|
| 2. |
K9001201
|
[1] |
BACK COVER
|
|
| 20. |
K9001218
|
[1] |
BELT;SEAT
|
|
| 21. |
K9001219
|
[1] |
HEAD REST
|
|
| 22. |
K9001220
|
[1] |
ARM REST-L.H
|
|
| 23. |
K9001221
|
[1] |
ARM REST-R.H
|
|
| 24. |
K9001223
|
[1] |
HEATER ASS'Y
|
|
| 25. |
K9001679
|
[1] |
HARNESS ASS'Y
|
|
| 26. |
K9001680
|
[1] |
COMPRESSOR KIT
|
|
| 27. |
K9001681
|
[1] |
AIR VALVE KIT
|
|
| 28. |
K9001682
|
[1] |
PIPE KIT
|
|
| 3. |
K9001202
|
[1] |
BACK FOAM
|
|
| 4. |
K9001203
|
[1] |
SEAT COVER
|
|
| 5. |
K9001204
|
[1] |
SEAT FOAM
|
|
| 6. |
K9001205
|
[1] |
FRAME
|
|
| 7. |
K9001206
|
[1] |
LUMBAR KIT
|
|
| 8. |
K9001207
|
[1] |
CABLE
|
|
| 9. |
2.172-00003
|
[1] |
HANDLE
|
|
