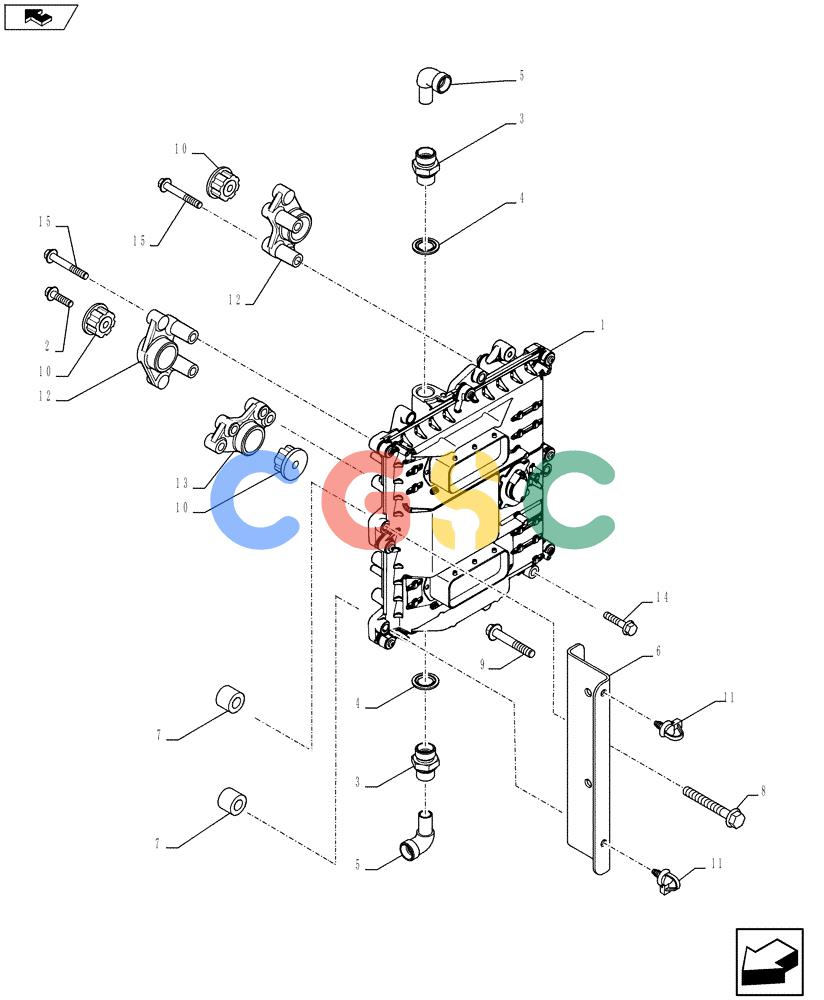

纽荷兰零件查询(F3DFA613B E003) - ENGINE 504384985 - 84250911 W/BRAKE (55.414.01[01]) - ELECTRONIC INJECTION (504386735) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
190 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504388754 | [1] | ASSY | CONTROL UNIT |
| 1. | 504388754R | [1] | TIER 2 CURSOR 13 W/BRAKE, F3DFA613B E003 ENGINE 504384985 - 84250911 | REMAN-ELECTRONIC CONTROL UNIT |
| 1. | 504388754C | [1] | Return Number | CORE-ELECTRONIC CONTROL UNIT |
| 2. | 16585925 | [4] | SCREW,Hex, M6 x 25mm, Cl 8.8 | TOR |
| 3. | 504081274 | [2] | HYD CONNECTOR | TOR |
| 4. | 99489019 | [2] | SEALING WASHER | TOR Superseded by part number: 5801560870 |
| 5. | 16504114 | [2] | ELBOW | ZED |
| 6. | 5801364240 | [1] | | BRACKET, SUPPORTING |
| 7. | 61319288 | [2] | SPACER | LEC |
| 8. | 16592325 | [2] | BOLT,M8 x 60mm | ASTM8 x 60 |
| 9. | 16586825 | [1] | BOLT,Hex, M8 x 1.25 x 45mm | TORM8 x 45 |
| 10. | 98498817 | [6] | ISOLATOR | TOR Superseded by part number: 2855150 |
| 11. | 504023286 | [2] | CLIP,200mm L | AST |
| 12. | 504368710 | [2] | BRACKET | TORM6 x 25 |
| 13. | 504297839 | [1] | BRACKET | TOR |
| 14. | 2854083 | [2] | BOLT,Flng, M6 x 1 x 30mm | TOR Superseded by part number: 16586025 |
| 15. | 17935001 | [4] | SELF-TAP SCREW,Hex Flng, M5.5 x 1.8 x 45mm | TOR |
