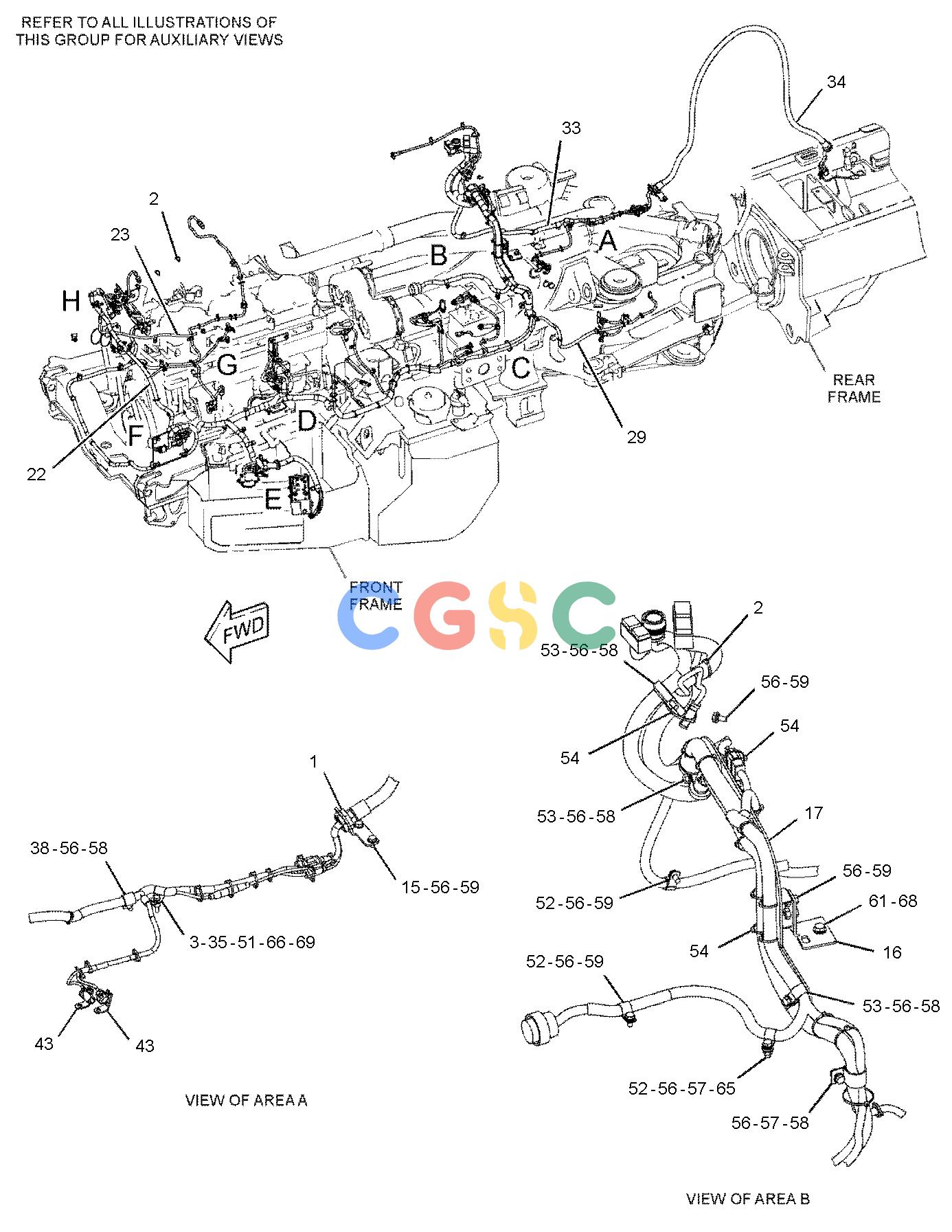

| 1. | 2V-2043 | [1] | NUT-BULKHEAD(1-5/8-12-THD) | |
| 2. | 3S-2093 | [105] | STRAP-CABLE | |
| 3. | 6H-7127 | [1] | SPACER(13/32X5/8X9/16-IN THK) | |
| 4. | 069-4447 | [1] | SPACER(12.45X19.01X28.6-MM THK) | |
| 5. | 102-2240Y | [1] | SENSOR GP-TEMPERATURE(3-PIN)(OUTPUT TRANSFER GEAR OIL) | |
| 6. | 114-5333 | [1] | SWITCH AS-PRESSURE(REFRIGERANT) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1386E | | SLEEVE(25-CM) | |
| 7. | 116-8247 | [1] | PLATE-INSTRUCTION(HOOD TILT) | |
| 8. | 118-3534Y | [1] | SWITCH GP-MAGNETIC(24-VOLT)(START RELAY) | |
| 9. | 134-2252Y | [1] | SENSOR GP-TEMPERATURE(8-VOLT)(TORQUE CONVERTER OIL) | |
| 10. | 146-0240 | [1] | SWITCH GP-TOGGLE(LOCKING)(HOOD LOCK) | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 112-4550E | | SLEEVE(15-CM) | |
| 11. | 149-2612 | [1] | RELAY AS(24-VOLT)(START) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0852 | [4] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 12. | 165-5970Y | [1] | SWITCH GP-TOGGLE(FUEL PRIMING PUMP) | |
| 13. | 179-0006Y | [1] | SWITCH GP-MAGNETIC(24-VOLT TO 32-VOLT)(SECONDARY STEERING RELAY) | |
| 14. | 184-4574 | [1] | BRACKET | |
| 15. | 184-4575 | [1] | BRACKET | |
| 16. | 184-4576 | [1] | BRACKET-MOUNTING | |
| 17. | 185-6094 | [1] | BRACKET AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 7T-1099 | [15] | LINK | |
| 18. | 189-3158 | [2] | SUPPRESSOR-ARC | |
| 19. | 194-6722Y | [1] | SENSOR GP-PRESSURE(TURBOCHARGER INLET) | |
| 20. | 211-8021 | [1] | BRACKET | |
| 21. | 213-6947 | [1] | SWITCH GP-PRESSURE(PARKING BRAKE) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 5P-6008D | | TUBE-HEAT SHRINK(6.35-MM DIA)(0.2-M) | |
| | 8T-5677D | | SLEEVE(0.6-M) | |
| 22. | 245-5889 | [1] | HARNESS AS-ENGINE(ALTERNATOR AIR) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (KIT INCLUDES RECEPATCLE AS & WEDGE) |
| | 8N-1548 | [1] | PIN-CONNECTOR(4-GA) | |
| | 8T-8827 | [1] | BOOT(RED) | |
| | 186-3736 | [6] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0844 | [10] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| | 127-5484 | [1] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| | 155-2270 | [4] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2265 | [1] | KIT-CONNECTING PLUG(8-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 180-9339 | [3] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| | 9G-4343 | [1] | TERMINAL-RING(4-GA, 1/4-IN SCREW) | |
| 23. | 246-2621 | [1] | WIRE AS | |
| 24. | 249-0007 | [1] | PLATE AS | |
| | 7T-1099 | [2] | LINK | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| 26. | 266-6477 | [1] | SWITCH AS-PRESSURE(BRAKE OIL) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 186-3735 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(15-CM) | |
| 27. | 270-7454 | [1] | HARNESS AS-MOTOR | |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8730 | [7] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0852 | [4] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 9W-0844 | [4] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH PLUG KIT INCLUDES RECEPTACLE AS, WEDGE & INTERFACE SEAL) |
| 28. | 276-0149Y | [1] | PANEL GP-CIRCUIT BREAKER | |
| 29. | 278-2265 | [1] | HARNESS AS-TRANSMISSION | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 7G-7917 | [13] | PLUG-SEAL | |
| | 8N-1514 | [1] | PLUG AS-CONNECTOR(37-PIN) | |
| | 8N-1521 | [1] | BELL AS-END | |
| | 8T-8737 | [28] | PLUG-SEAL | |
| | 9X-4391 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 9X-5615 | [2] | SEAL(INTERFACE, 70-PIN) | |
| | 9X-6772 | [1] | STRAP-CABLE | |
| | 9X-6857 | [24] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8729 | [8] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8730 | [47] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0852 | [6] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 9W-0844 | [19] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(10-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(15-CM) | |
| | 155-2270 | [6] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2260 | [3] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 30. | 303-2994 | [1] | HARNESS AS-PUMP | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8730 | [4] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 31. | 313-5104 | [1] | SWITCH AS-PRESSURE(PRIMARY STEERING OIL) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(28-CM) | |
| 32. | 321-8213 | [1] | BRACKET AS | |
| 33. | 325-6949 | [1] | HARNESS AS-CHASSIS(RH) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | 102-8806 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 8T-8729 | [7] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8730 | [10] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0852 | [6] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 9W-0844 | [6] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 125-7874E | [1] | TUBE-HEAT SHRINK(5.72-MM DIA)(5-CM) | |
| | 155-2255 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 34. | 325-6952 | [1] | HARNESS AS-CHASSIS(HITCH) | |
| | 4S-6679 | [2] | ADAPTER | |
| | 8T-8737 | [4] | PLUG-SEAL | |
| | 186-3736 | [10] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0844 | [12] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2265 | [2] | KIT-CONNECTING PLUG(8-PIN) | |
| | 155-2260 | [2] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 35. | 124-0174 | [2] | CLIP(LOOP) | |
| 36. | 3J-1907 | [4] | SEAL-O-RING | |
| 37. | 3K-0360 | [2] | SEAL-O-RING | |
| 38. | 3S-8665 | [2] | CLIP(LOOP) | |
| 39. | 4D-7388 | [1] | CLIP(LOOP) | |
| 40. | 4D-8123 | [1] | CLIP | |
| 41. | 4P-7429 | [1] | CLIP(LADDER) | |
| 42. | 4P-7581 | [10] | CLIP(LADDER) | |
| 43. | 4P-8134 | [7] | CLIP(LADDER) | |
| 44. | 5C-2890M | [5] | NUT(M6X1-THD) | |
| 45. | 5C-9553M | [9] | BOLT(M6X1X16-MM) | |
| 46. | 5K-3294 | [1] | CLIP | |
| 47. | 5P-4115 | [2] | WASHER-HARD(7.2X19X2-MM THK) | |
| 48. | 5P-7854 | [1] | CLIP | |
| 49. | 5P-9085 | [7] | CLIP(LOOP) | |
| 50. | 5P-9297 | [1] | CLIP(LOOP) | |
| 51. | 6D-3479 | [8] | CLIP(LOOP) | |
| 52. | 6D-4246 | [5] | CLIP(LOOP) | |
| 53. | 7C-4354 | [14] | CLIP | |
| 54. | 7K-1181 | [29] | STRAP-CABLE | |
| 55. | 8M-2773 | [1] | CLIP(LOOP) | |
| 56. | 8T-4121 | [60] | WASHER-HARD(11X21X2.5-MM THK) | |
| 57. | 8T-4133M | [10] | NUT(M10X1.5-THD) | |
| 58. | 8T-4136M | [16] | BOLT(M10X1.5X25-MM) | |
| 59. | 8T-4137M | [26] | BOLT(M10X1.5X20-MM) | |
| 60. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 61. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 62. | 8T-4179M | [1] | BOLT(M12X1.75X20-MM) | |
| 63. | 8T-4182M | [1] | BOLT(M10X1.5X45-MM) | |
| 64. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 65. | 8T-4195M | [5] | BOLT(M10X1.5X30-MM) | |
| 66. | 8T-4197M | [1] | BOLT(M8X1.25X40-MM) | |
| 67. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 68. | 8T-4223 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 69. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 70. | 8T-6466M | [1] | BOLT(M10X1.5X60-MM) | |
| 71. | 9M-4972 | [1] | CLIP(LOOP) | |
| 72. | 9M-8406 | [1] | CLIP(LOOP) | |
| 73. | 9X-7378 | [1] | SEAL-O-RING | |
| 74. | 9X-8256 | [16] | WASHER(6.6X12X2-MM THK) | |
| 75. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 76. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| 77. | 274-3774 | [1] | CAP-CONNECTOR | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
