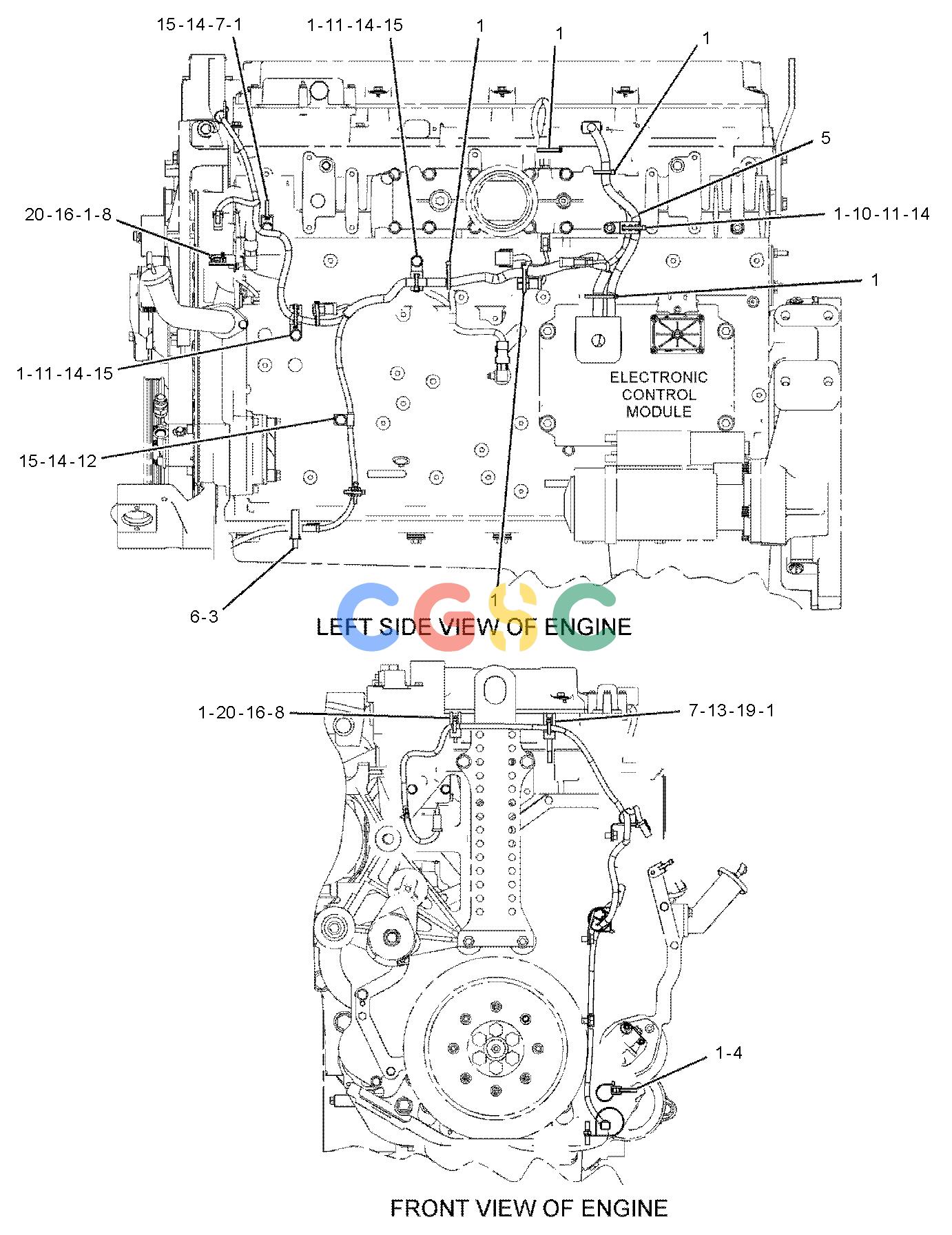

卡特零件查询（725） 219-7462: WIRING GP-ELECTRONIC CONTROL
广数供应链运营团队, 14 02月, 2025，浏览：
959 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [15] | STRAP-CABLE | |
| 3. | 9X-2097M | [1] | STUD(M8X1.25-THD) | |
| 4. | 206-2423 | [1] | SADDLE-MOUNTING | |
| 5. | 219-7461 | [1] | HARNESS AS-CONTROL(ELECTRONIC CONTROL MODULE) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8803 | [2] | KIT-RECEPTACLE(3-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 3S-2093 | [2] | STRAP-CABLE | |
| | 8T-8737 | [81] | PLUG-SEAL | |
| | 105-1797 | [1] | MOUNT | |
| | 155-2255 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2265 | [1] | KIT-CONNECTING PLUG(8-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [5] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 194-5226 | [62] | WIRE AS(16-GA) | |
| | | | -OR- |
| | 194-5227 | [62] | WIRE AS(14-GA) | |
| | 9X-3401 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [6] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 211-6807 | [1] | COVER-CONNECTOR | |
| | 264-5732 | [1] | PLUG AS-CONNECTOR(120-PIN) | |
| | 288-7324 | [1] | SEAL-CONNECTOR | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(5-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(15-CM) | |
| 6. | 303-5952 | [1] | STRAP-CABLE | |
| 7. | 132-5789 | [2] | CLIP(LADDER) | |
| 8. | 156-6175 | [2] | CLIP(LADDER) | |
| 10. | 2Y-5829M | [1] | NUT(M10X1.5-THD) | |
| 11. | 4P-7581 | [3] | CLIP(LADDER) | |
| 12. | 5P-9085 | [1] | CLIP(LOOP) | |
| 13. | 6V-3918M | [1] | BOLT(M8X1.25X50-MM) | |
| 14. | 6V-5839 | [5] | WASHER(11X21X2.5-MM THK) | |
| 15. | 6V-8212M | [4] | BOLT(M10X1.5X16-MM) | |
| 16. | 6V-8836M | [2] | BOLT(M6X1X14-MM) | |
| 19. | 9M-1974 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 20. | 9X-8267 | [2] | WASHER(6.6X12X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
