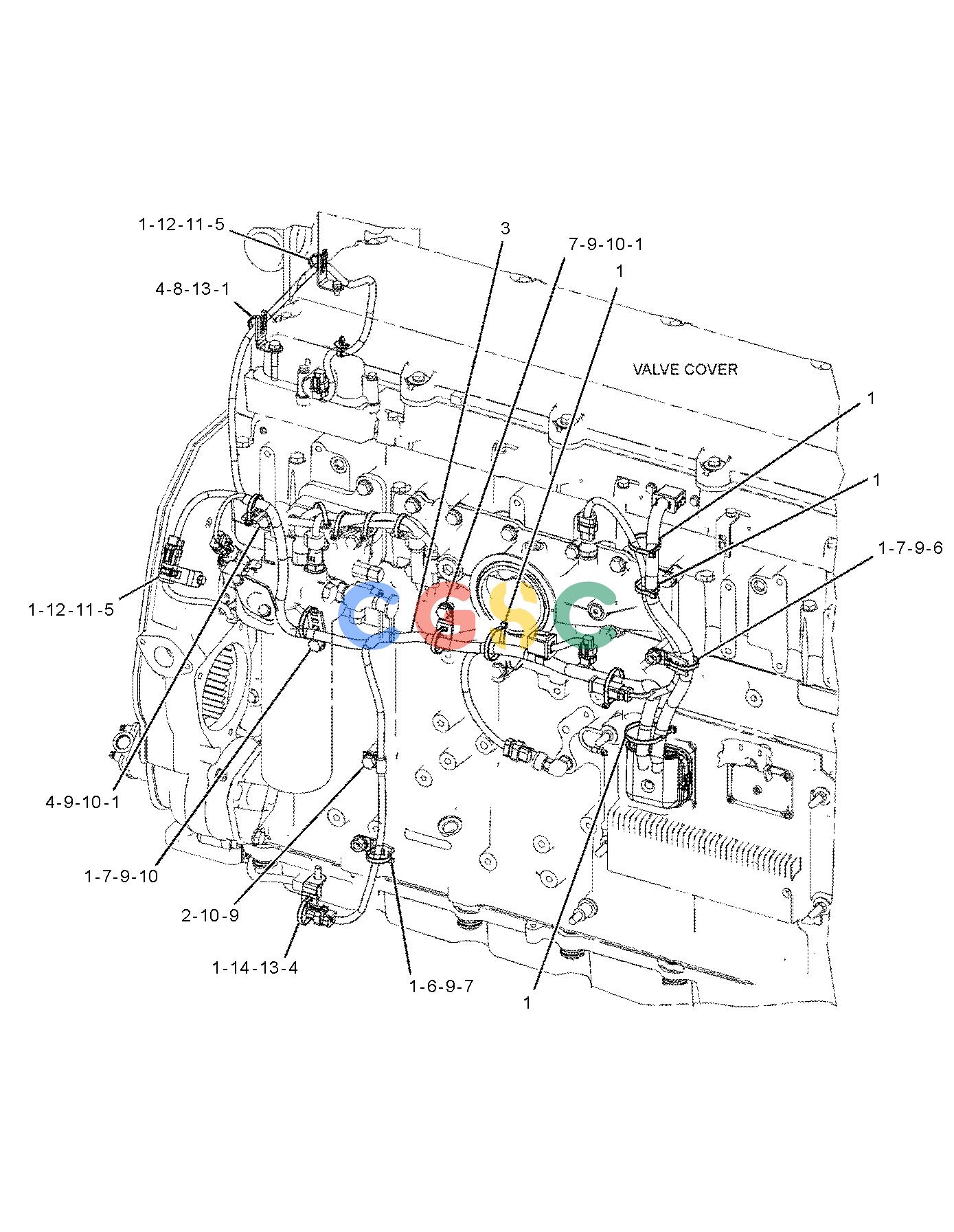

卡特零件查询（725） 354-0045: WIRING GP-ELECTRONIC CONTROL
广数供应链运营团队, 14 02月, 2025，浏览：
952 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [13] | STRAP-CABLE | |
| 2. | 5P-9085 | [1] | CLIP(LOOP) | |
| 3. | 354-0048Y | [1] | HARNESS AS-ENGINE | |
| 4. | 132-5789 | [3] | CLIP(LADDER) | |
| 5. | 156-6175 | [2] | CLIP(LADDER) | |
| 6. | 2Y-5829M | [2] | NUT(M10X1.5-THD) | |
| 7. | 4P-7581 | [4] | CLIP(LADDER) | |
| 8. | 6V-3918M | [1] | BOLT(M8X1.25X50-MM) | |
| 9. | 6V-5839 | [6] | WASHER(11X21X2.5-MM THK) | |
| 10. | 6V-8212M | [4] | BOLT(M10X1.5X16-MM) | |
| 11. | 6V-8836M | [2] | BOLT(M6X1X14-MM) | |
| 12. | 9X-8267 | [2] | WASHER(6.6X12X2-MM THK) | |
| 13. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 14. | 9X-2097M | [1] | STUD(M8X1.25-THD) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
