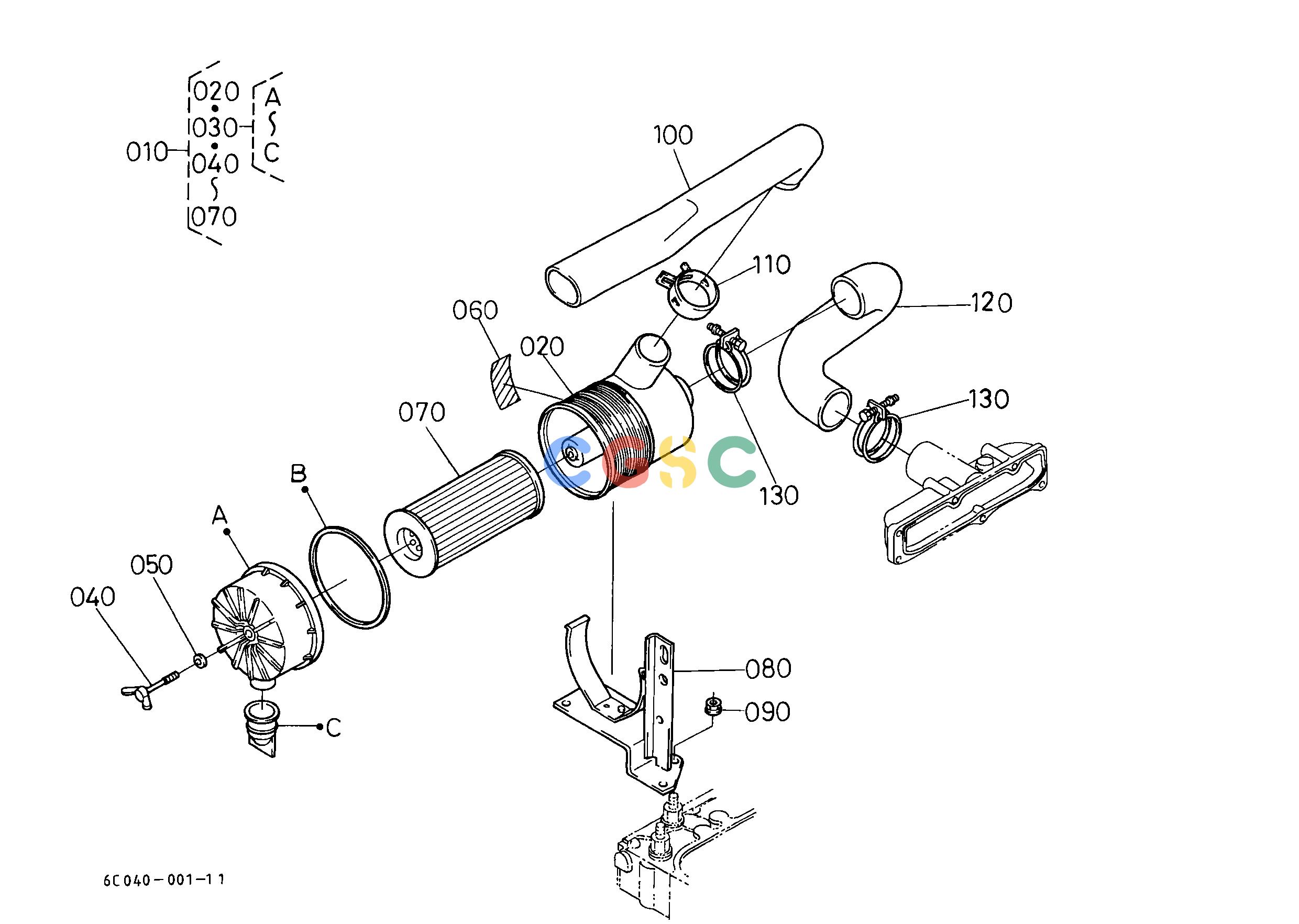

久保田零件查询060301 AIR CLEANER ## S.No.<=50558 ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
1027 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04058201
|
[1] |
ASSY CLEANER,AIR
|
0.0000(lbs); 0.000
|
| 020. |
6C04082511
|
[1] |
BODY,AIR CLEANER
|
0.0000(lbs); 0.000
|
| 030. |
6798082553
|
[1] |
ASSY COVER,A/C
|
0.2200(lbs); 0.100
|
| 040. |
T007016342
|
[1] |
BOLT,WING
|
0.0462(lbs); 0.021
|
| 050. |
6798082611
|
[1] |
WASHER
|
0.0000(lbs); 0.000
|
| 060. |
6798082621
|
[1] |
LABEL,CAUTION
|
0.0000(lbs); 0.000
|
| 070. |
6798082631
|
[1] |
ASSY ELEMENT
|
0.0000(lbs); 0.000
|
| 080. |
6C04058233
|
[1] |
BRACKET,AIR CLEANER
|
1.1660(lbs); 0.530
|
| 090. |
0213150100
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 100. |
6C04058251
|
[1] |
HOSE,INLET
|
0.0000(lbs); 0.000
|
| 100. |
6C04058253
|
[1] |
HOSE,INLET
|
0.2640(lbs); 0.120
|
| 110. |
1526111721
|
[1] |
BAND,PIPE
|
0.0000(lbs); 0.000
|
| 120. |
6C04058261
|
[1] |
HOSE,INLET
|
0.0000(lbs); 0.000
|
| 130. |
6795558261
|
[2] |
BAND,AIR CLEANER
|
0.0000(lbs); 0.000
|
