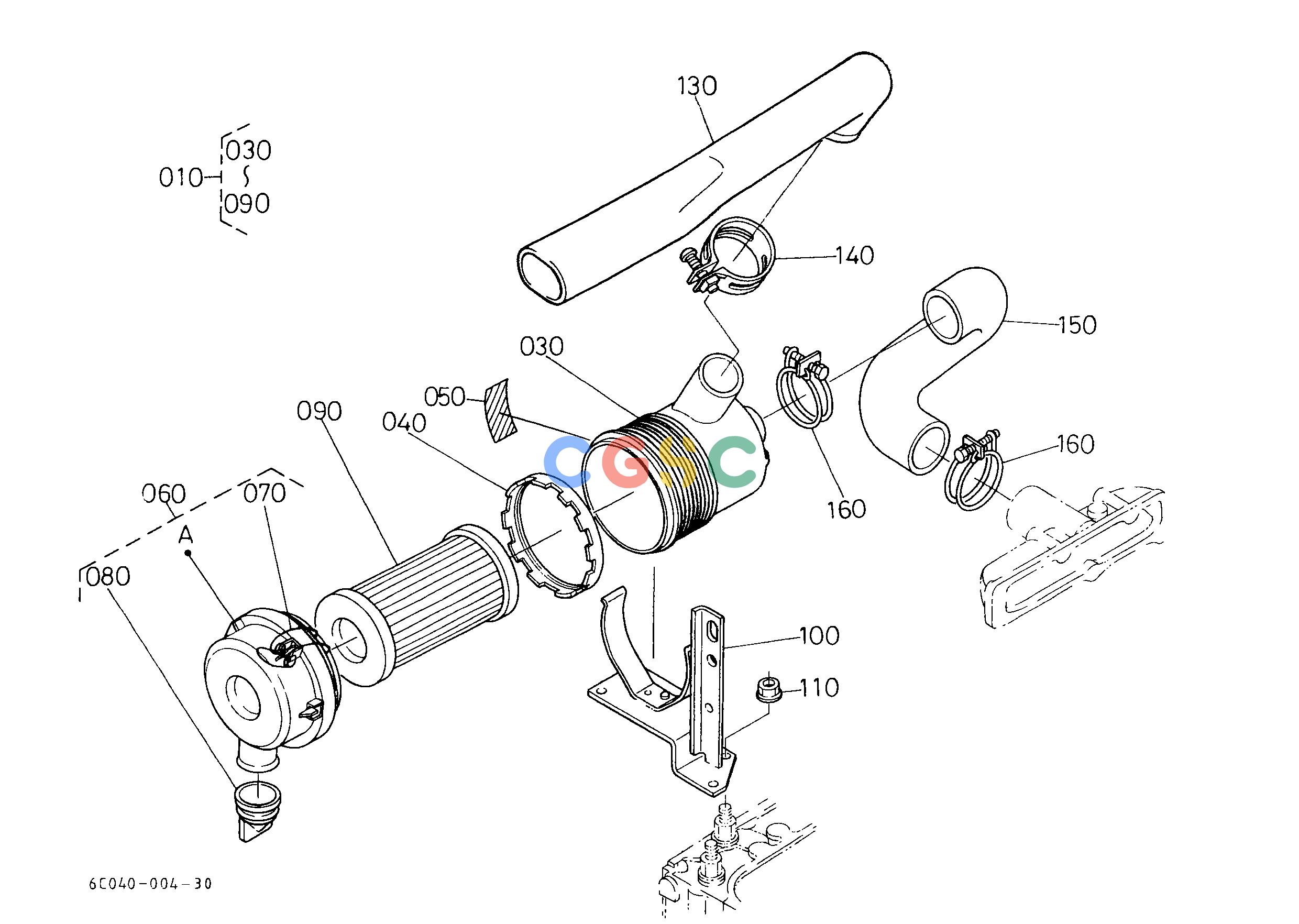

久保田零件查询060302 AIR CLEANER ## S.No.=>50559 ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
715 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6A10058200
|
[1] |
CLEANER,AIR,ASSY
|
1.2980(lbs); 0.590
|
| 030. |
6A10082520
|
[1] |
BODY(CLEANER,AIR)
|
0.5060(lbs); 0.230
|
| 040. |
6A10082530
|
[1] |
GASKET
|
0.0660(lbs); 0.030
|
| 050. |
6798082620
|
[1] |
LABEL,CAUTION
|
0.0022(lbs); 0.001
|
| 060. |
6A10082550
|
[1] |
ASSY COVER,A/C
|
0.3938(lbs); 0.179
|
| 070. |
6A10082570
|
[2] |
SPRING
|
0.0110(lbs); 0.005
|
| 080. |
6798082580
|
[1] |
VALVE,UNLOADER
|
0.0242(lbs); 0.011
|
| 090. |
6A10082630
|
[1] |
ELEMENT,ASSY
|
0.6600(lbs); 0.300
|
| 100. |
6C04058233
|
[1] |
BRACKET,AIR CLEANER
|
1.1660(lbs); 0.530
|
| 110. |
0213150100
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 130. |
6C04058253
|
[1] |
HOSE,INLET
|
0.2640(lbs); 0.120
|
| 140. |
1526111720
|
[1] |
BAND,PIPE
|
0.0660(lbs); 0.030
|
| 150. |
6C04058260
|
[1] |
HOSE,INLET
|
0.5940(lbs); 0.270
|
| 160. |
6795558260
|
[2] |
BAND,AIR CLEANER
|
0.0616(lbs); 0.028
|
