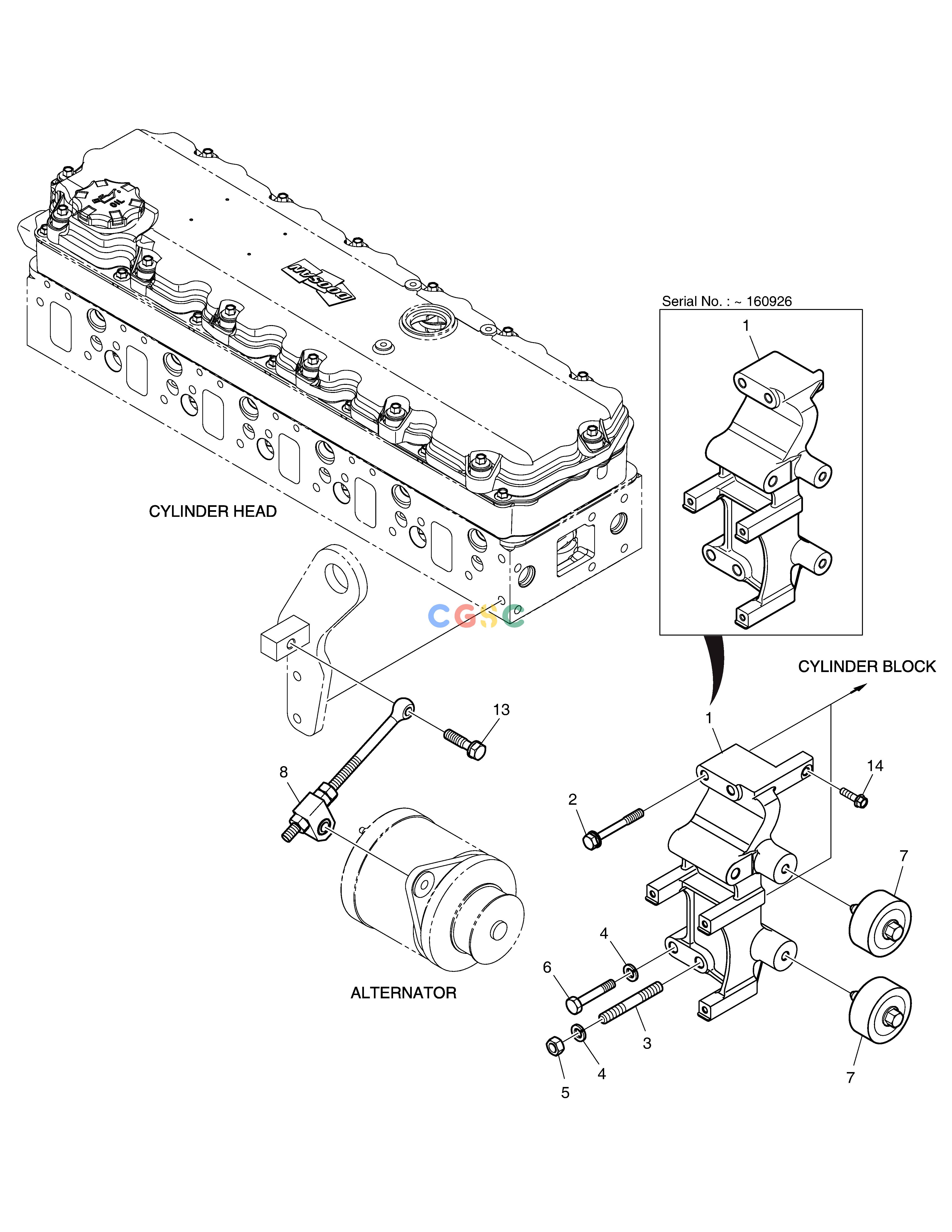

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 110403-00047A | [1] | ||
| 1. | 110403-00047B | [1] | ||
| 1. | 110403-00047C | [1] | ||
| 13. | 06.01943-3321 | [1] | ||
| 14. | 120106-00177 | [1] | ||
| 2. | 06.01923-3228 | [2] | BOLT ASS'Y M10X85 | |
| 3. | 120117-00047 | [1] | ||
| 4. | 06.16731-2109 | [1] | WASHER;SPRING A12 | |
| 5. | 06.11024-9203 | [1] | NUT;HEX. M12X1.5 | |
| 6. | 06.01493-4312 | [1] | BOLT;HEX. M12X1.5X65 | |
| 7. | 130710-00008 | [1] | ||
| 8. | 120102-00062 | [2] |
