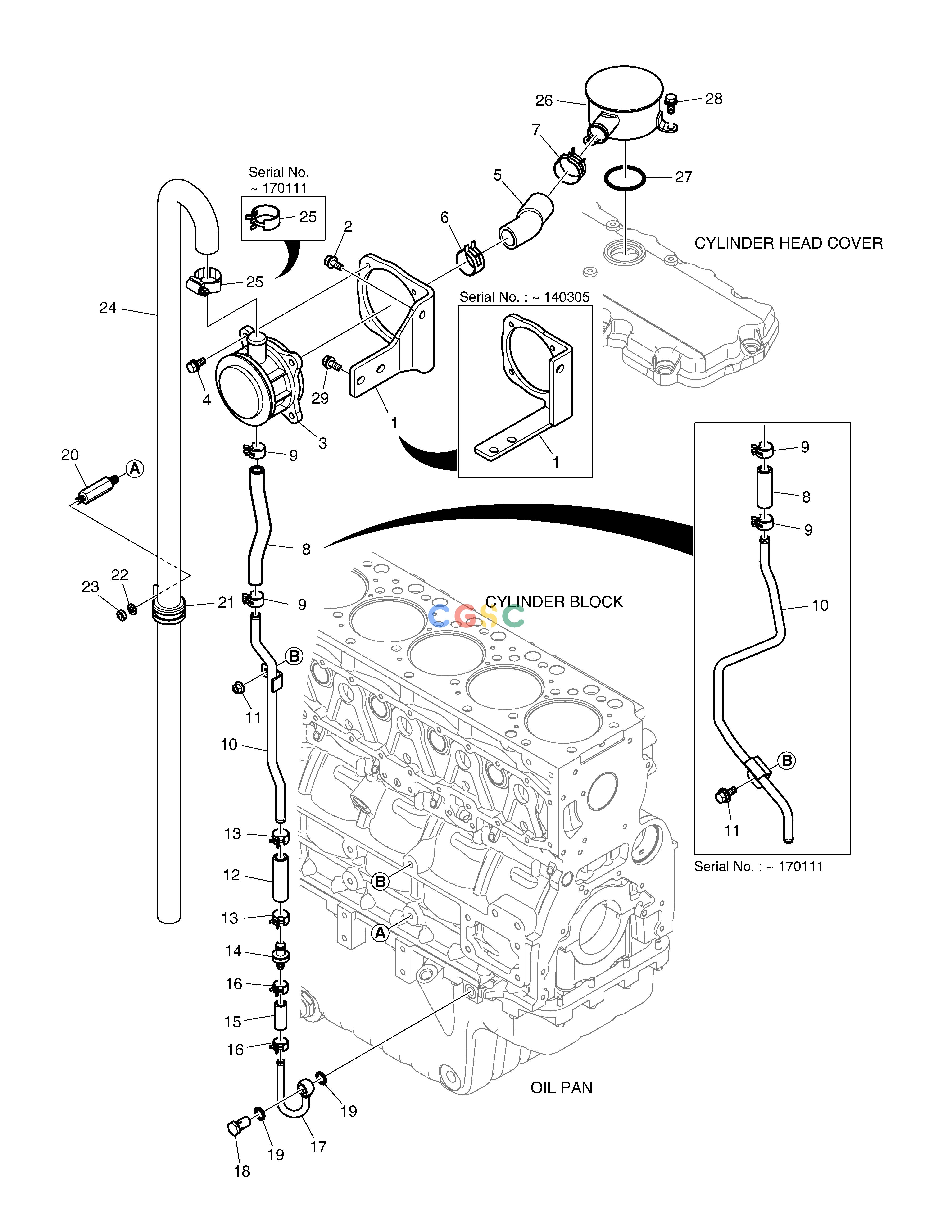

斗山零件查询BREATHER SYSTEM DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
444 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
110436-00101
|
[1] |
|
|
| 1. |
110440-00015
|
[1] |
|
110440-00015A
|
| 1. |
110440-00015A
|
[1] |
|
|
| 10. |
420215-00032
|
[1] |
|
|
| 10. |
420215-00055A
|
[1] |
|
|
| 11. |
06.01923-3212
|
[1] |
BOLT ASS'Y
|
|
| 11. |
65.90535-0003
|
[1] |
NUT
|
|
| 12. |
65.96301-0551
|
[1] |
|
|
| 13. |
65.97402-0025
|
[2] |
CLAMP
|
|
| 14. |
410104-00025
|
[1] |
CHECK VALVE ASS'Y
|
|
| 15. |
65.96301-0535
|
[1] |
HOSE;RUBBER
|
|
| 15. |
420108-01375
|
[1] |
|
|
| 16. |
65.97402-0015
|
[2] |
CLIP;HOSE
|
|
| 17. |
420215-00033
|
[1] |
|
|
| 18. |
06.78144-2404
|
[1] |
SCREW;HOLLOW
|
|
| 19. |
65.96507-0043
|
[2] |
. RING;SEAL
|
|
| 2. |
06.01923-3114
|
[1] |
BOLT ASS`Y M8X22
|
|
| 20. |
65.90201-0122
|
[1] |
BOLT;STUD
|
|
| 20. |
06.01913-3212
|
[1] |
BOLT ASS'Y M10X18
|
|
| 21. |
65.97401-5019
|
[1] |
CLIP;PIPE
|
|
| 21. |
65.97401-0192
|
[1] |
|
|
| 22. |
06.16731-2107
|
[1] |
WASHER
|
|
| 23. |
06.11063-8214
|
[1] |
. NUT
|
|
| 24. |
65.96301-0441
|
[1] |
HOSE
|
|
| 25. |
06.67020-0105
|
[1] |
CLAMP
|
|
| 25. |
120202-00232
|
[1] |
CLAMP,HOSE
|
|
| 26. |
110972-00005
|
[1] |
HOUSING;BREATHER
|
|
| 27. |
401002-00082
|
[1] |
O-RING
|
|
| 28. |
06.01923-3113
|
[3] |
BOLT ASS`Y M8X20
|
|
| 29. |
06.01923-3218
|
[2] |
BOLT ASS`Y M10X35
|
|
| 3. |
110972-00036
|
[1] |
|
|
| 4. |
06.01923-3114
|
[4] |
BOLT ASS`Y M8X22
|
|
| 5. |
420101-00477
|
[1] |
|
|
| 6. |
65.97402-0042
|
[1] |
|
|
| 7. |
65.97402-0043
|
[1] |
|
|
| 8. |
65.96301-0551
|
[1] |
|
|
| 8. |
420108-01701
|
[1] |
|
|
| 9. |
65.97402-0025
|
[2] |
CLAMP
|
|
