神钢零件查询(6D14-T) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (03-004) - FUEL INJECTION PUMP GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
151 次

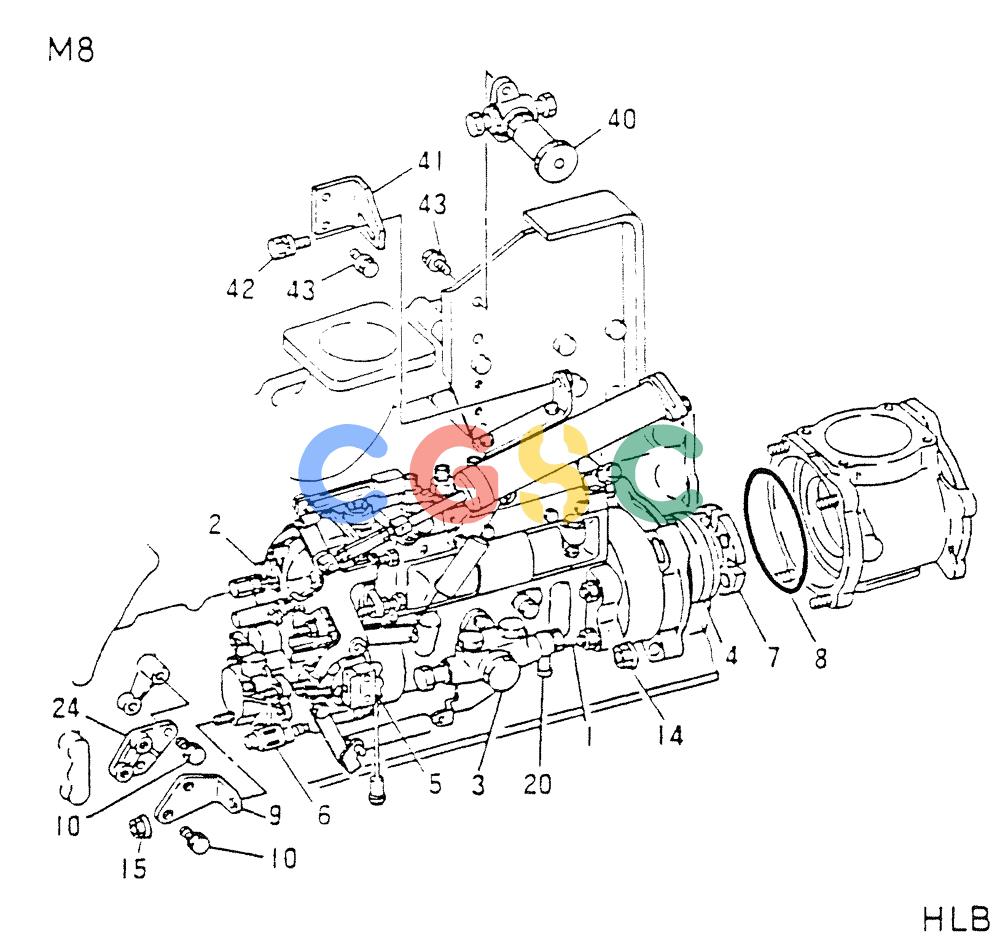

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-6. | VAME047340 | [1] | INJECTION PUMP GENERAL ASSY | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONINJECTION PUMP ASSY AD TYPE |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONGOVERNOR ASSY RFD TYPE |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONFUEL FEED PUMP ASSY |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONAUTOMATIC TIMER ASSY |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONSWITCH,MICRO |
| 6. | VAME066028 | [1] | CAP,SEAL | |
| 7. | VAME035679 | [1] | CLUTCH DISC | KOBCLUTCH DISK DISK,DRIVING Superseded by part number: VAME076553 |
| 8. | VAMH035500 | [1] | O-RING | KOBO-RING 140 |
| 9. | VAME036954 | [1] | STAY.I/P | |
| 10. | VAMF140223 | [4] | BOLT | KOBBOLT,FLANGE 8X16 |
| 14. | VAMF434105 | [4] | NUT | KOBNUT,FLANGE 10 |
| 15. | VAMF434105 | [1] | NUT | KOBNUT,FLANGE 10 |
| 20. | VAMH037116 | [1] | FLEXIBLE JOINT | KOBJOINT,SWIVELING 10 |
| 24. | VAME036955 | [1] | SPACER | |
| 40. | VAME047346 | [1] | PUMP,PRIMING | |
| 41. | VAME047342 | [1] | BRACKET,AIR CYL | |
| 42. | VAMF244880 | [1] | SCREW | KOBBOLT,W/WSR 10X25 |
| 43. | VAMF140223 | [4] | BOLT | KOBBOLT,FLANGE 8X16 |
