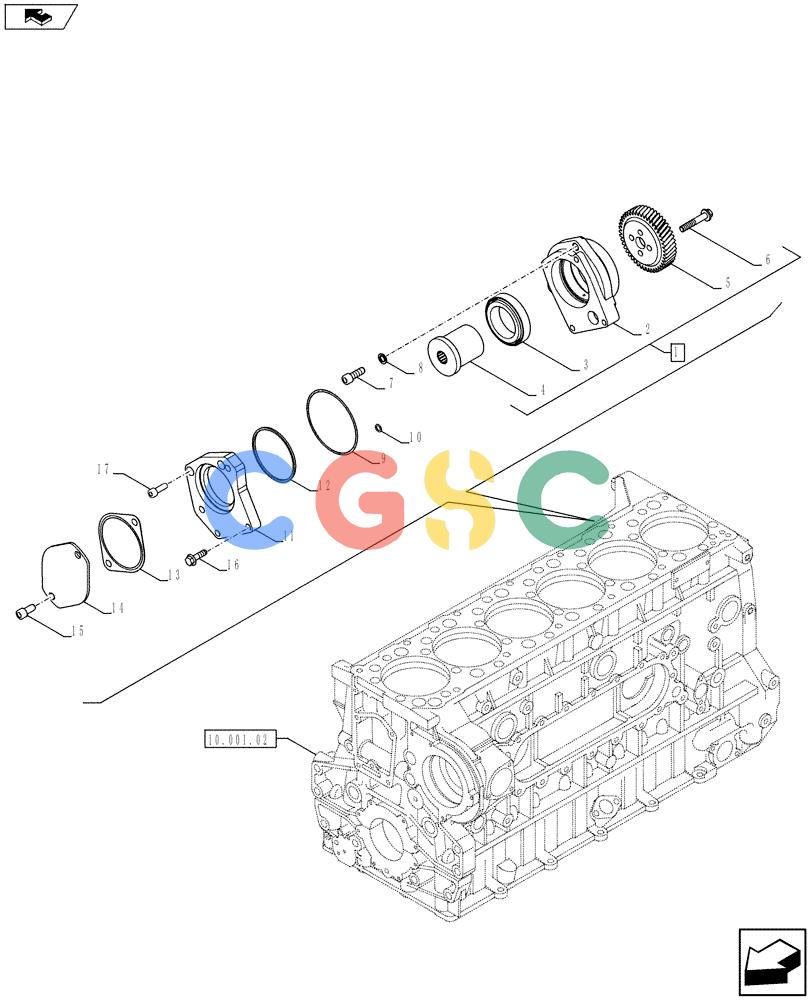

纽荷兰零件查询(F3DFA613B E004) - ENGINE 504384986 - 84550912 W/O BRAKE (10.114.02) - BELT PULLEY DRIVE & COVER (504386855) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
153 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 6. | 16675835 | [4] | SCREW,M10 x 30mm | TOR |
| 7. | 1103790 | [3] | SCREW | TOR |
| 8. | 17095224 | [3] | WASHER | LECM20 |
| 9. | 14466981 | [1] | O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro | BASD = 126.59 x 3.53 mm |
| 10. | 14456881 | [1] | O-RING,0.362" ID x 0.103" Width | JESD = 9.19 mm |
| 11. | 504061368 | [1] | SPACER | TOR |
| 12. | 504042516 | [1] | O-RING | TOR |
| 13. | 4895329 | [1] | GASKET | LEC |
| 14. | 2852175 | [1] | COVER | TOR Superseded by part number: 504049033 |
| 15. | 16692225 | [2] | BOLT | TORM10 x 30 |
| 16. | 16693724 | [2] | SCREW,M12 | TOR |
| 17. | 16587325 | [2] | SCREW,Hex, M10 x 35mm | TORM10 x 35 |
