纽荷兰零件查询(F3DFA613B E004) - ENGINE 504384986 - 84550912 W/O BRAKE (10.106.05) - PULLEY - CRANHSHAFT (504386715) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
455 次

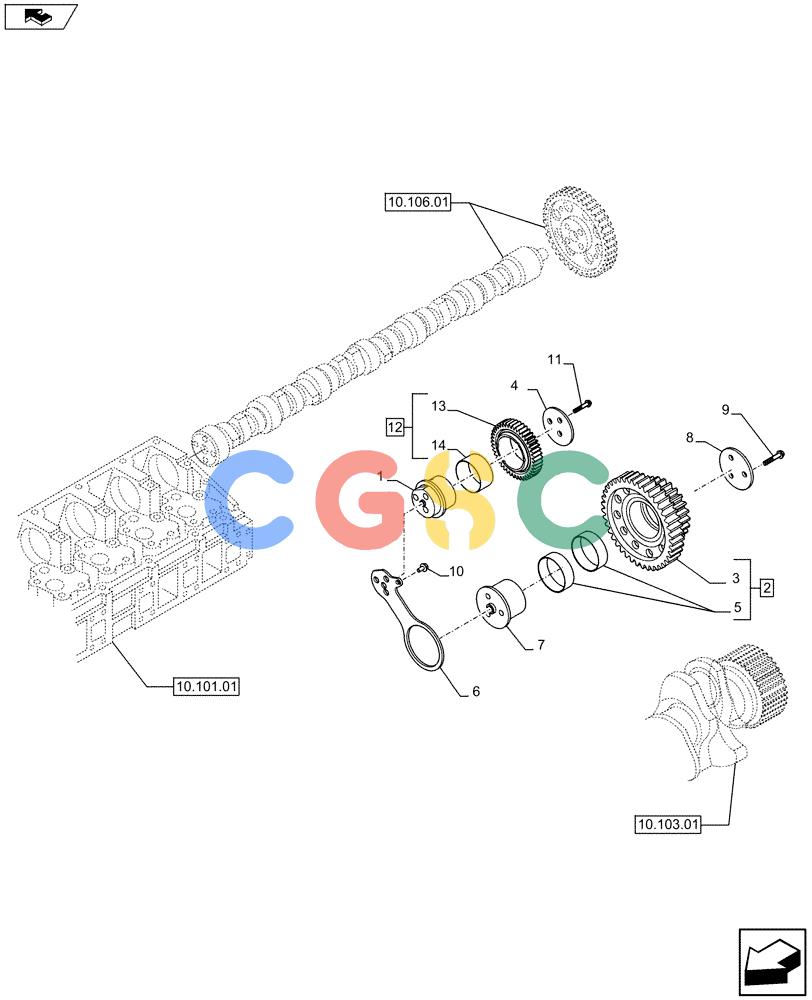

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504381665 | [1] | | PIN |
| 2. | 504369819 | [1] | ASSY Contains Ref.3, 5 | GEAR |
| 3. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 4. | 504381667 | [1] | | WASHER |
| 5. | 98475174 | [2] | BUSHING | TOR |
| 6. | 504381666 | [1] | | BRACKET |
| 7. | 504367023 | [1] | FLANGE | TOR |
| 8. | 500305012 | [1] | WASHER | TOR |
| 9. | 16679034 | [3] | BOLT,M12 x 90mm | TORM12 x 90 |
| 10. | 16586225 | [1] | BOLT,M8 x 16mm | TOR |
| 11. | 16679134 | [3] | BOLT | TOR |
| 12. | 504381662 | [1] | ASSY Contains Ref.13, 14 | GEAR |
| 14. | 504381664 | [1] | | BUSHING |
