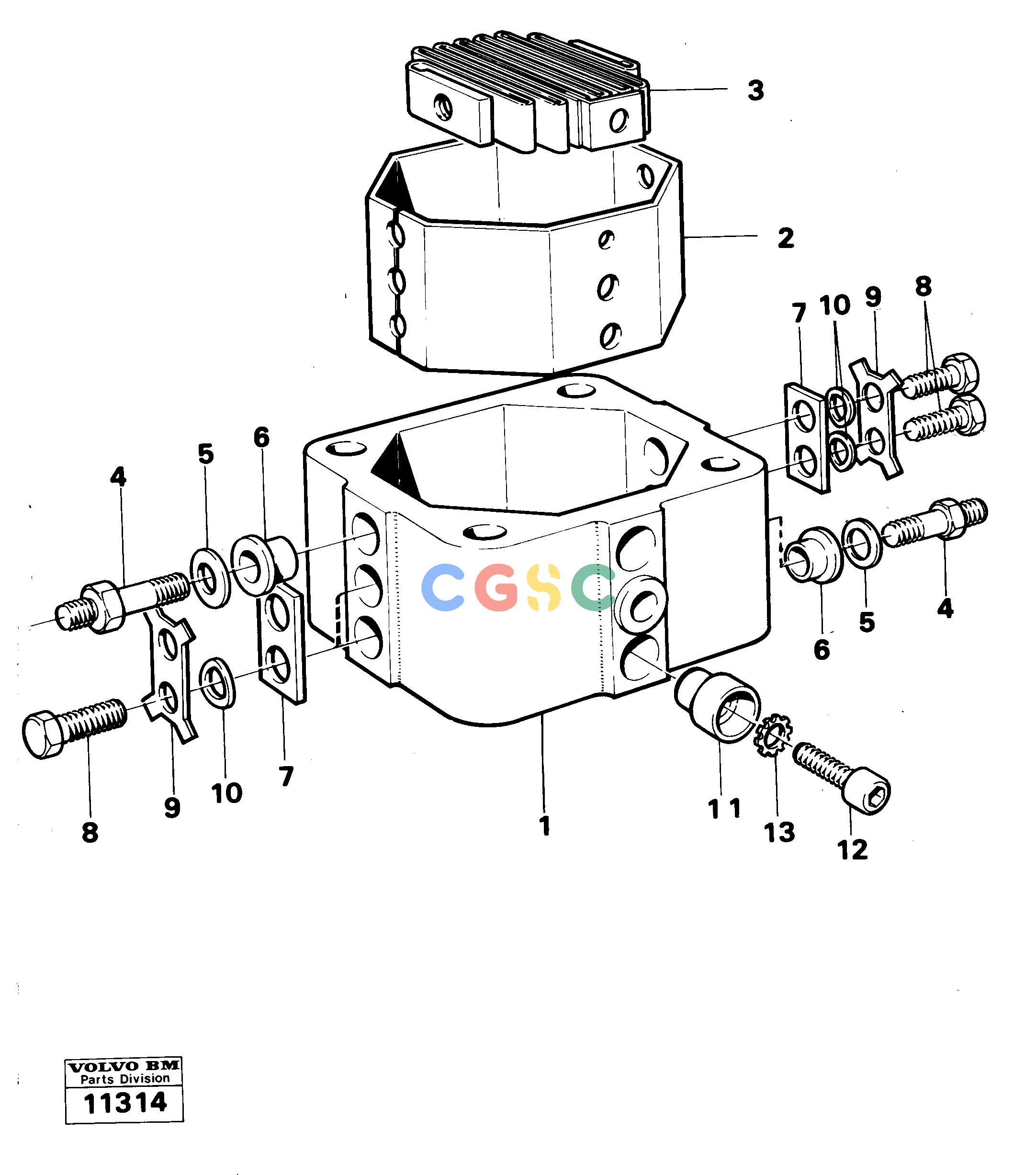

沃尔沃零件查询861 Starting heater 98981 (6374)861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
799 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE1507066
|
[0003] |
Starter Element
|
|
| 4. |
VOE1507073
|
[0002] |
Screw
|
|
| 5. |
VOE942239
|
[0002] |
Washer
|
|
| 6. |
VOE468511
|
[0006] |
Bushing
|
|
| 7. |
VOE466971
|
[0002] |
Rail
|
|
| |
VOE466437
|
[0001] |
Starter element
|
ERS AV 471203
|
| 8. |
VOE13946730
|
[0004] |
Screw
|
|
| 9. |
VOE946731
|
[0002] |
Striker plate
|
|
| 10. |
VOE13941907
|
[0006] |
Washer
|
|
| 11. |
VOE468468
|
[0002] |
Sleeve
|
|
| 12. |
VOE959189
|
[0003] |
Hex. socket screw
|
|
| 13. |
VOE942604
|
[0003] |
Toothed washer
|
|
| |
|
|
None
|
|
| 1. |
|
[0001] |
Intermediate section
|
|
| 2. |
|
[0001] |
Brake lining
|
|
