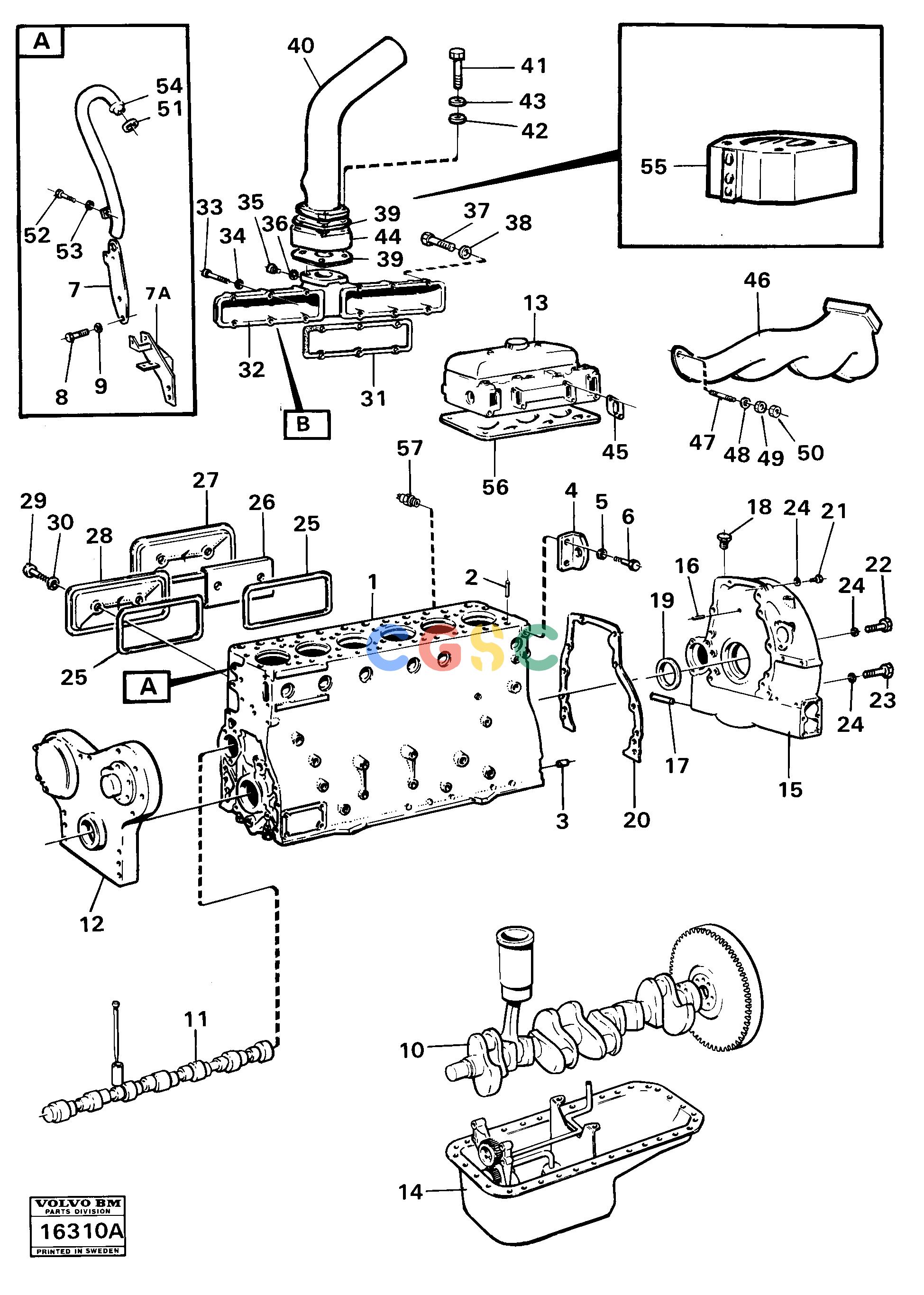

沃尔沃零件查询861 Engine with fitting parts861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
944 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE940116
|
[0004] |
Hexagon screw
|
|
| 46. |
VOE465039
|
[0001] |
Exhaust pipe
|
|
| 47. |
VOE953492
|
[0008] |
Stud
|
|
| 48. |
VOE422217
|
[0008] |
Spacer sleeve
|
|
| 49. |
VOE942299
|
[0008] |
Flange nut
|
|
| 50. |
VOE955835
|
[0008] |
Hexagon nut
|
|
| 51. |
VOE421158
|
[0001] |
Sealing ring
|
|
| 52. |
VOE13955523
|
[0001] |
Screw
|
|
| 53. |
VOE13941907
|
[0001] |
Washer
|
|
| 54. |
VOE471747
|
[0001] |
Tube
|
|
| 55. |
|
[0001] |
Starter element
|
|
| |
|
|
None
|
|
| 56. |
|
[0002] |
Set of gaskets
|
|
| 6. |
VOE13941909
|
[0004] |
Washer
|
|
| |
VOE275449
|
[0001] |
Gasket kit
|
|
| 57. |
VOE1606877
|
[0001] |
Switch
|
MO 88574 -
|
| |
VOE270762
|
[0001] |
De-carbonizing kit
|
|
| |
VOE6630501
|
[0001] |
Gasket kit
|
|
| 7. |
|
[0001] |
Iron
|
MO - 88130
|
| 7A. |
VOE4832856
|
[0001] |
Bracket
|
MO 88131 -
|
| 8. |
VOE955560
|
[0002] |
Hexagon screw
|
|
| 9. |
VOE940280
|
[0002] |
Spring washer
|
|
| 1. |
VOE465160
|
[0001] |
Cylinder Block
|
|
| 10. |
|
[0001] |
Crankshaft
|
|
| 11. |
|
[0001] |
Camshaft
|
|
| 12. |
|
[0001] |
Timing gear casing
|
|
| 13. |
|
[0002] |
Cylinder head
|
|
| 14. |
|
[0001] |
Lubricating system
|
|
| |
|
|
None
|
|
| 15. |
VOE4774388
|
[0001] |
Flywheel housing
|
|
| 16. |
VOE17229696
|
[0001] |
Pipe
|
|
| 17. |
VOE404069
|
[0001] |
Pin
|
|
| 18. |
VOE786599
|
[0001] |
Plug
|
|
| 19. |
VOE477119
|
[0001] |
Crankshaft seal
|
|
| 2. |
VOE13949020
|
[0004] |
Pin
|
|
| 20. |
VOE424620
|
[0001] |
Gasket
|
|
| 21. |
VOE955581
|
[0002] |
Hexagon screw
|
|
| 22. |
VOE955580
|
[0006] |
Hexagon screw
|
|
| 23. |
VOE955583
|
[0002] |
Hexagon screw
|
|
| 24. |
VOE941911
|
[0010] |
Spring washer
|
|
| 25. |
VOE20591544
|
[0002] |
Gasket
|
|
| 26. |
VOE421120
|
[0001] |
Hatch
|
|
| 27. |
VOE420121
|
[0001] |
Hatch
|
|
| 28. |
VOE420120
|
[0001] |
Inspection lid
|
|
| 29. |
VOE422541
|
[0004] |
Screw
|
|
| 3. |
VOE191171
|
[0002] |
Pin
|
|
| 30. |
VOE469846
|
[0002] |
Sealing ring
|
|
| 31. |
VOE3829434
|
[0002] |
Gasket
|
|
| 32. |
VOE465350
|
[0001] |
Inlet pipe
|
|
| |
VOE479979
|
[0001] |
Plug
|
|
| 33. |
VOE955530
|
[0006] |
Hexagon screw
|
L=83
|
| |
VOE955528
|
[0002] |
Hexagon screw
|
L=70
|
| |
VOE955526
|
[0004] |
Hexagon screw
|
L=51
|
| 34. |
VOE13955894
|
[0012] |
Washer
|
|
| 35. |
VOE940113
|
[0001] |
Hexagon screw
|
|
| 36. |
VOE957171
|
[0001] |
Gasket
|
|
| 4. |
|
[0002] |
Iron
|
|
| 37. |
VOE960628
|
[0001] |
Plug
|
|
| 38. |
VOE957173
|
[0001] |
Gasket
|
|
| 39. |
VOE471682
|
[0002] |
Gasket
|
|
| 40. |
VOE465251
|
[0001] |
Pipe
|
|
| |
VOE4774184
|
[0001] |
Connection pipe
|
|
| 41. |
VOE955533
|
[0002] |
Hexagon screw
|
L=102
|
| |
VOE959795
|
[0002] |
Hexagon screw
|
L=104
|
| 42. |
VOE13955894
|
[0004] |
Washer
|
|
| 43. |
VOE13941907
|
[0004] |
Washer
|
|
| 44. |
VOE4770531
|
[0001] |
Intmd Section
|
|
| 45. |
VOE420708
|
[0004] |
Gasket
|
|
