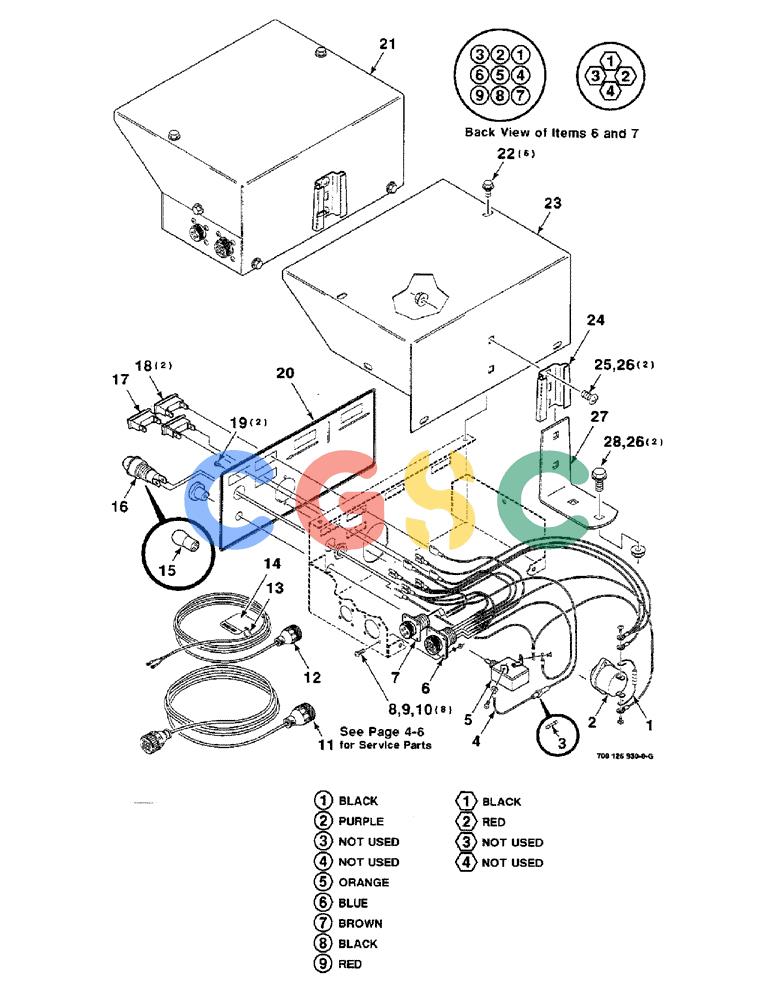

凯斯零件查询(8455) - CASE IH ROUND BALER (STANDARD) (1/92-12/99) (4-04) - ELECTRICAL CONTROL BOX AND CABLE ASSEMBLIES Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
263 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700709553
|
[1] |
RESISTOR
|
IH
(Used with all Bale Kickers)
|
| 2. |
700703984
|
[1] |
INDICATOR
|
IH
- audio
|
| 3. |
702700050
|
[1] |
FUSE
|
IH
(5 AMP) Superseded by part number: 86705048
|
| 4. |
700711019
|
[1] |
HARNESS
|
CAS
WIRE - electrical (Includes item 3)
|
| 5. |
700711048
|
[1] |
IGNITION SWITCH
|
IH
SWITCH
|
| 6. |
700707758
|
[1] |
CONTAINER
|
CAS
RECEPTACLE - electrical (9 Pin)
|
| 7. |
700707757
|
[1] |
CONTAINER
|
CAS
RECEPTACLE - electrical (4 Pin)
|
| 8. |
700707770
|
[8] |
SCREW
|
HFI
#4-40 x 3/8 CRPHMS Superseded by part number: 182-5
|
| 9. |
700701036
|
[8] |
LOCK WASHER,#4
|
HFI
Washer, Lock, #4 Superseded by part number: 84877
|
| 10. |
700701035
|
[8] |
HARDWARE
|
HFI
#4-40 H Superseded by part number: 280385
|
| 11. |
700711919
|
[1] |
CABLE
|
IH
- control, electrical
|
| 12. |
700707598
|
[1] |
WIRE HARNESS
|
IH
CABLE - control, electrical
|
| 13. |
8722431
|
[1] |
STRAP
|
CAS
TIE - cable Superseded by part number: 529070
|
| 14. |
700707683
|
[1] |
DECAL
|
CAS
- notice, 12 volt
|
| 15. |
700710307
|
[1] |
BULB
|
IH
- 12 volt
|
| 16. |
700707759
|
[1] |
INDICATOR
|
IH
LIGHT - indicator, amber (Includes item 15)
|
| 17. |
700707458
|
[1] |
INDICATOR
|
IH
LIGHT - indicator, green
|
| 18. |
700707459
|
[2] |
INDICATOR
|
IH
LIGHT - indicator, amber
|
| 19. |
700704212
|
[2] |
SELF-TAP SCREW
|
CAS
#4-40 x 3/8 SPHTFTS
|
| 20. |
700711920
|
[1] |
DECAL
|
CAS
- control box
|
| 21. |
700126930
|
[1] |
CONTROL
|
CAS
BOX ASSEMBLY COMPLETE
|
| 22. |
701607
|
[6] |
BRACKET
|
CAS
1/4-20 x 1/2 HWHTCTS Superseded by part number: 281-1478, 281-1478, NLS
|
| 23. |
700116147
|
[1] |
COVER
|
HFI
- control box
|
| 24. |
041277
|
[1] |
SOCKET - mounting
|
|
| 25. |
700701068
|
[2] |
SCREW
|
CAS
5/16-18 x 1/2 CRPHMS Superseded by part number: 1270468C1
|
| 26. |
231-5145
|
[4] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
5/16-18 HFSLN Superseded by part number: 72187067, 145458
|
| 27. |
6866081
|
[1] |
BRACKET
|
CAS
SPADE - socket
|
| 28. |
7883325
|
[2] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M
|
CAS
5/16-18 x 3/4 HWHMS Superseded by part number: 121-115
|
