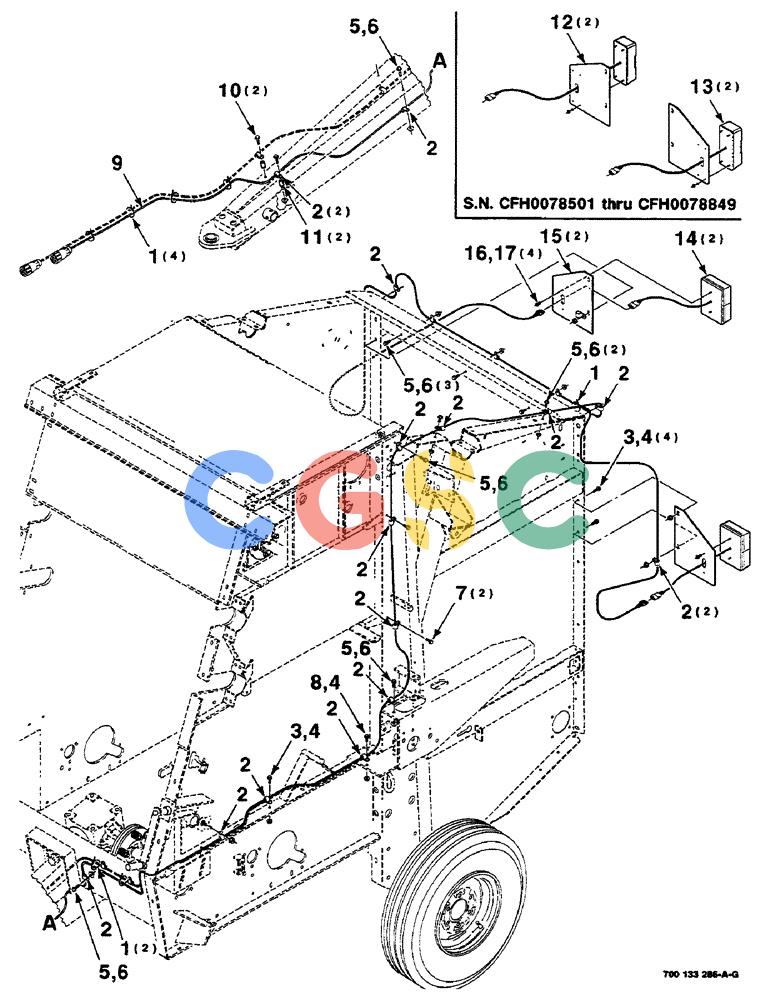

凯斯零件查询(8455) - CASE IH ROUND BALER (STANDARD) (1/92-12/99) (4-06) - TAIL LIGHT ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
643 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
L18337
|
[7] |
CABLE TIE,9.95"-12.1" lg
|
CAS
STRAP - tie, 15 inch, nylon Superseded by part number: 529070
|
| 2. |
515-2395
|
[17] |
CLAMP,3/8", Insul, 3/8" Bolt
|
CAS
Line 3/8", Insul, 3/8" Bolt Superseded by part number: 86572009
|
| 3. |
409-7612
|
[5] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 x 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 4. |
231-5146
|
[6] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 5. |
121-115
|
[9] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 6. |
232-5315
|
[9] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN
|
| 7. |
172463
|
[2] |
SELF-TAP SCREW,Hex Hd, 5/16" x 1"
|
CAS
5/16-18 x 3/4 HWHTCTS
|
| 8. |
121-226
|
[1] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 9. |
700715351
|
[1] |
HARNESS
|
CAS
- wire
|
| 10. |
73528
|
[2] |
SELF-TAP SCREW
|
CAS
3/8-16 x 1-1/2 HWHTCTS
|
| 11. |
568395R1
|
[2] |
SPACER,5/8" Tube x 5/8"
|
IH
Superseded by part number: 567987R1
|
| 12. |
700131900
|
[2] |
PLATE
|
HFI
- light (S.N. CFH0078501 thru CFH0078849)
|
| 13. |
700714721
|
[2] |
LAMP
|
CAS
LIGHT - tail (S.N. CFH0078501 thru CFH0078849)
|
| 14. |
700716461
|
[2] |
TAIL LAMP
|
CAS
LIGHT - tail (S.N. CFH0078850 and later)
|
| 15. |
700147097
|
[2] |
PLATE
|
HFI
- light (S.N. CFH0078850 and later)
|
| 16. |
7774078
|
[4] |
NUT
|
CAS
M8 x 0.8 H Superseded by part number: 10788811
|
| 17. |
492-11010
|
[4] |
LOCK WASHER,#10
|
CAS
WASHER, LOCK, #10 Superseded by part number: 80684
|
