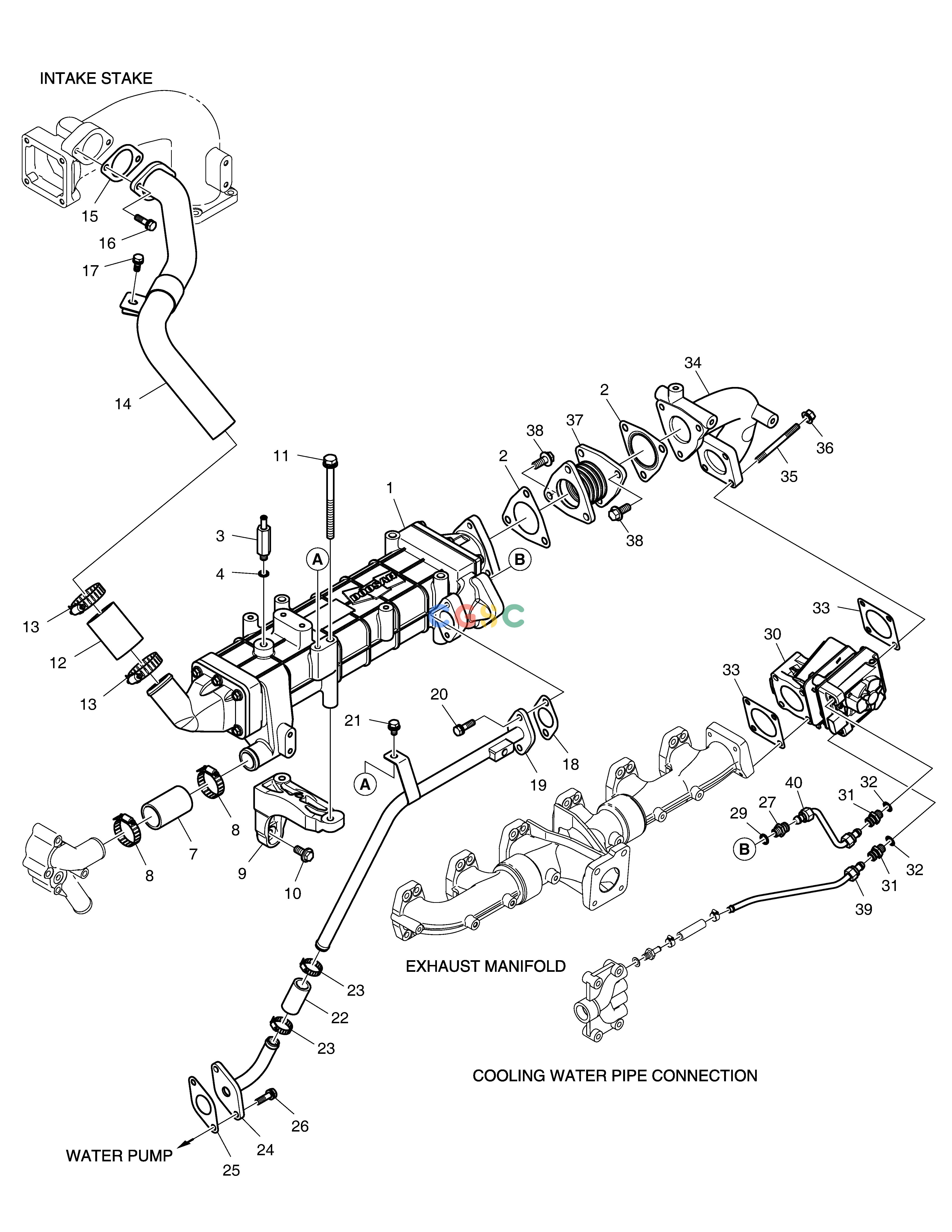

斗山零件查询EGR DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
999 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
400202-00004D
|
[1] |
|
|
| 10. |
65.90020-0145
|
[4] |
BOLT;COLLARED HEX.
|
|
| 11. |
06.01923-3235
|
[4] |
BOLT ASS'Y M10X140
|
|
| 12. |
420406-00168
|
[1] |
|
|
| 13. |
06.67020-0108
|
[2] |
CLAMP;HOSE
|
|
| 14. |
420203-00042B
|
[1] |
|
|
| 15. |
400602-00136
|
[1] |
|
|
| 16. |
06.01923-3117
|
[2] |
. BOLT ASS`Y M8X30
|
|
| 17. |
06.01923-3113
|
[1] |
BOLT ASS`Y M8X20
|
|
| 18. |
400631-00002
|
[1] |
|
|
| 19. |
420211-00135B
|
[1] |
|
|
| 2. |
400620-00003
|
[2] |
|
|
| 20. |
06.01913-3115
|
[2] |
BOLT ASS`Y M8X25
|
|
| 21. |
06.01923-3111
|
[1] |
BOLT, M8X16
|
|
| 22. |
420109-00111A
|
[1] |
|
420109-00111B
|
| 22. |
420109-00111B
|
[1] |
|
|
| 23. |
06.67020-0104
|
[2] |
CLAMP;HOSE
|
120202-00378
|
| 23. |
120202-00378
|
[2] |
|
|
| 24. |
420211-00134B
|
[1] |
|
|
| 25. |
400631-00004
|
[1] |
|
|
| 26. |
06.01913-3115
|
[2] |
BOLT ASS`Y M8X25
|
|
| 27. |
430201-00091
|
[1] |
|
|
| 29. |
06.56190-0703
|
[1] |
RING;SEAL
|
|
| 3. |
430201-00331
|
[1] |
|
|
| 30. |
410116-00164B
|
[1] |
|
410116-00164C
|
| 30. |
410116-00164D
|
[1] |
|
|
| 30. |
410116-00164C
|
[1] |
|
410116-00164D
|
| 31. |
430201-00091
|
[2] |
|
|
| 32. |
06.56190-0703
|
[2] |
RING;SEAL
|
|
| 33. |
400620-00002
|
[2] |
|
|
| 34. |
420203-00067
|
[1] |
|
|
| 34. |
420203-00067A
|
[1] |
|
|
| 35. |
120117-00005
|
[4] |
|
|
| 36. |
65.90535-0003
|
[4] |
NUT
|
|
| 37. |
420203-00060A
|
[1] |
|
|
| 38. |
120106-00270
|
[6] |
|
|
| 39. |
420211-00055
|
[1] |
|
420211-00055B
|
| 39. |
420211-00055B
|
[1] |
|
|
| 4. |
06.56180-0714
|
[1] |
RING;SEAL
|
|
| 40. |
420211-00115B
|
[1] |
|
|
| 40. |
420211-00115A
|
[1] |
|
420211-00115B
|
| 7. |
420109-00147A
|
[1] |
|
|
| 7. |
420109-00147
|
[1] |
|
420109-00147A
|
| 8. |
120202-00380
|
[2] |
|
|
| 8. |
06.67020-0106
|
[2] |
CLAMP;HOSE
|
120202-00380
|
| 9. |
110411-00015A
|
[2] |
|
|
