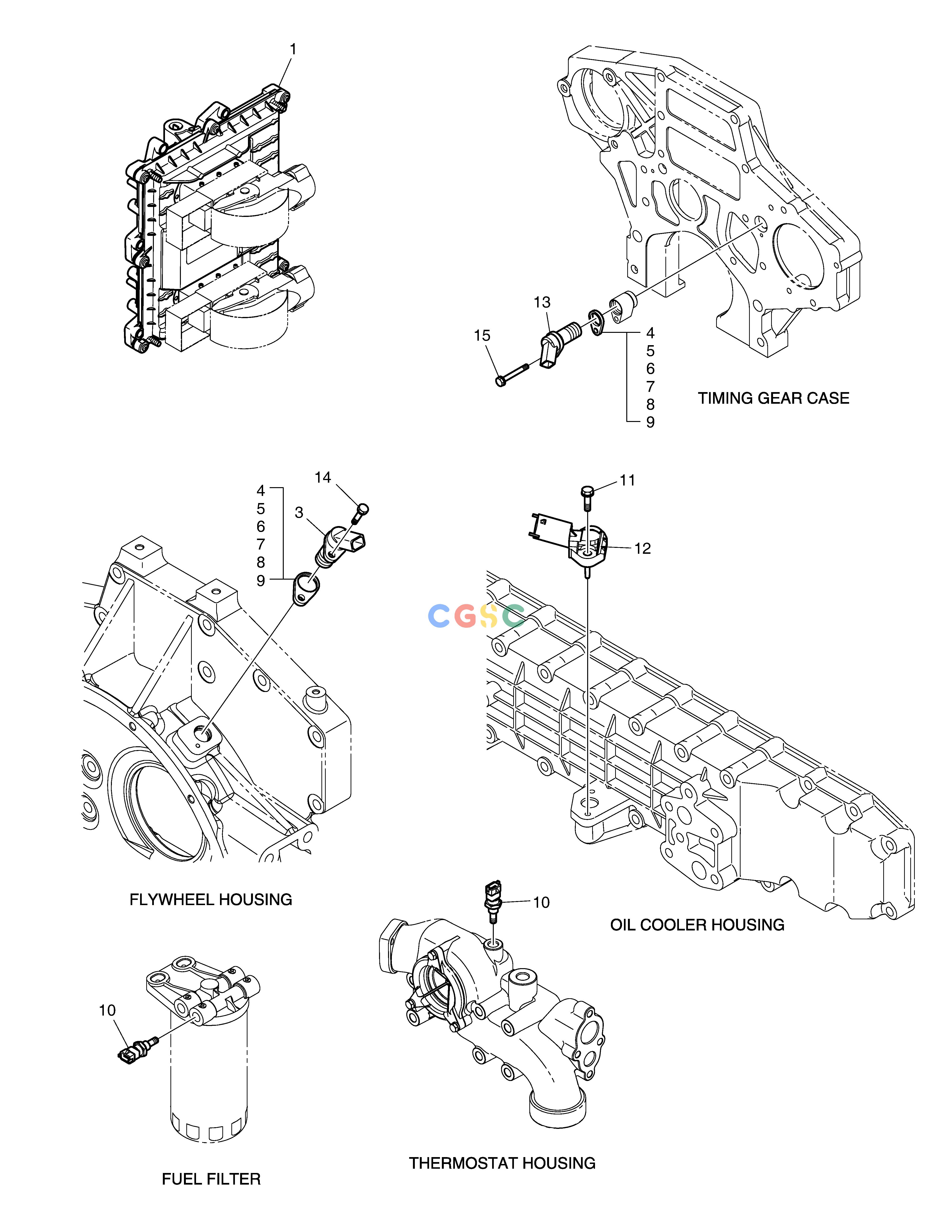

斗山零件查询ENGINE CONTROL UNIT DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
311 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
970301-00577
|
[1] |
|
|
| 10. |
65.27423-7003
|
[2] |
SENSOR;TEMP
|
|
| 11. |
06.01923-2913
|
[2] |
BOLT ASS`Y M6X20
|
|
| 12. |
65.27427-7001
|
[1] |
SENSOR;OIL PRESSURE
|
|
| 13. |
65.27103-7014
|
[1] |
SENSOR;CRANK CAM SPEED
|
|
| 14. |
06.01923-2913
|
[1] |
BOLT ASS`Y M6X20
|
|
| 15. |
06.01923-2919
|
[1] |
BOLT ASS`Y M6X40
|
|
| 3. |
65.27103-7014
|
[1] |
SENSOR;CRANK CAM SPEED
|
|
| 4. |
65.11308-0005
|
[2] |
SHIM
|
|
| 5. |
65.11308-0006
|
[2] |
SHIM
|
|
| 6. |
65.11308-0007
|
[2] |
SHIM
|
|
| 7. |
65.11308-0008
|
[2] |
SHIM
|
|
| 8. |
65.11308-0009
|
[2] |
SHIM
|
|
| 9. |
65.11308-0018
|
[2] |
SHIM
|
|
