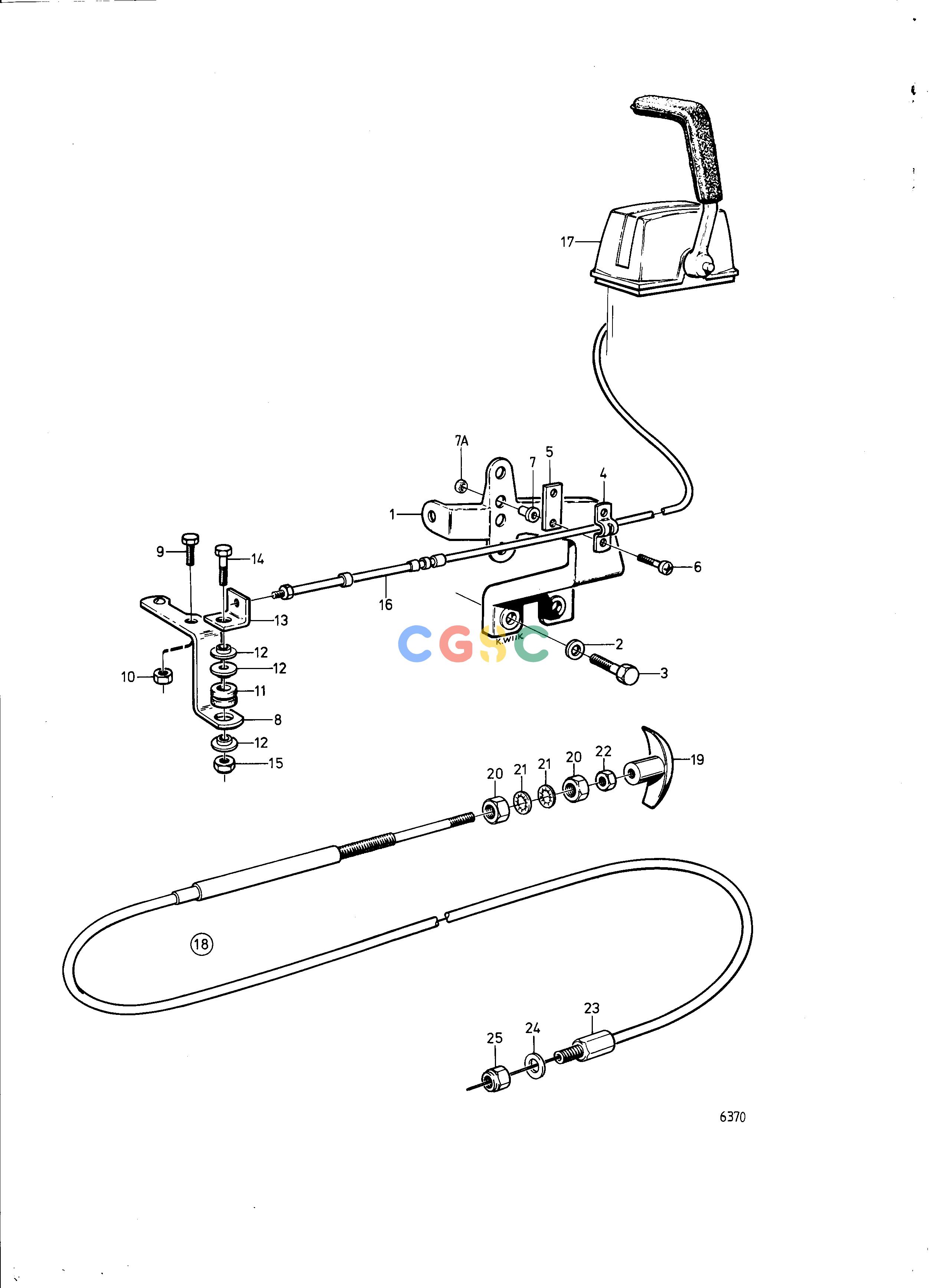

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30ControlsEngine Speed Control and Stop ControlEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
549 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
842996
|
[1] |
Bracket
|
|
| 2. |
960148
|
[2] |
Washer
|
See group 2C
|
| 3. |
955318
|
[2] |
Hexagon screw
|
See group 2C
|
| 4. |
21471054
|
[1] |
Bracket
|
|
| 5. |
819068
|
[1] |
Washer
|
|
| 6. |
956079
|
[2] |
Cross recessed screw
|
|
| 7. |
843108
|
[2] |
Bushing
|
|
| 7A. |
963104
|
[2] |
Lock nut
|
MO 28434-
|
| 8. |
843104
|
[1] |
Intermediate lever
|
|
| 9. |
955270
|
[1] |
Hexagon screw
|
|
| 10. |
946035
|
[1] |
Lock nut
|
|
| 11. |
843109
|
[1] |
Bushing
|
|
| 12. |
843105
|
[3] |
Spacer washer
|
|
| 13. |
843106
|
[1] |
Anchorage
|
|
| 14. |
955274
|
[1] |
Hexagon screw
|
|
| 15. |
946035
|
[1] |
Lock nut
|
|
| 16. |
|
|
|
See group 9
|
| 17. |
|
|
|
See group 9
|
| 18. |
818478
|
[1] |
Push pull control
|
L=3300mm
|
| 18. |
818470
|
[1] |
Push pull control
|
L=6900mm
|
| 19. |
829241
|
[1] |
Handle
|
|
| 20. |
955857
|
[2] |
Hexagon nut
|
|
| 21. |
955950
|
[2] |
Toothed washer
|
|
| 22. |
955844
|
[1] |
Hexagon nut
|
|
| 23. |
829070
|
[1] |
Cable lock
|
|
| 24. |
955894
|
[2] |
Washer
|
|
| 25. |
950363
|
[1] |
Lock nut
|
|
