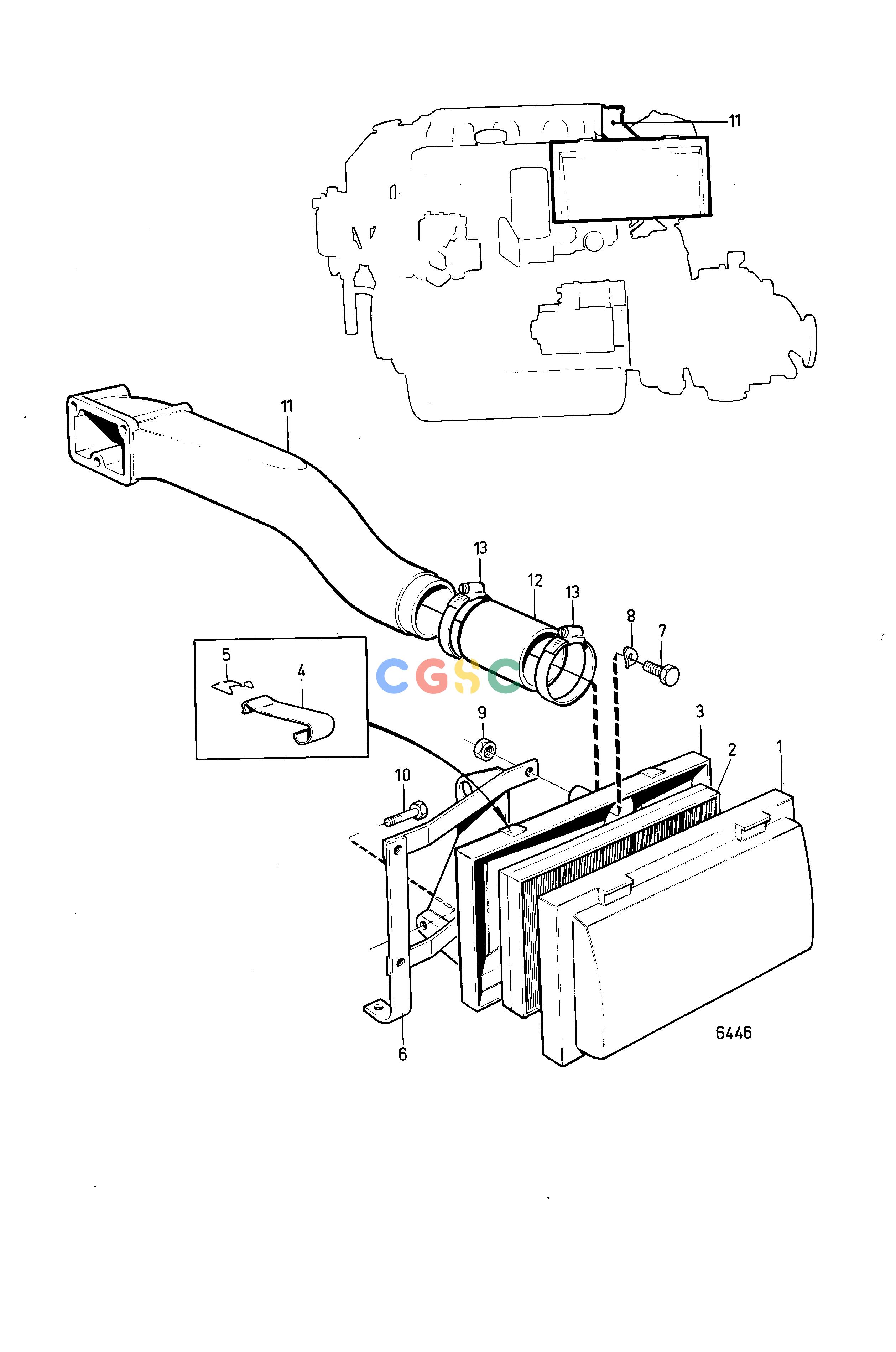

沃尔沃零件查询AD30A; AQAD30A; MD30A; TAMD30A; TMD30A; AD30; AQAD30; MD30; TAMD30; TMD30Cooling SystemAir Filter with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
350 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
842615
|
[1] |
Filter housing
|
|
| 2. |
463505
|
[1] |
Air filter insert
|
|
| 3. |
842680
|
[1] |
Filter housing
|
|
| 4. |
463908
|
[4] |
Clamp
|
|
| 5. |
673792
|
[4] |
Lock
|
|
| 6. |
844593
|
[1] |
Bracket
|
|
| 7. |
959224
|
[2] |
Hex. socket screw
|
L=45mm
|
| 7. |
959227
|
[2] |
Hex. socket screw
|
L=50mm
|
| 8. |
941907
|
[4] |
Spring washer
|
|
| 9. |
946036
|
[4] |
Lock nut
|
|
| 10. |
955317
|
[2] |
Hexagon screw
|
L=25mm
|
| 11. |
846029
|
[1] |
Connecting pipe
|
|
| 12. |
952983
|
[1] |
Hose
|
L=80mm
|
| 13. |
943480
|
[2] |
Hose clamp
|
|
