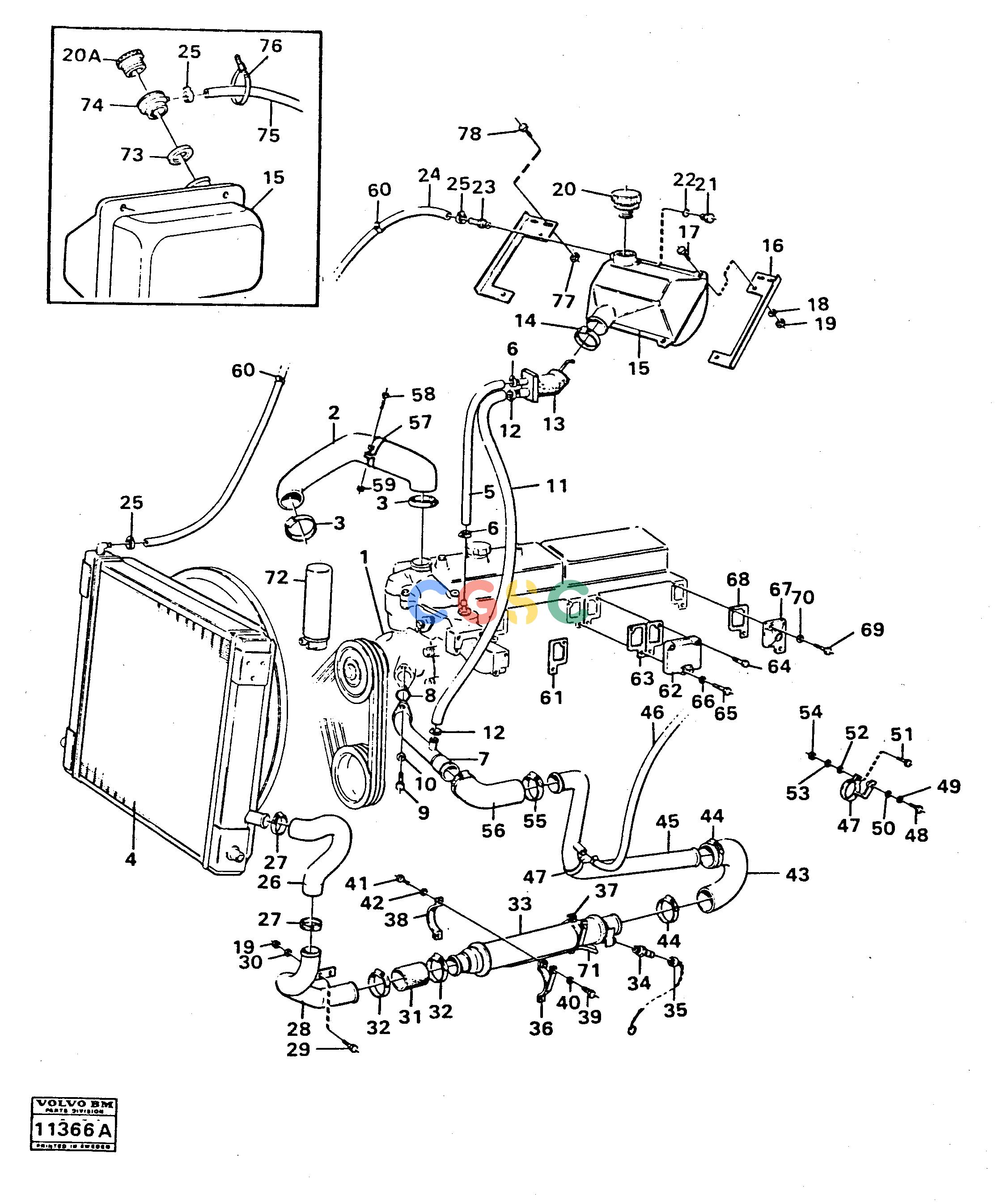

沃尔沃零件查询861 Cooling system861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
906 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE943367
|
[REQ] |
Hose
|
L= 300
|
| 47. |
VOE4773873
|
[0001] |
Anchorage
|
|
| 48. |
VOE940132
|
[0001] |
Hexagon screw
|
|
| 49. |
VOE13941907
|
[0001] |
Washer
|
|
| 50. |
VOE13960141
|
[0001] |
Washer
|
|
| 51. |
VOE955297
|
[0001] |
Hexagon screw
|
|
| |
VOE13945444
|
[0001] |
Screw
|
SER NO 58443-
|
| 52. |
VOE60110304
|
[0001] |
Washer
|
|
| 53. |
VOE13941907
|
[0001] |
Washer
|
SER NO -58442
|
| 54. |
VOE955782
|
[0001] |
Hexagon nut
|
SER NO -58442
|
| |
VOE13945408
|
[0001] |
Nut
|
SER NO 58443-
|
| 6. |
VOE943471
|
[2] |
Hose clamp
|
|
| 55. |
VOE943479
|
[0002] |
Hose clamp
|
|
| 56. |
VOE4773776
|
[0001] |
Hose
|
|
| 57. |
|
[0001] |
Clamp
|
|
| 58. |
VOE955270
|
[0001] |
Hexagon screw
|
|
| 59. |
VOE13963105
|
[0001] |
Lock nut
|
|
| 60. |
|
[0002] |
Clamp
|
|
| 61. |
VOE420160
|
[0001] |
Gasket
|
|
| 62. |
VOE421159
|
[0001] |
Water pipe
|
|
| 63. |
VOE424623
|
[0002] |
Gasket
|
|
| 64. |
VOE955537
|
[0002] |
Hexagon screw
|
|
| 7. |
VOE4773708
|
[1] |
Tube
|
|
| 65. |
VOE955539
|
[0002] |
Hexagon screw
|
|
| 66. |
VOE13942336
|
[0004] |
Spring washer
|
|
| 67. |
VOE421161
|
[0001] |
Cap
|
|
| 68. |
VOE424623
|
[0001] |
Gasket
|
|
| 69. |
VOE955535
|
[0002] |
Hexagon screw
|
|
| 70. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 71. |
|
[0002] |
Pipe
|
SEE GROUP 41
|
| 72. |
|
[0001] |
Oil cooler
|
|
| 73. |
VOE355165
|
[0001] |
Gasket
|
SER NO 57708-
|
| 74. |
VOE4804346
|
[0001] |
Collar
|
SER NO 57708-
|
| 8. |
VOE13960179
|
[1] |
O-ring
|
|
| 75. |
VOE944574
|
[REQ] |
Hose
|
L= 1500 SER NO 57708-
|
| 76. |
VOE4821292
|
[0004] |
Cable tie
|
SER NO 57708-
|
| 77. |
VOE13945408
|
[0004] |
Nut
|
|
| 78. |
VOE13945444
|
[0004] |
Screw
|
|
| |
VOE6630830
|
[0001] |
Repair kit
|
|
| 9. |
VOE13940135
|
[2] |
Screw
|
|
| 1. |
|
[1] |
Water pump
|
|
| 10. |
VOE13941907
|
[2] |
Washer
|
|
| 11. |
VOE4856263
|
[REQ] |
Radiator hose
|
L= 355
|
| 12. |
VOE943475
|
[2] |
Hose clamp
|
|
| 13. |
VOE6643311
|
[1] |
Hose coupling
|
|
| |
VOE4773902
|
[1] |
Connector
|
|
| 14. |
VOE943479
|
[2] |
Hose clamp
|
|
| 15. |
VOE475218
|
[0001] |
Expansion tank
|
|
| 16. |
VOE6648178
|
[0002] |
Control Arm
|
|
| 17. |
VOE955297
|
[0004] |
Hexagon screw
|
|
| 18. |
VOE13955894
|
[0016] |
Washer
|
|
| 19. |
VOE963106
|
[0004] |
Lock nut
|
|
| 2. |
VOE4773758
|
[1] |
Hose
|
|
| 20. |
VOE364826
|
[0001] |
Filler cap
|
|
| |
|
|
None
|
SER NO - 57707
|
| 20A. |
VOE350578
|
[0001] |
Cover
|
SER NO 57708-
|
| 21. |
VOE180723
|
[0001] |
Plug
|
|
| 22. |
VOE13955985
|
[0002] |
Sealing kit
|
|
| 23. |
VOE476349
|
[0001] |
Nipple
|
|
| 24. |
VOE943367
|
[REQ] |
Hose
|
L= 1230
|
| 25. |
VOE943471
|
[0002] |
Hose clamp
|
|
| 26. |
VOE4773768
|
[0001] |
Hose
|
|
| 27. |
VOE943479
|
[0002] |
Hose clamp
|
|
| 3. |
VOE943479
|
[2] |
Hose clamp
|
|
| 28. |
VOE6648182
|
[0001] |
Tube
|
|
| 29. |
VOE955297
|
[0002] |
Hexagon screw
|
|
| 30. |
VOE13955894
|
[0002] |
Washer
|
|
| 31. |
VOE4773869
|
[0001] |
Hose
|
|
| 32. |
VOE943479
|
[0002] |
Hose clamp
|
|
| 33. |
VOE4773790
|
[0001] |
Oil cooler
|
|
| 34. |
VOE13946121
|
[0001] |
Nipple
|
|
| 35. |
VOE11147580
|
[0001] |
Dust cover
|
|
| 36. |
VOE4774031
|
[0001] |
Anchorage
|
|
| 37. |
VOE4774032
|
[0001] |
Anchorage
|
|
| 4. |
|
[1] |
Radiator
|
|
| 38. |
VOE4773877
|
[0002] |
Clamp
|
|
| 39. |
VOE940142
|
[0002] |
Hexagon screw
|
|
| 40. |
VOE13941907
|
[0002] |
Washer
|
|
| 41. |
VOE940132
|
[0004] |
Hexagon screw
|
|
| 42. |
VOE13941907
|
[0004] |
Washer
|
|
| |
VOE925743
|
[0003] |
Washer
|
|
| 43. |
VOE4773770
|
[0001] |
Hose
|
|
| 44. |
VOE943479
|
[0002] |
Hose clamp
|
|
| 45. |
VOE4773871
|
[0001] |
Tube
|
|
| 46. |
|
[0001] |
Hose
|
SEE GROUP 83
|
