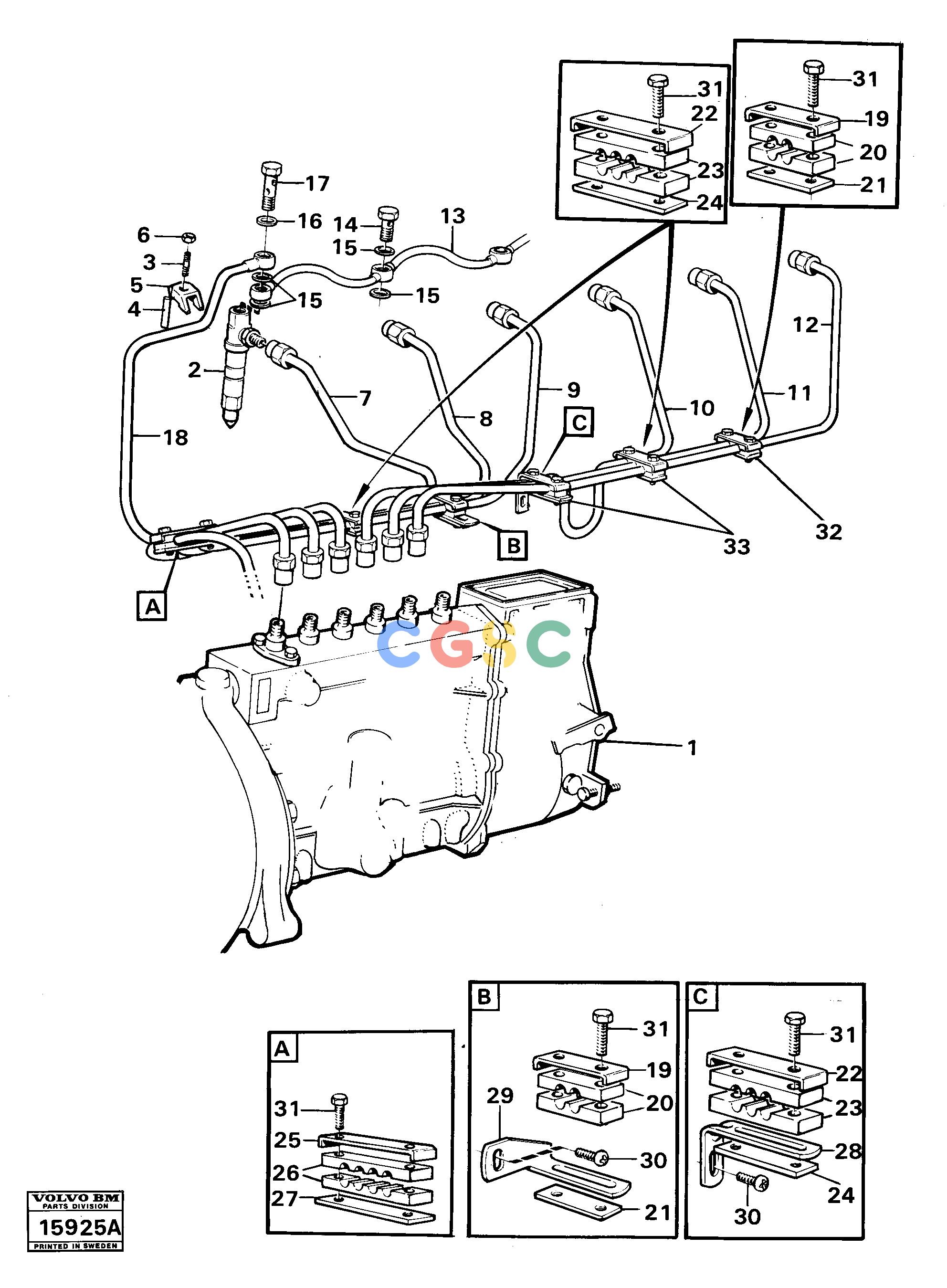

沃尔沃零件查询861 Fuel pipes, injectors861 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
895 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE469797
|
[0006] |
Nozzle retainer
|
|
| 6. |
VOE13971068
|
[0006] |
Hexagon nut
|
|
| 7. |
VOE465421
|
[0001] |
Delivery pipe
|
|
| |
VOE465651
|
[0001] |
Delivery pipe
|
|
| 8. |
VOE465422
|
[0001] |
Delivery pipe
|
|
| |
VOE465652
|
[0001] |
Delivery pipe
|
|
| 9. |
VOE465423
|
[0001] |
Delivery pipe
|
|
| |
VOE465653
|
[0001] |
Delivery pipe
|
|
| 1. |
|
[0001] |
Injcection pump
|
|
| 10. |
VOE465654
|
[0001] |
Delivery pipe
|
|
| |
VOE465654
|
[0001] |
Delivery pipe
|
|
| 11. |
VOE465655
|
[0001] |
Delivery pipe
|
|
| |
VOE465655
|
[0001] |
Delivery pipe
|
|
| 12. |
VOE465426
|
[0001] |
Delivery pipe
|
|
| |
VOE465656
|
[0001] |
Delivery pipe
|
|
| 13. |
VOE465437
|
[0001] |
Leak-off line
|
|
| 14. |
|
[0006] |
Hollow screw
|
|
| 15. |
|
[0012] |
Gasket
|
|
| 16. |
VOE957171
|
[0001] |
Gasket
|
|
| 17. |
VOE7074034
|
[0001] |
Hollow screw
|
|
| 18. |
VOE465398
|
[0001] |
Leak-off line
|
MO - 30537
|
| |
VOE844865
|
[0001] |
Leak-off line
|
MO 30538 -
|
| 19. |
VOE414344
|
[0002] |
Clamp
|
|
| 2. |
|
[0001] |
Injector
|
|
| 20. |
VOE414345
|
[0004] |
Spacer
|
|
| 21. |
VOE414736
|
[0002] |
Nut plate
|
|
| 22. |
VOE414346
|
[0003] |
Clamp
|
|
| 23. |
VOE414347
|
[0006] |
Washer
|
|
| 24. |
VOE414735
|
[0003] |
Nut plate
|
|
| 25. |
VOE465338
|
[0001] |
Clp Arm Plate
|
|
| 26. |
VOE414349
|
[0002] |
Rubber cushion
|
|
| 27. |
VOE7466034
|
[0001] |
Nut plate
|
|
| 28. |
VOE465739
|
[0001] |
Anchorage
|
|
| 29. |
VOE465563
|
[0001] |
Bracket
|
|
| 3. |
VOE466400
|
[0006] |
Stud
|
|
| 30. |
VOE950045
|
[0002] |
Cross recessed screw
|
|
| |
VOE950045
|
[0001] |
Cross recessed screw
|
|
| 31. |
VOE13955247
|
[0012] |
Screw
|
|
| 32. |
VOE8194351
|
[0001] |
Clamp
|
|
| 33. |
VOE8194352
|
[0004] |
Clamp
|
|
| 4. |
VOE466401
|
[0006] |
Pin
|
|
