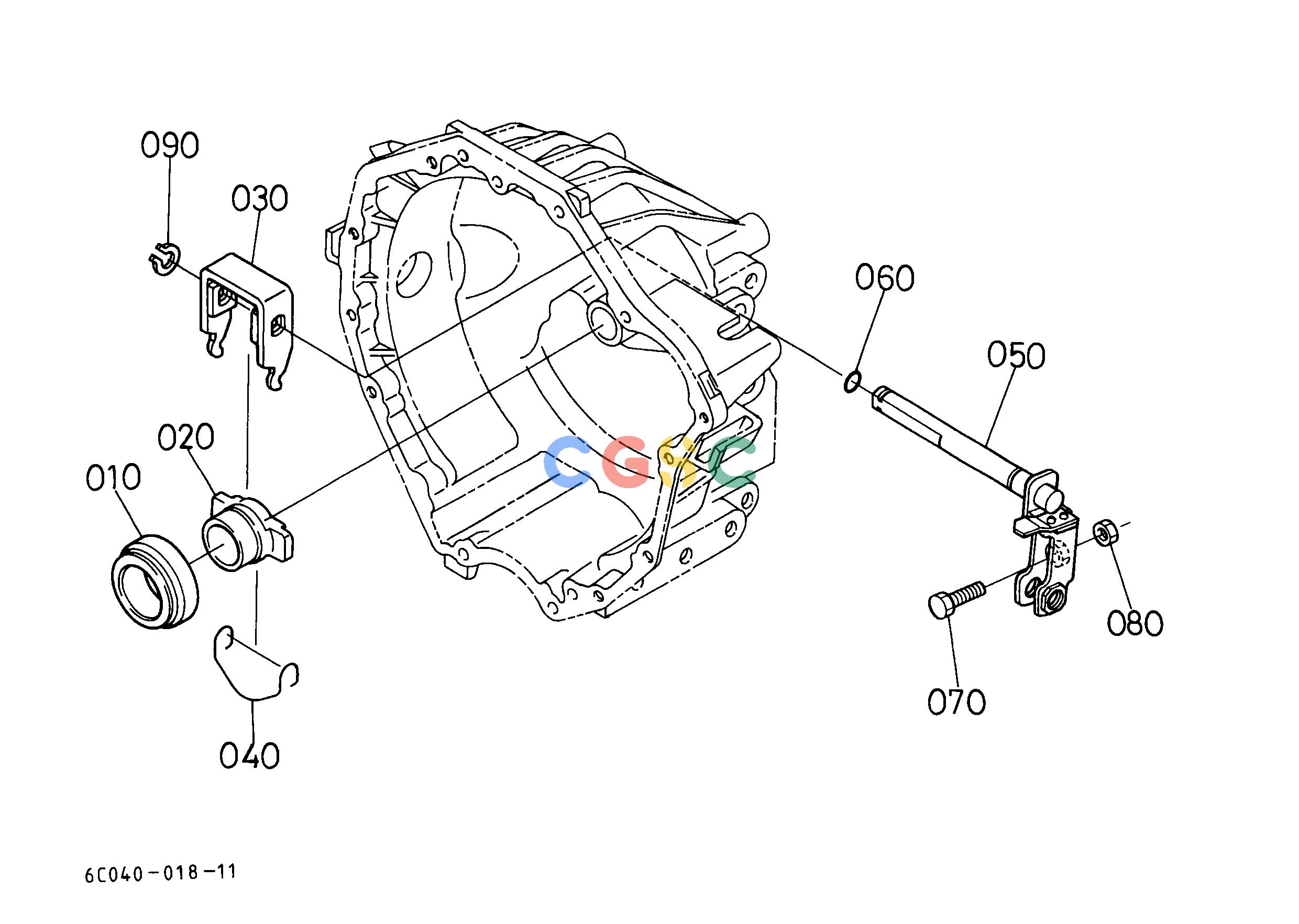

久保田零件查询C11000 CLUTCH ROD CLUTCHEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
570 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04013210
|
[1] |
BEARING,RELEASE
|
0.3454(lbs); 0.157
|
| 020. |
6C04013220
|
[1] |
HOLDER,BEARING
|
0.3124(lbs); 0.142
|
| 030. |
6C04013230
|
[1] |
FORK,CLUTCH RELEASE
|
0.4840(lbs); 0.220
|
| 040. |
6C04013240
|
[1] |
SPRING
|
0.0066(lbs); 0.003
|
| 050. |
6C04013251
|
[1] |
SHAFT,CLUTCH ROD
|
0.0000(lbs); 0.000
|
| 050. |
6C04013257
|
[1] |
SHAFT,CLUTCH ROD
|
0.0814(lbs); 0.037
|
| 060. |
0481110140
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 070. |
6671113320
|
[1] |
BOLT(ADJUSTING)
|
0.0616(lbs); 0.028
|
| 080. |
0211850100
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 090. |
0461200160
|
[1] |
CIR-CLIP, EXTERNAL
|
0.0022(lbs); 0.001
|
